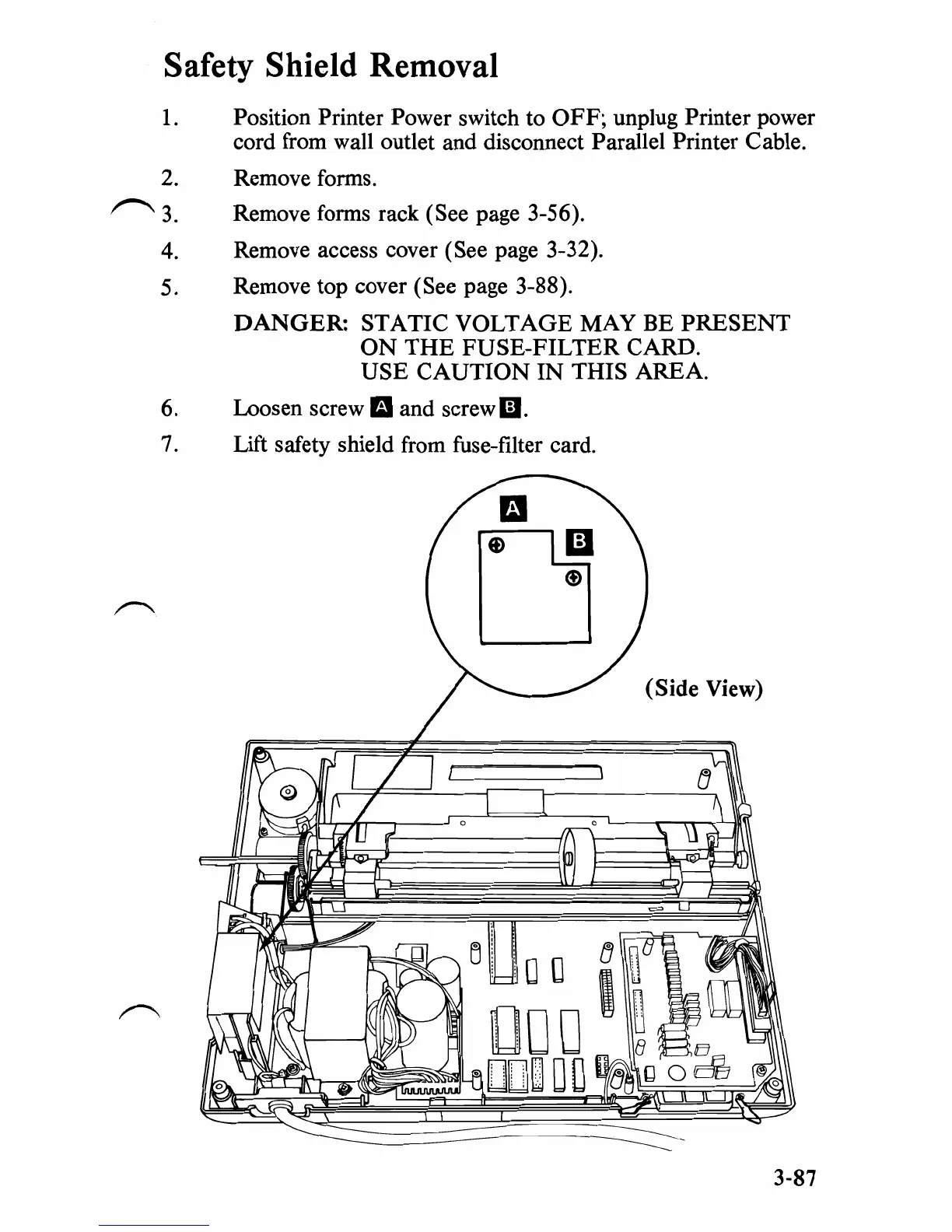

Safety Shield Removal
1.
Position Printer Power switch to OFF; unplug Printer power
cord
from
wall outlet and disconnect Parallel Printer Cable.
2.
Remove forms.
~3.
Remove
forms
rack (See page 3-56).
4.
Remove access cover (See page 3-32).
5.
Remove top cover (See page 3-88).
DANGER:
STATIC VOLTAGE MAY
BE
PRESENT
ON
THE
FUSE-FILTER CARD.
USE
CAUTION
IN
THIS AREA.
6.
Loosen screw
mand screw iii.
7.
Lift safety shield
from
fuse-filter card.
(Side View)
3-87
