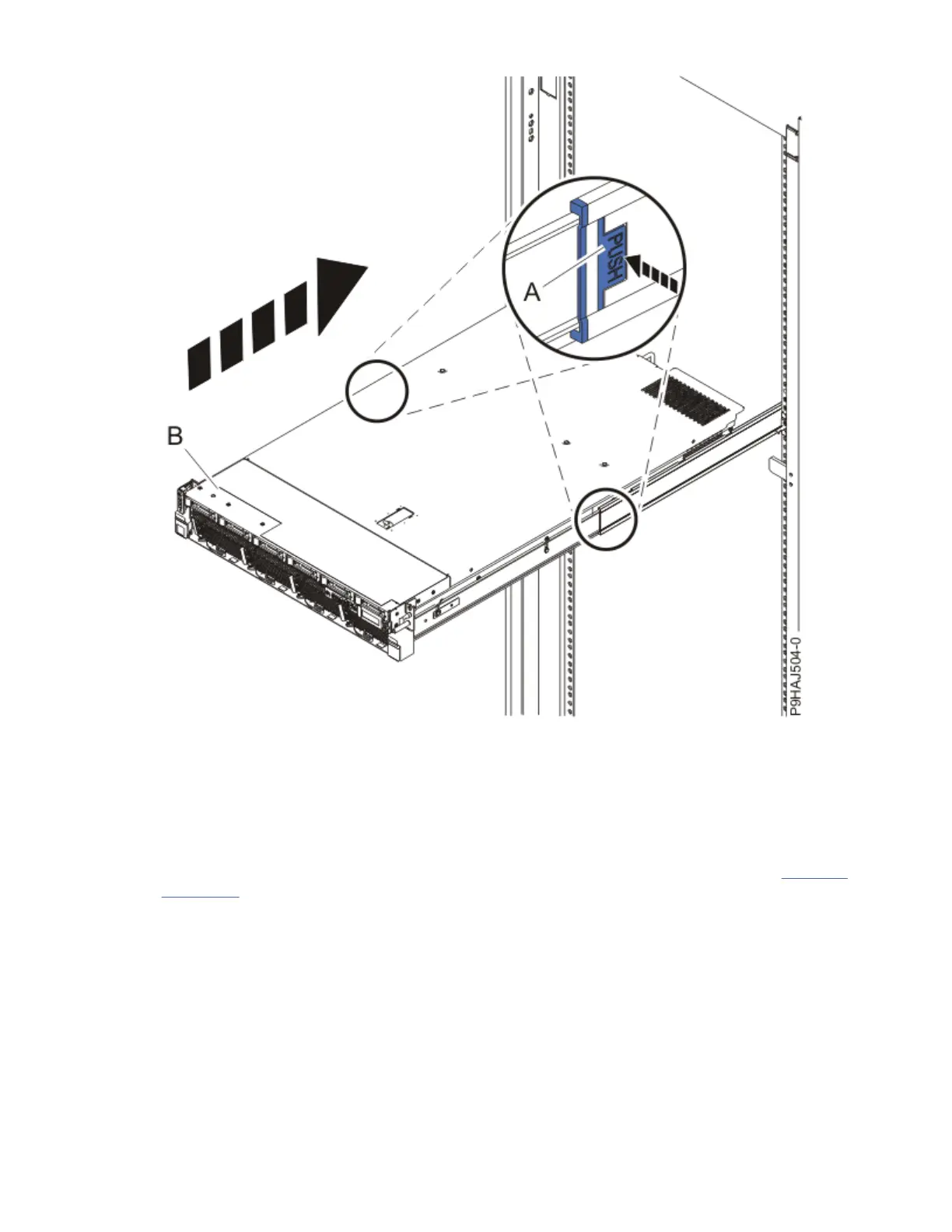

Figure 9. Service indicator LEDs
Removing the system backplane from the 5105-22E, 9008-22L, 9009-22A, 9009-22G,
9223-22H, or 9223-22S
Follow these steps to remove the system backplane from a server to replace a failing part or as part of
another service procedure.
Procedure
1. Ensure that you have the electrostatic discharge (ESD) wrist strap on and that the ESD clip is plugged
into a ground jack or connected to an unpainted metal surface. If not, do so now.
2. Lift each air baffle (A) straight up.
See Figure 10 on page 13.
Place air baffles upside down on a clean area. When you turn an air baffle over, hold the detachable
drive cover to prevent it from coming loose.
12
Power Systems: System backplane
