Icom IC-2GA Service Manual

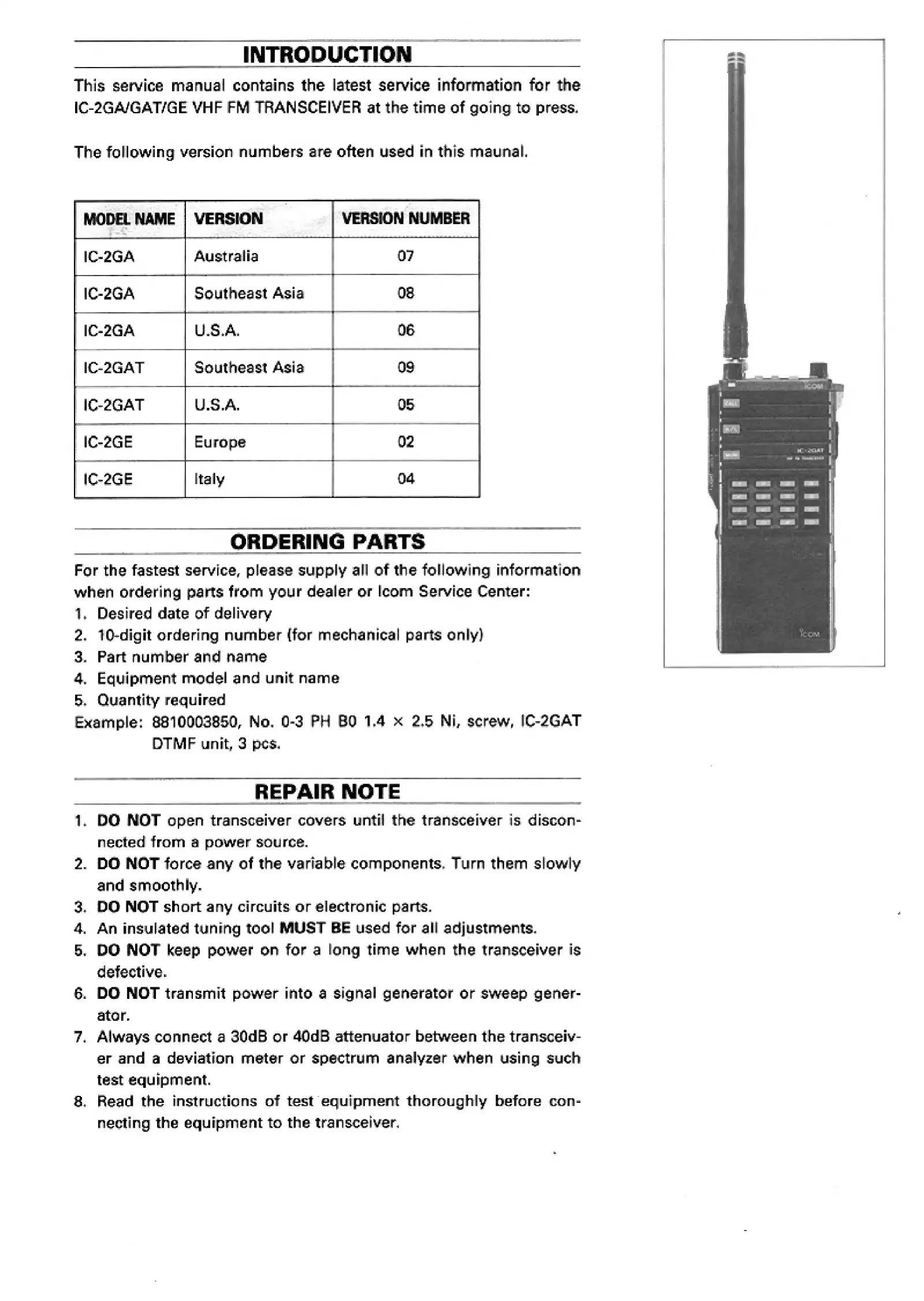

INTRODUCTION
This service manual contains the latest service information for the
IC-2GA/GAT/GE VHF FM TRANSCEIVER at the time of going to press.
The following version numbers are often used in this maunal.
Southeast Asia
== o ooo co m ње
ORDERING PARTS |
For the fastest service, please supply all of the following information
when ordering parts from your dealer or Icom Service Center:
+
пром а
+
Desired date of delivery
10-digit ordering number (for mechanical parts only)
Part number and name
Equipment model and unit name
Quantity required
Example:
8810003850,
No.
0-3
PH
B0
1.4
x
2.5
Ni,
screw,
IC-2GAT
m
ОТМЕ unit, 3 pcs.
=
REPAIR NOTE
==: rw-= кы.
. DO NOT open transceiver covers until the transceiver is discon-
nected from a power source.
DO NOT force any of the variable components. Turn them slowly
and smoothly.
DO NOT short any circuits or electronic parts.
An insulated tuning tool MUST BE used for all adjustments.
DO NOT keep power on for a long time when the transceiver is
defective.
DO NOT transmit power into a signal generator or sweep gener-
ator.
Always connect a 30dB or 40dB attenuator between the transceiv-
er and a deviation meter or spectrum analyzer when using such
test equipment.
Read the instructions of test equipment thoroughly before con-
necting the equipment to the transceiver.
