SUPPLIED ACCESSORIES AND ATTACHMENTS
D Battery pack

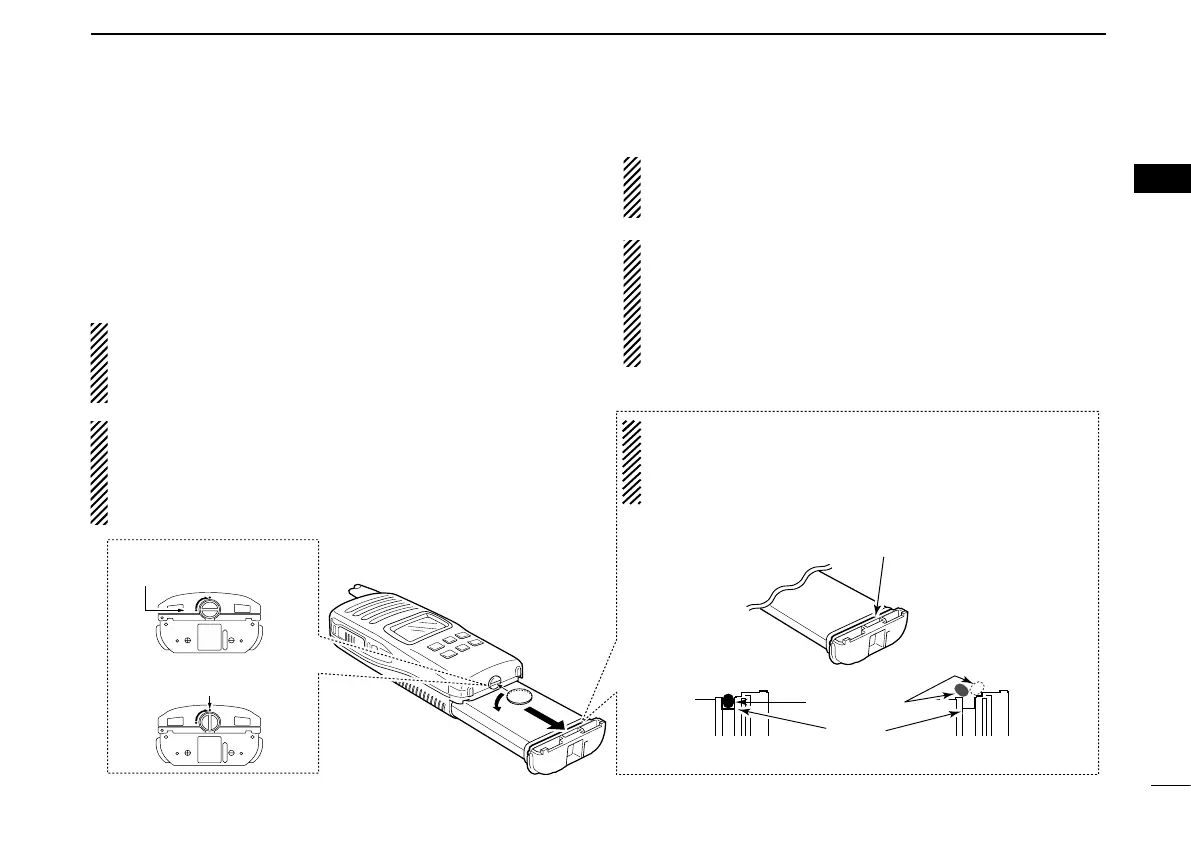

To remove the battery pack:
Turn the screw counterclockwise, then pull the battery pack
in the direction of the arrow as shown below.
To attach the battery pack:
Insert the battery pack in the IC-GM1600E completely, then
turn the screw clockwise.
NEVER remove or insert the battery pack when the
transceiver is wet or soiled. This may result water or dust
getting into the transceiver/the battery pack and may re
sult
in the transceiver being damaged.
NOTE: When removing or attaching the battery pack, use
a coin or flat-blade screwdriver to loosen or tighten the
bottom screw.
CAUTION:
When attaching or removing a battery pack, make sure
the rubber seal is set in the groove of the battery pack-
correctly. If the seal is not neatly in the groove it may be
damaged when attaching the battery pack.
If the seal is damaged, waterproofing is not guaranteed.
OPEN
LOCK
Screw position
when removing battery
Screw position
when attaching battery
OPEN
LOCK
Make sure both the rubber seal (purple) is set to the groove
correctly and dust or else does not adhere to it.
Battery pack
Battery pack
Rubber seal
Groove
Correct position
Incorrect position
NOTE:
When attaching a battery pack, make sure dust or else does
not adhere to the rubber seal. If dust or else is on the seal
when attaching a battery pack, the water resistant may be
reduced.
2
NOTE: When the lock screw does not easily (feels tight),
check to ensure the battery pack is sufficiently inserted to
the transceiver.
DO NOT bang or cause high impact to
the battery pack, as this may damage the battery pack/or
the transceiver.
