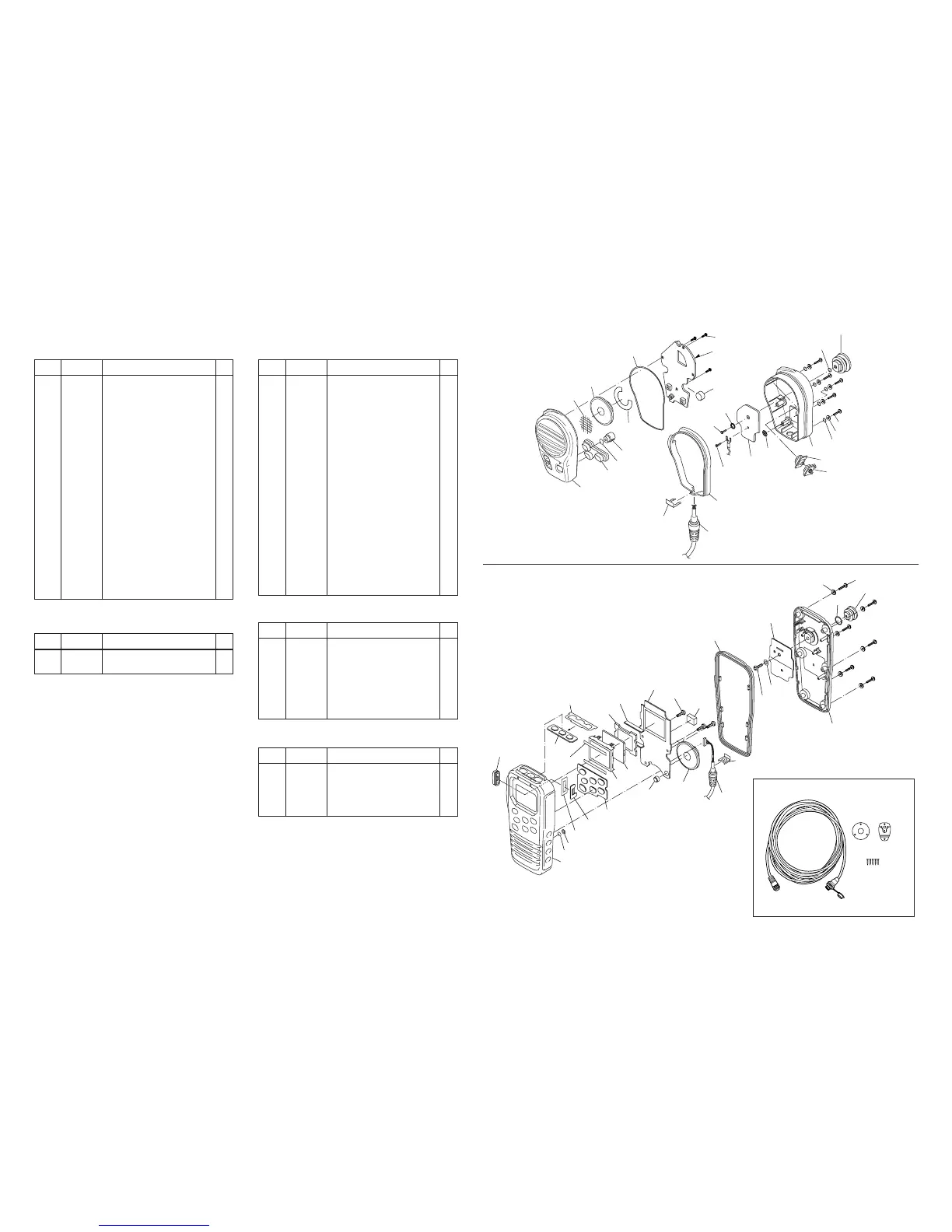

Icom IC-M601 Service Manual

7 - 3
MP24 (C)
MP6 (C)
MP23 (C)
MP3 (C)
MP7 (C)
MP10 (C)
MP16 (C)
MP20 (C)
W1 (C)
MP19 (C)
MP11 (C)
MC1 (M)
MP4 (C)
MP12 (C)
MP13 (C)
MP14 (C)
MP2 (C)
MP5 (C)
MP8 (C)
MP15 (C)
MP9 (C)
MP21 (C)
MP18 (C)
MAIN UNIT
MP1 (C)
SP1 (M)
MP17 (C)
MP4 (CH)
MP2 (M)
EP2 (M)
MP23 (CH)
MP11 (CH)
MP19 (CH)
MP14 (CH)
MP24 (CH)
MP17 (CH)
MP13 (CH)
MP7 (CH)
MP8 (CH)
MP5 (M)
MP1 (M)
DS1 (M)
MP10 (CH)
MP25 (CH)
MP5 (CH)
MP6 (CH)
MP3 (CH)
MC1 (M)
SP1 (CH)
MP1 (CH)
MAIN UNIT
W3 (CH)
MP12 (CH)
MP16 (CH)
MP21 (CH)
MP15 (CH)
MP20 (CH)
Unit abbreviations (CH): CHASSIS PARTS
(M): MAIN UNIT
MP3 MP1
MP2, MP4
W1
HM-134 ACCESSORIES
W1 8900011480 Cable OPC-1180 [BLACK] 1
8900011490 Cable OPC-1181 [WHITE] 1
MP1 8210017670 2352 front panel (B)-1 [BLACK] 1
8210019241 2352 front panel (G)-1 [WHITE] 1
MP2 8210016851 2352 rear panel-1 [BLACK] 1
8210019221 2352 rear panel (B)-1 [WHITE] 1
MP3 8930052160 2352 key 1
MP4 8930052150 2352 PTT rubber 1
MP5 8930052140 2352 PTT holder 1
MP6 8930052690 2352 mic rubber 1
MP7 8930052120 2352 rubber 1
MP8 8930052110 2352 main seal 1
MP9 8610010870 2352 hanger knob 1
MP10 8310048760 2352 R-plate 1
MP11 8310048780 2352 mic plate 1
MP12 8820001150 2352 screw 5
MP13 8850001850 ICOM washer (Y) 5
MP14 8930052340 O ring (AE) 5
MP15 8930052350 O ring (AF) 1
MP16 8930053870 2352 sheet (A) 1
MP17 8930053040 2352 SP net 1
MP18 8850001610 Spring washer M4 SUS 1
MP19 8810009260 Screw PH BT 2 × 6 NI 3
MP20 8810008900 Screw PH M3 × 6 NI 1
MP21 8810009240 Screw M4 × 10 ZK 1
MP23 8930053850 2352 SP rubber 1
MP24 8930058590 2589 A-mic sheet 1
[CHASSIS PARTS]
ORDER
NO.
REF.
NO.
DESCRIPTION QTY.
MC1 7700002120 Microphone KUC2123-030245 1
SP1 2510001092 Speaker 036D0801B 1
[MAIN UNIT]
ORDER
NO.
REF.
NO.
DESCRIPTION QTY.
Screw abbreviations BT: Self-tapping PH: Pan head
FH: Flat head ZK: Black
SUS: Stainless NI: Nickel
NI-ZU: Nickel-Zinc
7-2 HM-137
HM-137
HM-134
7-3 HM-134
W3 8900010970 Cable OPC-1118 1
SP1 2510001091 Speaker 036D0801A 1
MP1 8210018810 2417 front panel (B)-1 assembly 1
MP3 8930057220 2417 key board (A) 1
MP4 8930053540 2417 PTT rubber 1
MP5 8930053990 2417 PTT sheet 1
MP6 8930053550 2417 PTT holder 1
MP7 8930053520 2417 top key 1
MP8 8930053760 2417 key plate 1
MP10 8930039000 1757 sheet 1
MP11 8810009180 Screw FT BT M2 × 5 NI-ZU 3
MP12 8930053750 2417 plate 1
MP13 8210018900 2540 rear panel 1
MP14 8930057500 2540 R-plate 1
MP15 8610010980 2417 hanger knob 1
MP16 8930053740 O ring (AJ) 1
MP17 8810008450 Screw BiH M4 × 8 ZK 1
MP19 8930053530 2417 rubber 1
MP20 8820001180 2417 screw 2.6 × 16 6
MP21 8930053730 O ring (AI) 6
MP23 8930057550 Sheet (AG) TC-500TKC (10 × 5) 1
MP24 8850001870 Insulation washer (AD) 1
MP25 8930046000 1903 mic sponge 1
[CHASSIS PARTS]
ORDER
NO.
REF.
NO.
DESCRIPTION QTY.
DS1 5030001900 LCD A0119 (LCD 36 × 28.5) 1
EP2 8930051120 LCD contact SRCN-2320-SP-N-W 2
MC1 7700002480 Microphone SKB-2746 LPC 1
MP1 8930053780 2417 LCD holder 1
MP2 8210017240 2417 reflector 1
MP5 8930054890 Insulation plate (GM) 2
[MAIN UNIT]
ORDER
NO.
REF.
NO.
DESCRIPTION QTY.
W1 8900010280 Cable OPC-1000 1
MP1 8950005110 2289 mic hanger 1
MP2 8810004700 Screw PH A M3 × 16 SUS 2
MP3 8310050320 2417 C-plate 1
MP4 8810004700 Screw PH A M3 × 16 SUS 3
[ACCESSORIES]
ORDER
NO.
REF.
NO.
DESCRIPTION QTY.
