56
13
CONFECTION AND INSTALLATION
2001 NEW 2001 NEW

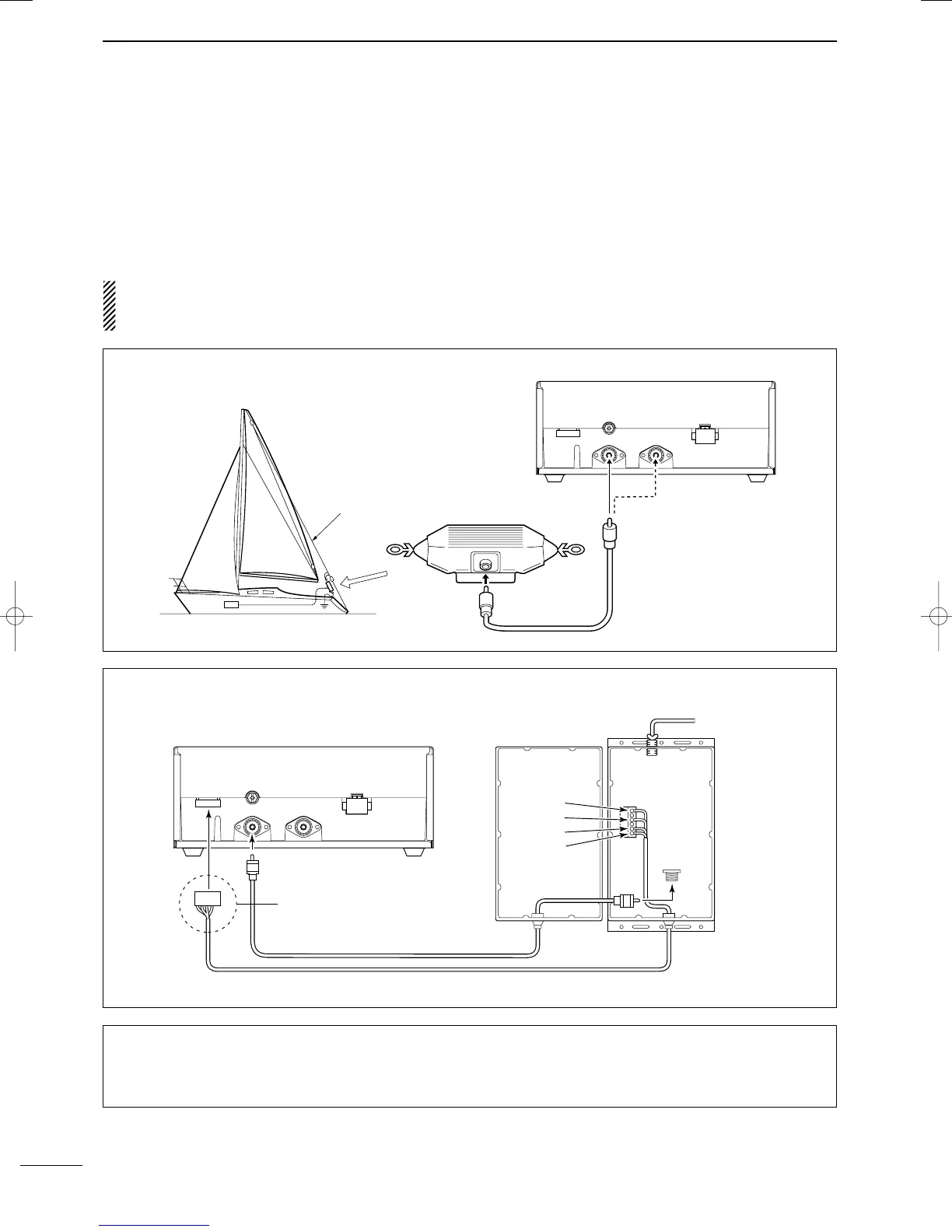

■ Antenna
Most stations operate with a whip or long wire (insu-
lated backstay) antenna. However, these antennas
cannot be connected directly to the transceiver since
their impedance may not be matched with the trans-
ceiver antenna connector.
R WARNING: HIGH VOLTAGE!
NEVER touch the antenna element/wire while tun-
ing or transmitting.
With a 50 Ω matched antenna all marine bands can-
not be used. The following antenna matcher or an-
tenna tuner may be helpful for antenna installation.
DD
MN-100/MN-100L
ANTENNA MATCHERS
Antenna wire
MN-100/MN-100L
When the antenna used
for DSC reception.
DD
AT-130/AT-130E
AUTOMATIC ANTENNA TUNER
[E]:
[13.6]:
[START]:
[KEY]:
to antenna element
Control cable (OPC-566 purchase separately)
Assemble the connector using
the supplied connector kit.
See page 61 for pin assignment.
DD
Non-Icom tuner
Some non-Icom tuners may be used with the IC-
M802. Please consult your dealer if you wish to con-
nect one.
DD
AT-140
AUTOMATIC ANTENNA TUNER
See page 54.
IC-M802_USA.qxd 02.5.30 11:40 Page 56
