Icom ID-50A User Manual

1
BASIC MANUAL
1
PANEL DESCRIPTION

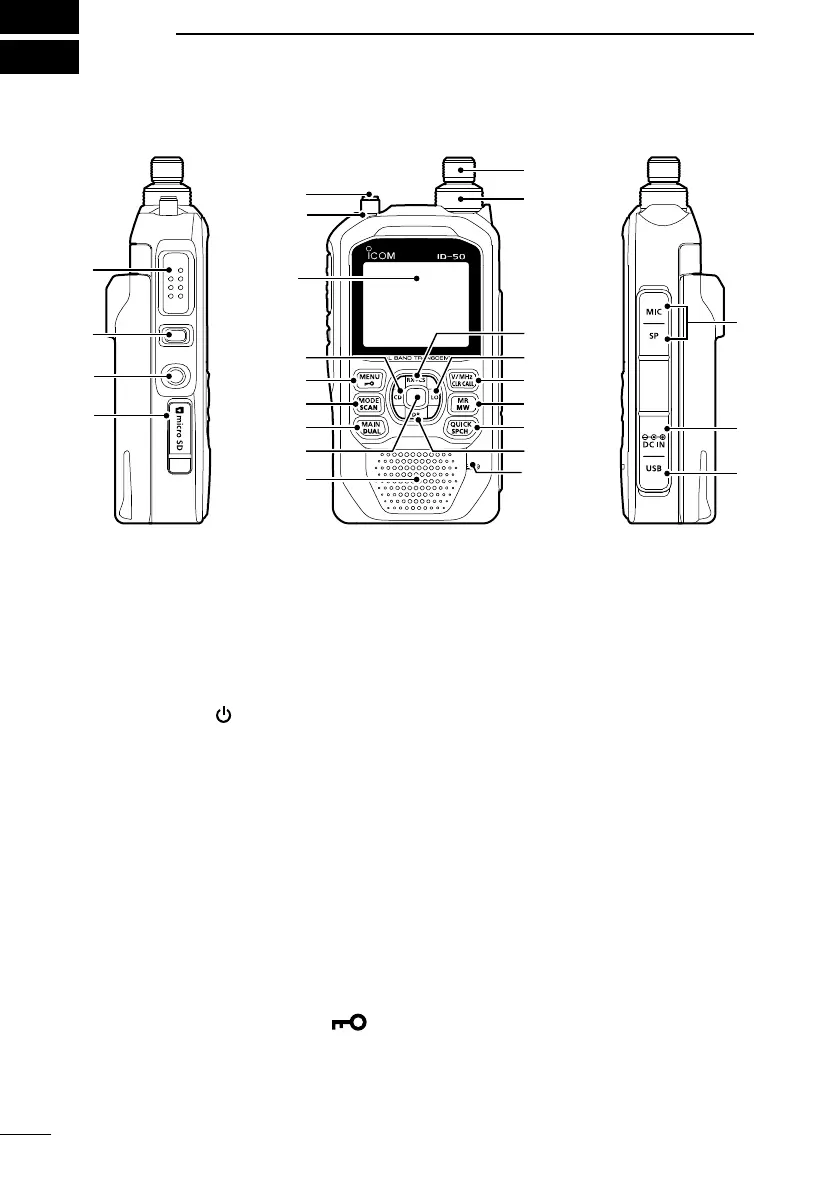

■ Front, top, and side panels
1PTT SWITCH [PTT]
Hold down to transmit, release to receive.
L For only the ID-50E
Push briey and release, and then hold down to transmit a 1750 Hz tone burst.
2SQUELCH KEY [SQL] (p. 12)
z While holding down, rotate [DIAL] to adjust the squelch level.
z Hold down to temporarily open the squelch and monitor the operating frequency.
3POWER KEY [
]
z Hold down for 1 second to turn the transceiver ON or OFF. (p. 7)
z When “Screen Capture [PWR] Key” is set to “ON,” push to capture the transceiver
display onto a microSD card. ([MENU] > SET > Function > Screen Capture [PWR] Key)
4microSD CARD SLOT [microSD]
Insert a microSD card (User supplied). (p. 7)
5ANTENNA CONNECTOR
Connect the supplied antenna.
6TX/RX INDICATOR
Lights red while transmitting.
Lights green while receiving a signal, or when the squelch is open.
7RX CALL SIGN DISPLAY • D-PAD (LEFT) KEY [CD]/D-pad()
z In the DV mode, hold down for 1 second to open the received call history. (p. 51)
z In the MENU screen, push to select an upper-tier menu. (p. 21)
8MENU • LOCK KEY [MENU]/[
]
z Push to open the MENU screen. (p. 21)
z Hold down for 1 second to turn the Lock function ON or OFF. (p. 20)
9MODE • SCAN KEY [MODE]/[SCAN]
z Push to select the operating mode. (p. 15)
z Hold down for 1 second to open the Scan Type Select window. (p. 17)
1
2
3
4
5
7
8
9

 










6
Function
Display
(p. 3)
Speaker
Internal
Microphone
