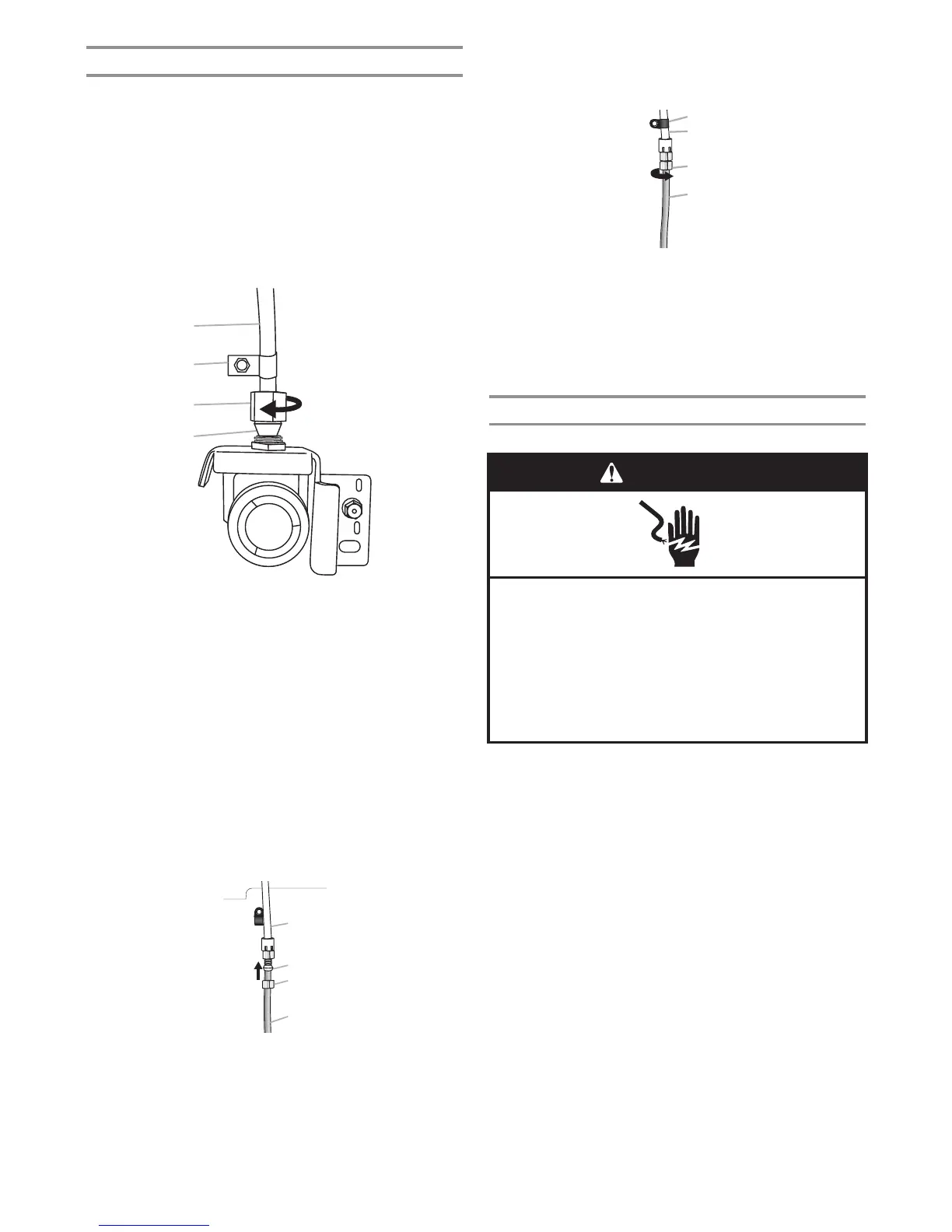

Connect to Refrigerator
Depending on your model, the water line may come down
from the top or up from the bottom. Follow the connection
instructions for your model.
Style 1
1. Remove plastic cap from water valve inlet port. Attach the
copper tube to the valve inlet using a compression nut
and sleeve as shown. Tighten the compression nut. Do not
overtighten. Conrm copper tubing is secure by pulling on
copper tubing.
2. Create a service loop with the copper tubing. Avoid kinks
when coiling the copper tubing. Secure copper tubing to
refrigerator cabinet with a “P” clamp.
3. Turn on water supply to refrigerator and check for leaks
Correct any leaks.
Style 2
1. Create a service loop (minimum diameter of 2 ft [61 cm])
with the copper tubing. Avoid kinks when coiling the copper
tubing.
2. Remove the plastic cap from water valve inlet port. Place a
compression nut and sleeve on the copper tubing.
3. Insert the end of the copper tubing into the water valve inlet
port. Shape tubing slightly so that the tubing feeds straight
into the port to avoid kinks.
4. Slide the compression nut over the sleeve and screw into
the water valve inlet port.
5. Using an adjustable wrench, hold the nut on the plastic
water line to keep it from moving. Then, with a second
wrench turn the compression nut on the copper tubing
counterclockwise to completely tighten. Do not overtighten.
6. Check connection by pulling on copper tubing. Attach
the plastic water line to the refrigerator cabinet with a “P”
clamp.
7. Turn on water supply to the refrigerator and check for leaks
Correct any leaks.
Complete the Installation
1. Plug into a grounded 3 prong outlet.
NOTE: Allow 24 hours to produce the rst batch of ice.
Discard the rst three batches of ice produced. Allow 3 days to
completely ll the ice storage bin.
B
A
C
D
A. Copper tubing
B. “P” clamp
C.Compression nut
D.Compression sleeve
B
A
C
D
A. Plastic water tubing
B. Sleeve
C.Compression nut
D.Copper tubing
B
C
D
A
A. “P” clamp
B. Plastic water line
C.Compression nut
D.Copper tubing
WARNING
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
