ENGLISH 16
To ret the door
1. Insert the hinges in their seats.
2. Open the door fully.
3. Lower the two catches.
4. Close the door

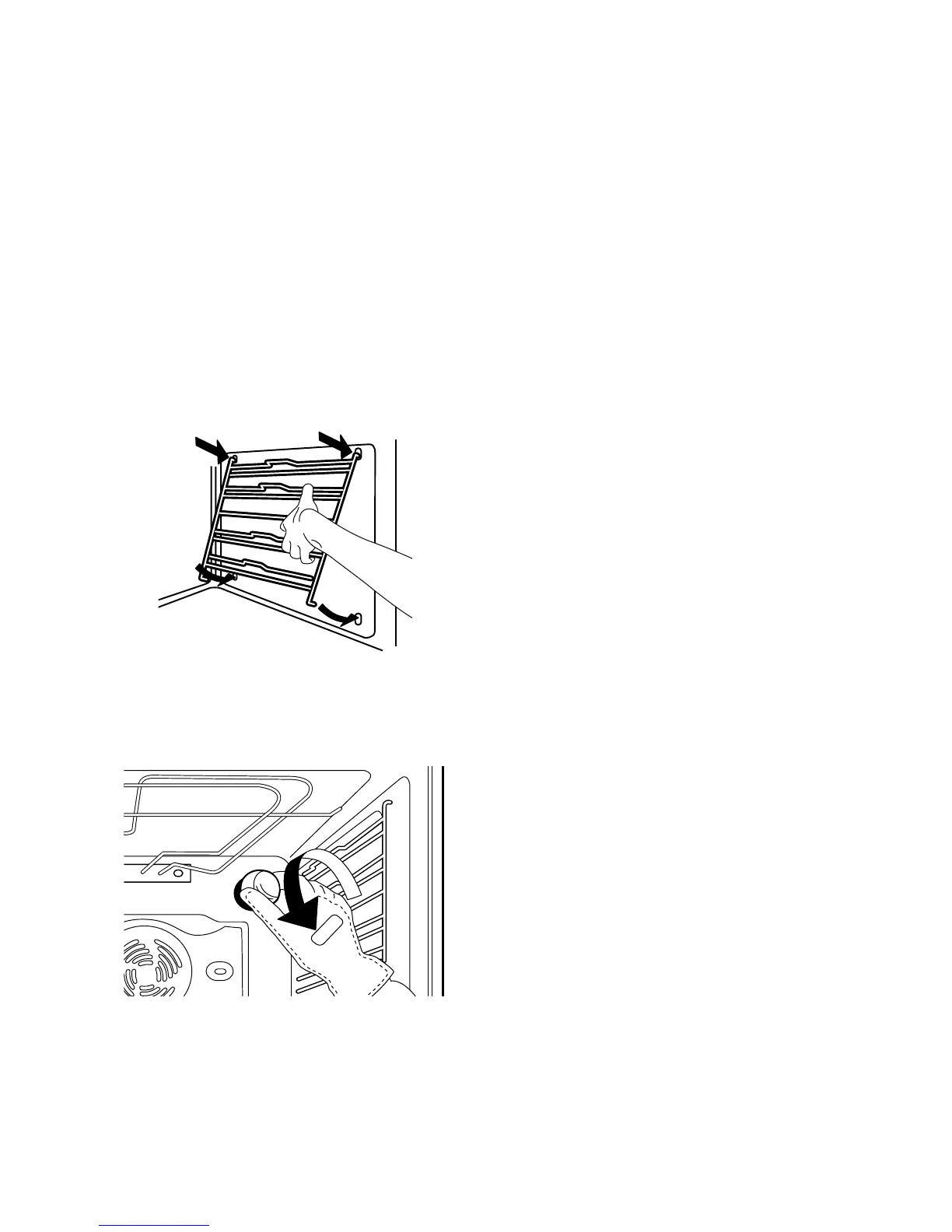

To remove lateral grids
Move the lateral grid upwards until the two
lower terminals are released, then rotate the
grid towards the center of the compartment.
To re-position the grid, perform the above
operations in reverse.
1
2
To replace the rear lamp
1. Disconnect the oven from the power
supply.
Fig. 5
2. Unscrew the lamp cover (Fig. 5), replace
the lamp (see note for lamp type) and
screw the lamp cover back on.
3. Reconnect the oven to the power supply.
NOTE:
- Only use 40W/230 V type G9, T300°C
halogen lamps.
- The lamp used in the appliance is
specically designed for electrical
appliances and it is not suitable for
household room illumination (Commission
Regulation (EC) No 244/2009).
- Lamps are available from IKEA
Authorized Service Centre.
