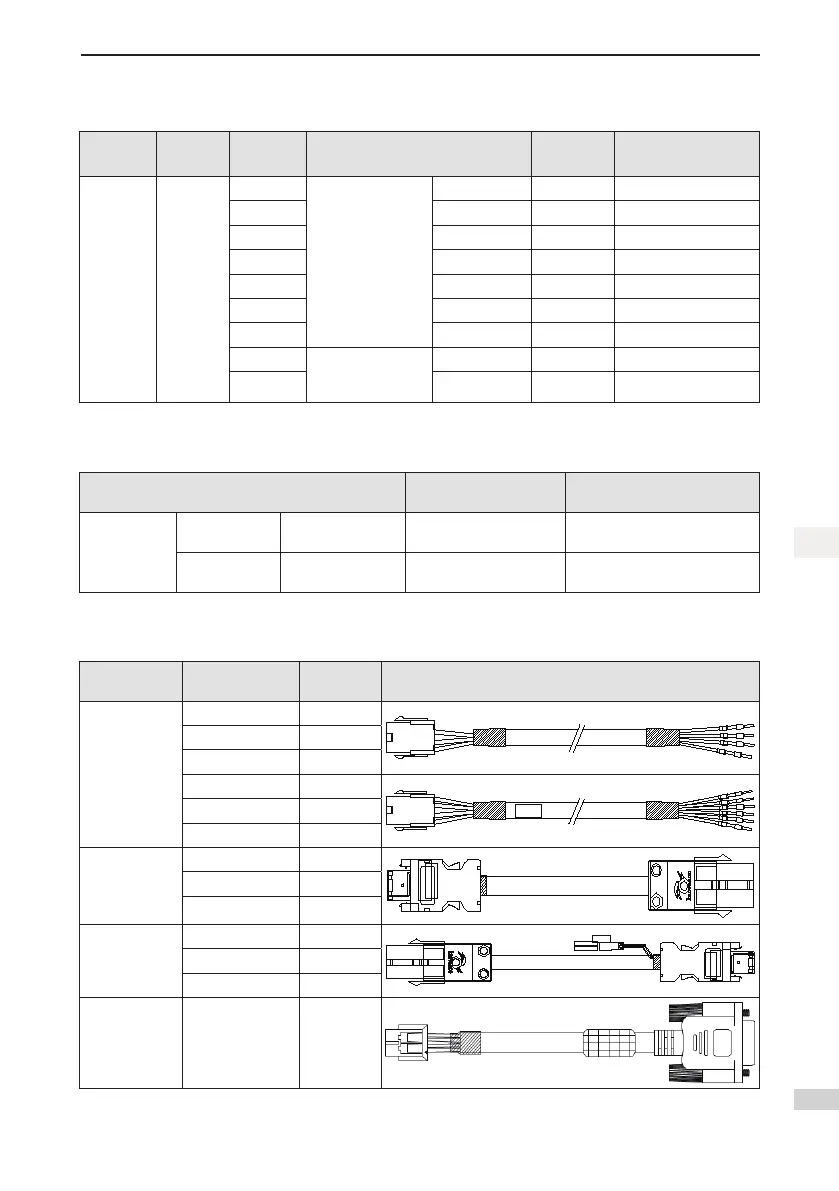

1 Servo System Selection
1
1.4 TableofServoSystemCongurationSpecications
Rated
Speed
Maximum
Speed
Capacity
Servo Motor Model
MS1H□-□□□□□□□-*****
Motor
Frame Size
Drive Unit Model
SV820N**□□□□
3,000
RPM
6,000
RPM
50 W
H1
(low inertia,
small capacity)
05B30CB 40 1A, 2A
100 W 10B30CB 40 1A, 2A
200 W 20B30CB 60 1B, 2B
400 W 40B30CB 60 1C, 2C
550 W 55B30CB 80 1D, 2D
750 W 75B30CB 80 1D, 2D
1,000 W 10C30CB 80 1E
400 W H4
(medium inertia,
small capacity)
40B30CB 60 1C, 2C
750 W 75B30CB 80 1D, 2D
1.5 BleederResistorSpecication
Servo Drive Model
Minimum Allowed
Resistance(Ω)
MaximumBrakingEnergy
Absorbed by Capacitor (J)
Single/Three-
phase 220 V
SV820*1S****
1kWpower
supply unit
40 31
SV820*2S****
2kWpower
supply unit
40 47
1.6 Cables
Cable Name Cable Size
L Length of
Cable (mm)
Cable Appearance Diagram
Servo motor
main circuit
cable
SV82-L-M00-3.0 3,000
V
U
W
PE
SV82-L-M00-5.0 5,000
SV82-L-M00-10.0 10,000
SV82-L-B00-3.0 3,000
V
W
PE
U
BK
-
BK
+
SV82-L-B00-5.0 5,000
SV82-L-B00-10.0 10,000
Cable for
incremental
encoder of the
servo motor
SV82-L-P10-3.0 3,000
S UNCHU
SC-06
SV82-L-P10-5.0 5,000
SV82-L-P10-10.0 10,000
Cable for
absolute
encoder of the
servo motor
SV82-L-P20-3.0 3,000
2 - Black
1 - Brown
End C
SUNCHU
SC-06
SV82-L-P20-5.0 5,000
SV82-L-P20-10.0 10,000
Servo to PC
communication
cable
S6N-L-T00-3.0 3,000
