8086

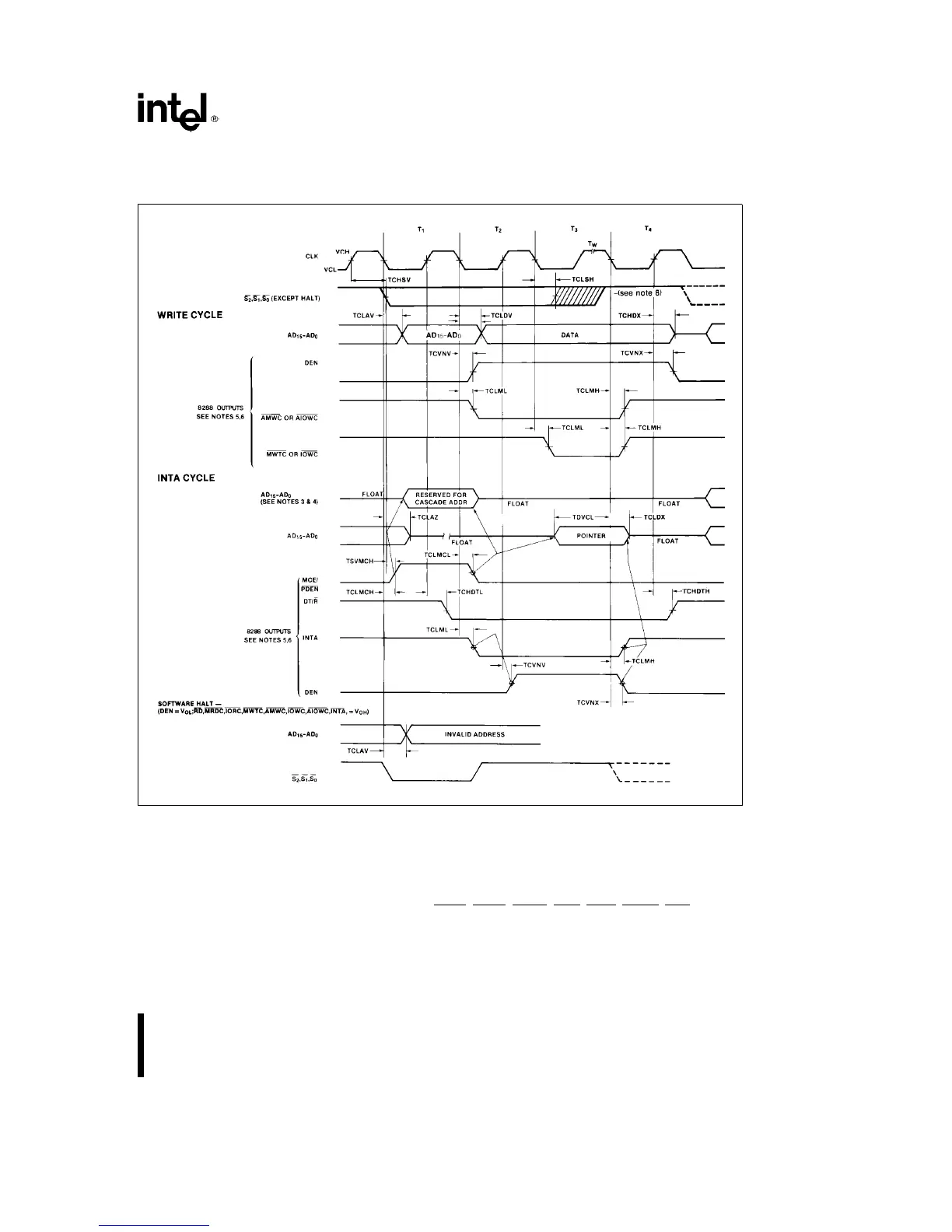

WAVEFORMS (Continued)
MAXIMUM MODE (Continued)
231455–16
NOTES:
1. All signals switch between V
OH
and V
OL
unless otherwise specified.
2. RDY is sampled near the end of T
2
,T
3
,T
W
to determine if T
W
machines states are to be inserted.
3. Cascade address is valid between first and second INTA cycle.
4. Two INTA cycles run back-to-back. The 8086 LOCAL ADDR/DATA BUS is floating during both INTA cycles. Control for
pointer address is shown for second INTA cycle.
5. Signals at 8284A or 8288 are shown for reference only.
6. The issuance of the 8288 command and control signals (MRDC
, MWTC, AMWC, IORC, IOWC, AIOWC, INTA and DEN)
lags the active high 8288 CEN.
7. All timing measurements are made at 1.5V unless otherwise noted.
8. Status inactive in state just prior to T
4
.
23

Intel 8086 Specifications

General

Architecture	x86
Clock Speed	5 MHz to 10 MHz
Data Width	16-bit
Address Bus Width	20-bit
Transistor Count	29, 000
Instruction Set	x86
Package	40-pin DIP
Microarchitecture	8086
Addressable Memory	1 MB
Manufacturing Process	3 μm
Voltage	+5V
Introduced	1978
Registers	14 registers (including segment registers)
