can occur between 8086 bus cycles. These are re-
ferred to as ‘‘Idle’’ states (T
i
) or inactive CLK cycles.
The processor uses these cycles for internal house-
keeping.
During T
1
of any bus cycle the ALE (Address Latch
Enable) signal is emitted (by either the processor or
the 8288 bus controller, depending on the MN/MX
strap). At the trailing edge of this pulse, a valid ad-
dress and certain status information for the cycle
may be latched.
Status bits S
0
,S
1
, and S
2
are used, in maximum
mode, by the bus controller to identify the type of
bus transaction according to the following table:
S
2
S
1
S
0
Characteristics
0 (LOW) 0 0 Interrupt Acknowledge
0 0 1 Read I/O
0 1 0 Write I/O
0 1 1 Halt
1 (HIGH) 0 0 Instruction Fetch
1 0 1 Read Data from Memory
1 1 0 Write Data to Memory
1 1 1 Passive (no bus cycle)
231455–8

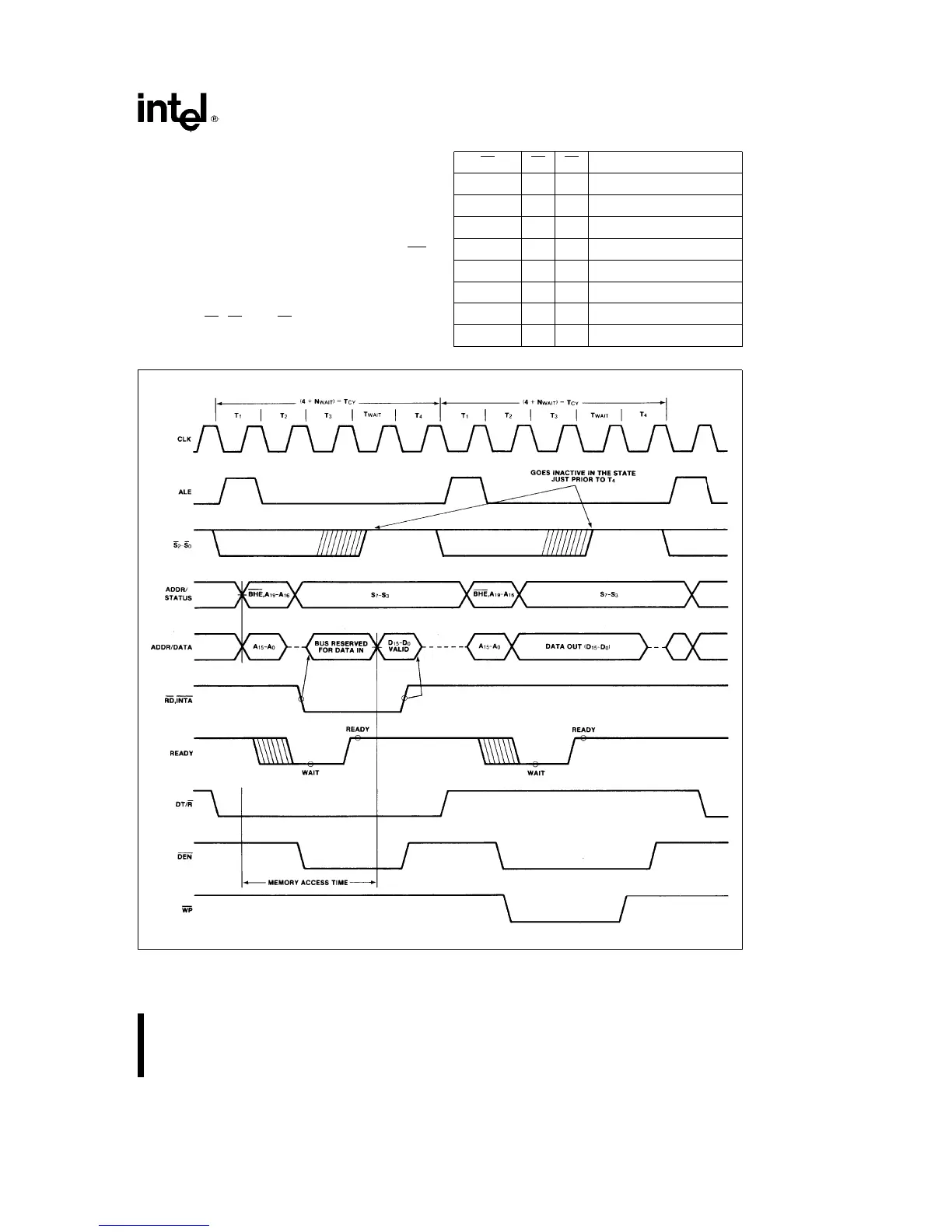

Figure 5. Basic System Timing
