Intel Server Board STL2 Quick Start Guide 13

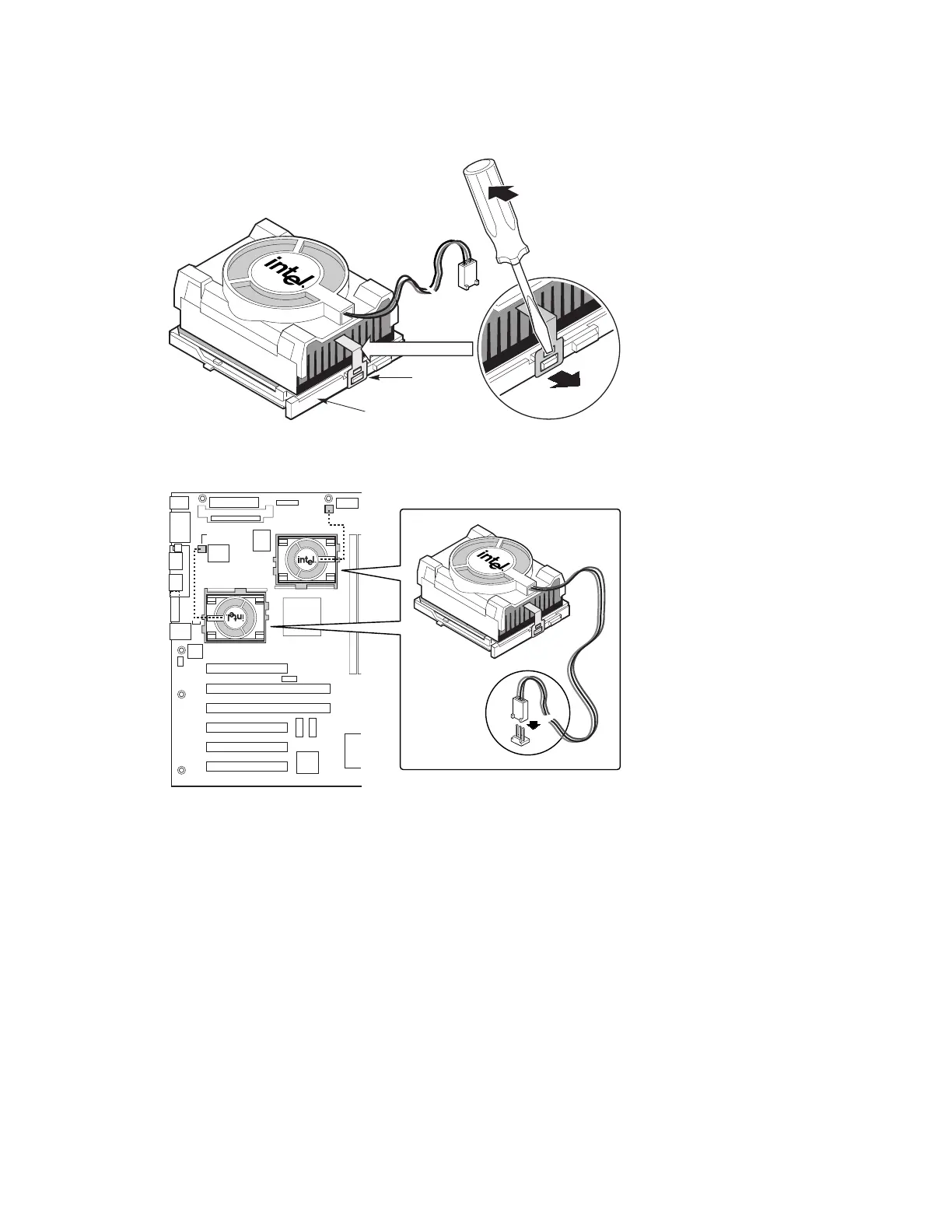

6 Attach the fan heatsink clip to the processor socket. We recommend
attaching the side away from the fan cable first. Then use a screw driver or
other tool to attach the remaining side.
PGA370
B
A
OM10681
7 Connect the processor fan cable to the processor fan connector.
OM10671
P12
P36
PGA370
