43
Permissible equivalent pipeline length
Air supply duct and flue pipe combined, excluding the
length of the terminal section.
Boiler Length
Intergas Xclusive 24 100 m
Intergas Xclusive 30 85 m
Intergas Xclusive 36 80 m

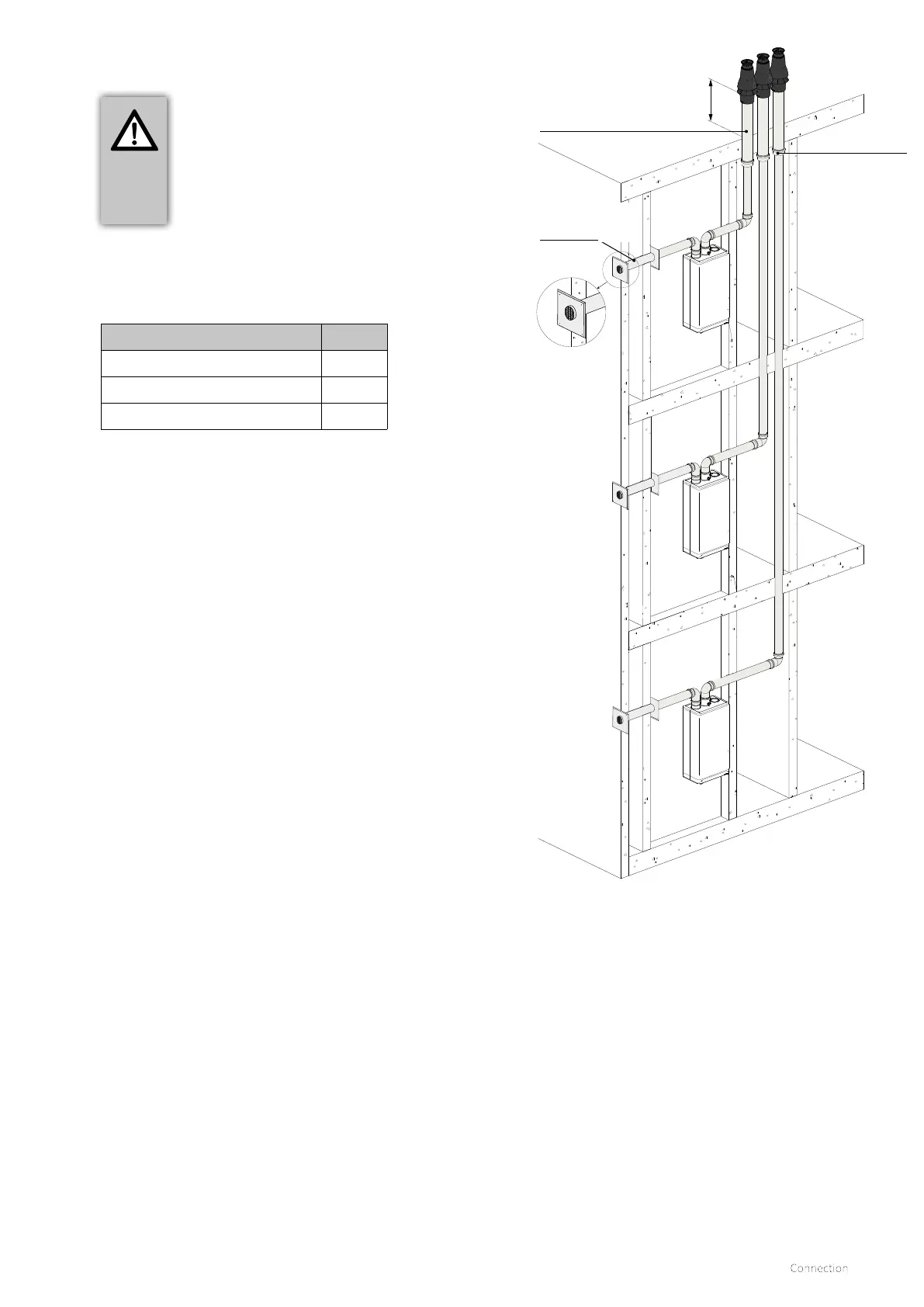

7.8.3 Vertical roof terminal and air supply duct from
the facade C53
min. 500
Intergas intake
grille 082856
IMPORTANT
► The air supply duct in the facade must
have an Intergas intake grille (art. no.
082856).
► All the flue pipe components and any
terminal used must must be approved by
Intergas heating ltd.
Assembly of horizontal air supply duct
► The air supply can be made in an arbitrary location in the
façade.
► At the location of the supply, core an opening of Ø90 mm.
► Shorten the air supply duct pipe to the desired length out of
the wall so the cover plate can sit flush.
► Attach the Intergas air intake terminal to the wall using the
4 x screws and plugs provided
► Slide the air supply onto the terminal and attach the
decorative plate to the internal plaster wall face.
► The air supply duct MUST BE angled away from the
appliance to prevent rain entering the boiler during adverse
weather conditions.
Vertical Roof terminal
086883
Air cover terminal
075438
Assembly of vertical flue terminal
► On a sloping roof, install a pitched weather slate (part
number 087909) then slide the terminal through the slate
and adjust to vertical. Seal around the storm collar and
adjusting section onto the slate with a suitable clear silicone
sealant, that is specifically designed for external conditions
(not supplied).
► On a flat roof, install a flat roof weather slate (part number
075333) then slide the terminal through the slate and
ensure it is vertical. Seal around the storm collar using a
suitable clear silicone sealant, that is specifically designed
for external conditions (not supplied).
► The terminal must be at least 500 mm above the roof
surface secure everything in place with the supplied
bracket.
