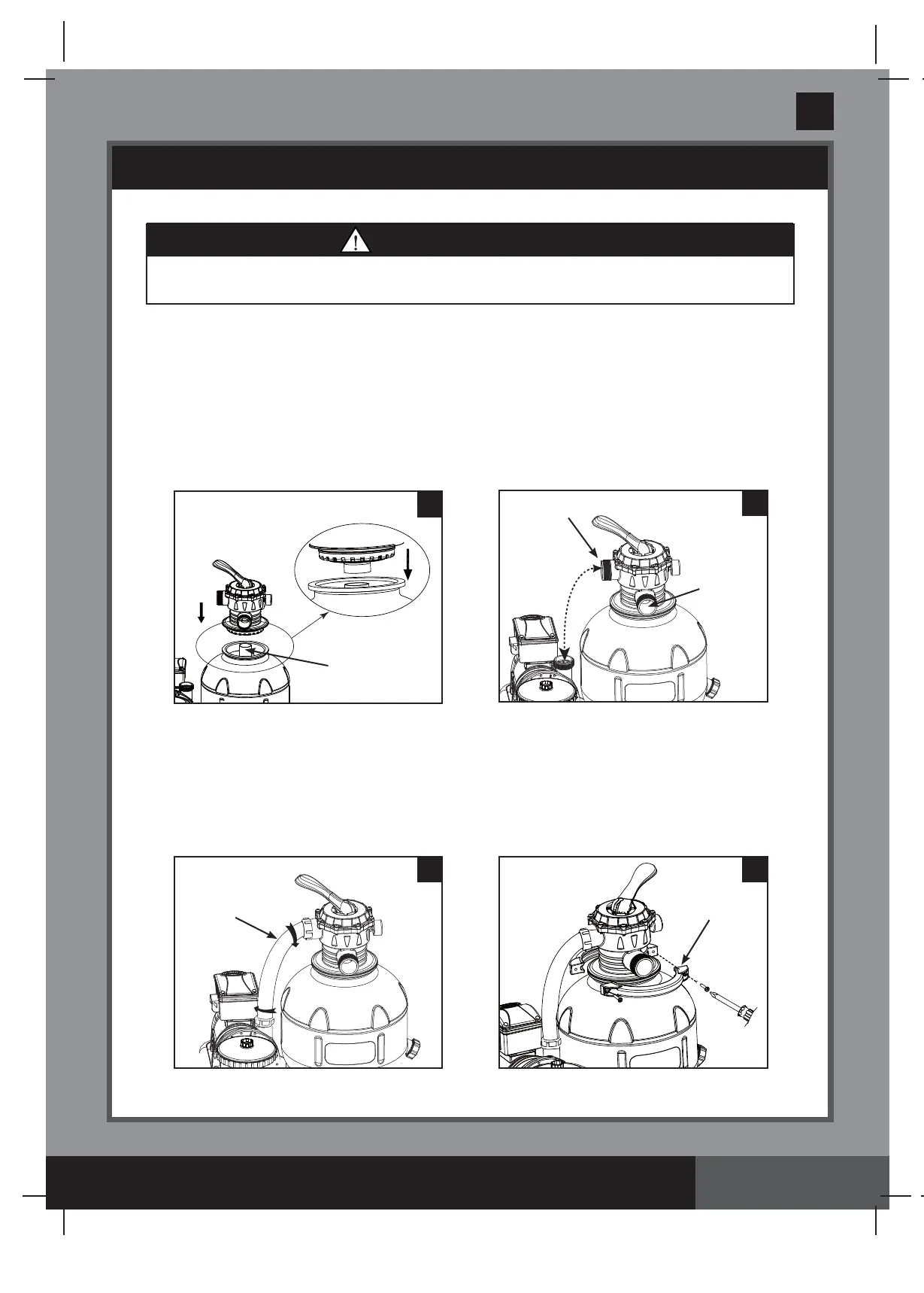

6-way valve installation:
1.
Lower the 6-way valve over the tank slowly, and ensure the bypass pipe protruding
underneath the 6-way valve fits securely into the center pipe hub
(7)
top opening
(see drawing 19)
.
IMPORTANT: There are three hose connection ports on the 6-way valve, ensure the
outlet connection (from filter to the pool) on the valve is facing towards the pool, and the
inlet connection (from motor to valve) is aligned with the motor outlet (see drawing 20).
SETUP INSTRUCTIONS (continued)
WARNING
Improper tank valve and clamp assembly could cause the valve and clamp to blow off
and cause serious injury, property damage or death.
20
WATER
INLET
WATER
OUTLET
2.
Place an L-shape o-ring
(11)
on the 6-way valve inlet connection and on the pump
motor outlet. In a clockwise motion connect the sand filter interconnecting hose
(13)
between the pump motor outlet and the 6-way valve inlet connection
(see drawing 21)
.
3.
Remove the clamp bolt, and install the clamp around the tank and 6-way valve flanges,
then replace the clamp bolt and use a phillips screwdriver (not included) to tighten it
(see drawing 22)
.
19
7
21
13
22
4
