38
7.2 Adjusting the armrest width

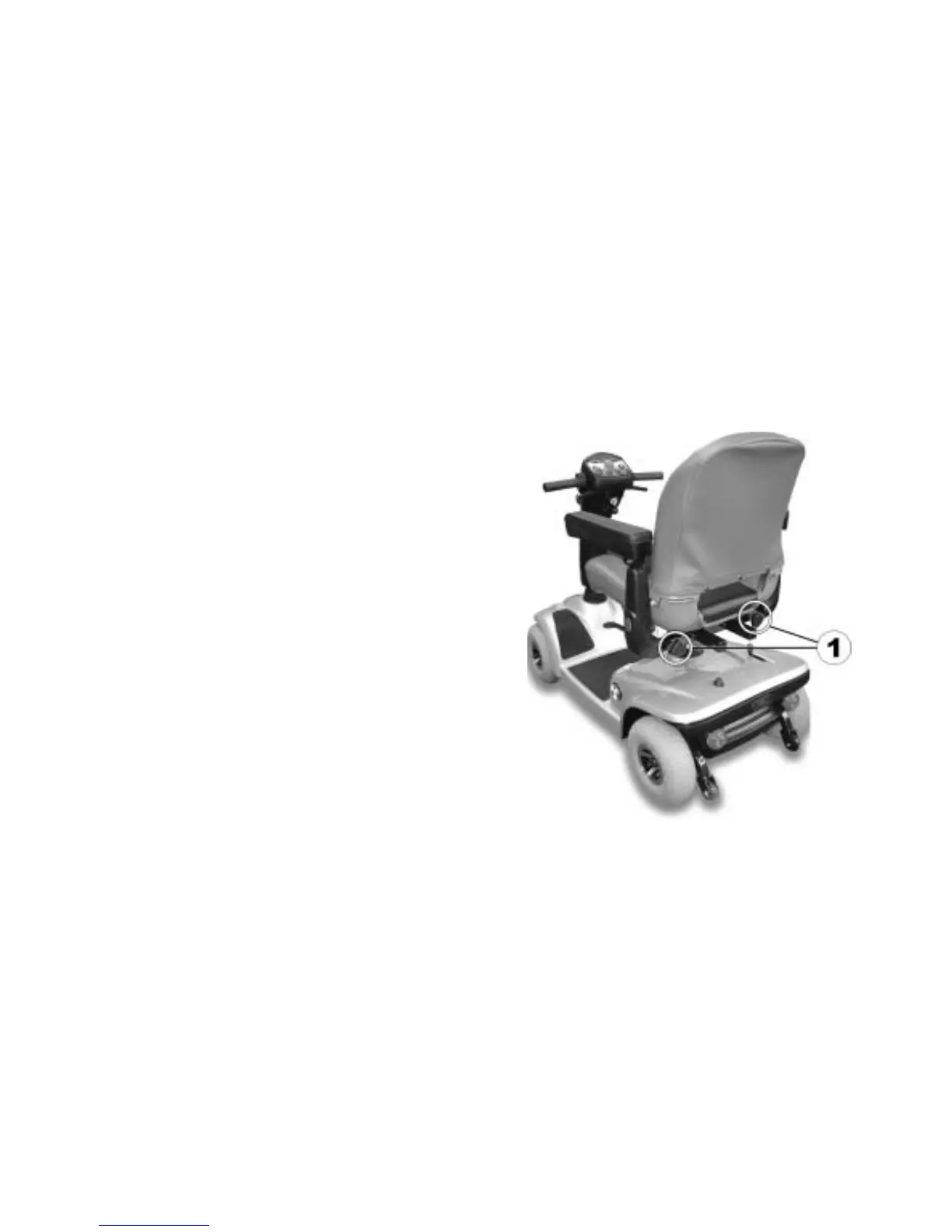

The hand wheels for releasing the armrests are located under the seat (1).
• Turn the hand wheels to loosen the fixing for
the armrest.
• Adjust the armrests to the required width.
• Retighten the handwheels

Table of Contents

Other manuals for Invacare Leo

Preview: User Manual
User Manual88 pages
Preview: Service Manual
Service Manual44 pages
Preview: Owner's Operator And Maintenance Manual
Owner's Operator And Maintenance Manual36 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Invacare Leo and is the answer not in the manual?

Invacare Leo Specifications

General IconGeneral
Maximum Speed8 km/h
Weight Capacity136 kg
Ground Clearance7 cm
Battery2 x 12V
Seat Width47 cm
Seat Depth41 cm (16.1 inches)
Maximum Safe Slope10 degrees
Turning Radius43.3 inches (110 cm)
