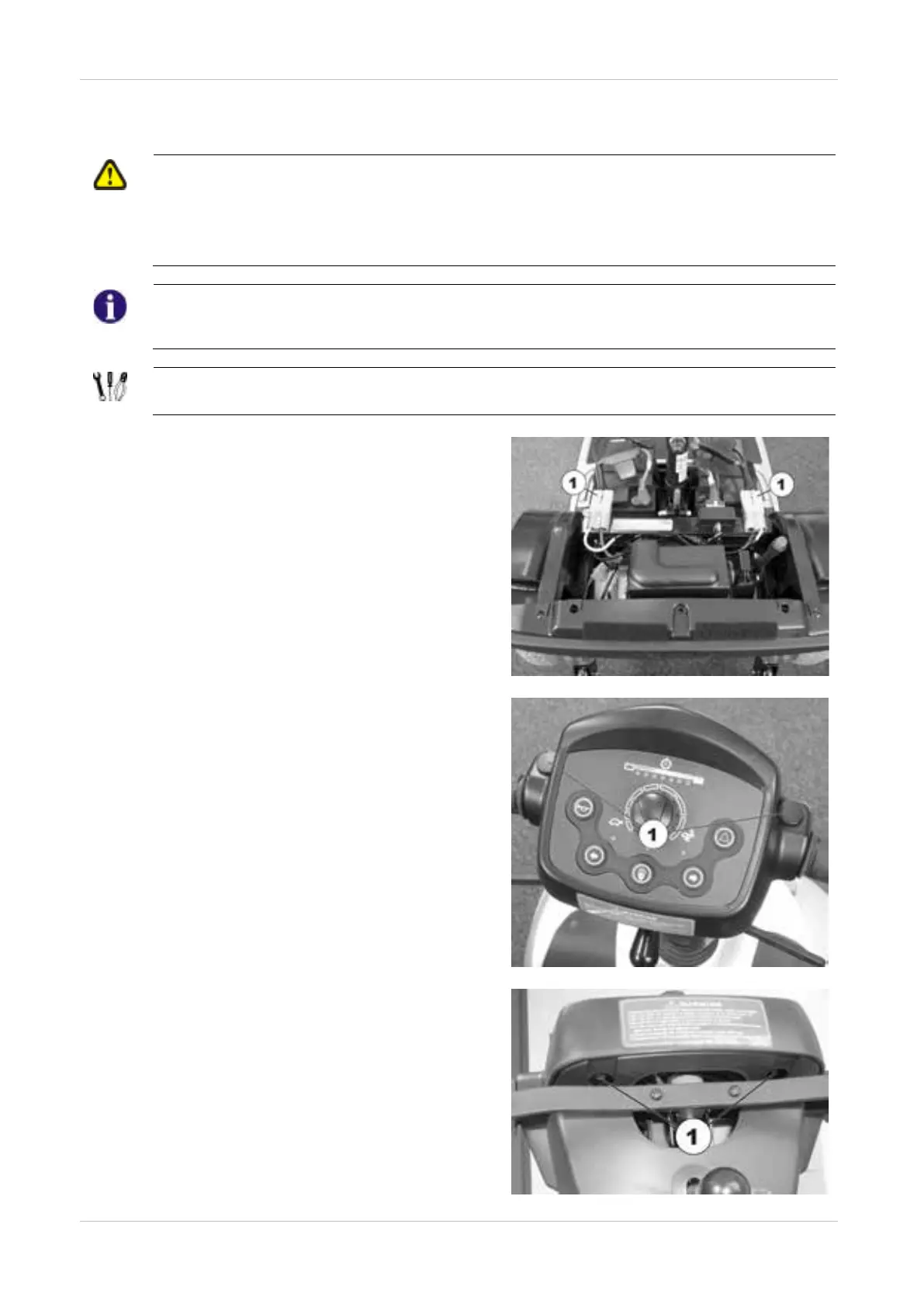

6.9 Replacing operating console
ATTENTION!
Burn and scald hazard if power cable is short-circuited!
• Turn off the power completely before removing any power supply components of the electric
vehicle! Therefore take out the batteries.
• Avoid a bridging of the contacts during measurements on live electrical components!
Note:
When disassembling, note the position of small parts such as screws and washers. Put small
parts down so that they can be reassembled in the right sequence.
Requirements:
• Phillips screwdriver
From the operating manual:
• Remove the seat
• Remove the battery and motor compartment
cover.
• Disconnect battery cable (1).
• Remove plugs from rear mirror fixing (1) or
rear mirror depending on fittings.
• Remove screws (2) below operating
console.
