Jacuzzi J - 2 0 User Manual

J-200 Series
GRN
WHT
WHT
BLK
BLK
BLK
RED
1
2
3

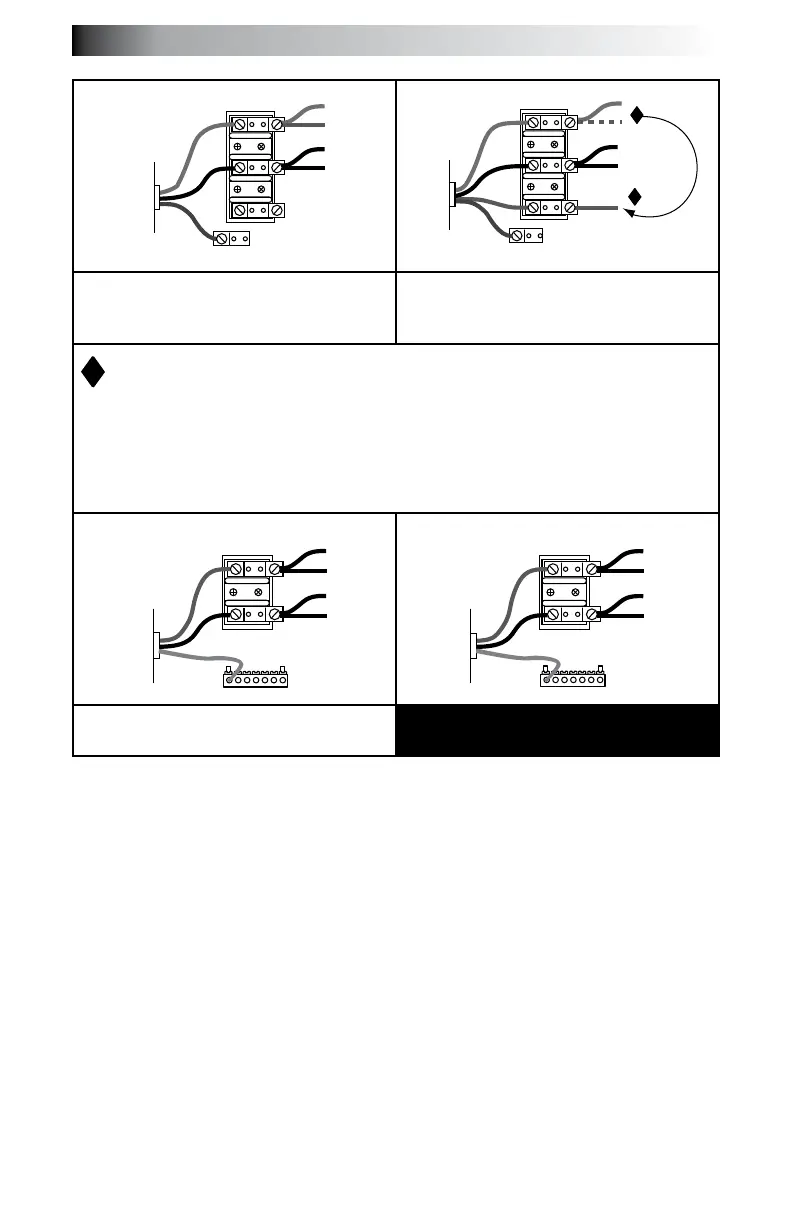

Figure-C
TB1
to Circuit
Board
Power In
GRN
WHT
WHT
BLK
BLK
BLK
RED
RED
RED
1
2
3
Figure-D
TB1
to Circuit
Board
Power In
Move Red
Wire Here

Models: 120/240 VAC, 3-Wire
Connection 60 Hz

Models: 120/240 VAC, 4-Wire
Connection 60 Hz
CAUTION (For 4-wire 240 VAC Heater Operation): Move the
red wire on the main terminal strip (TB1) from position #1 to
position #3. Make certain wires are connected exactly as shown


the manufacturer’s warranty.
BLK
RED
RED
RED
BLK
BLK
1
2
Figure-E
TB1
to Circuit
Board
Power In
Green
TB3
1
2
BLUE
BLUE
BROWN
BROWN
Figure-F
TB1
to Circuit
Board
Power In
Green
TB3
North American 240V Models:
240 VAC, 3-Wire Connection 60 Hz
All Export Models: 230 VAC, 3-Wire
Connection 50 Hz
Congratulations! You are now all set to get your new spa ready to use.
Simply follow the step-by-step procedure in Section 8.0, before long,
you will be enjoying your rst glorious experience in your Jacuzzi J-200
Series spa.
