PACKAGE CONTENTS
Each JBL 4319 box contains one (1) JBL 4319 studio-monitor speaker. If
you suspect that there has been shipping damage, report it immediately to
your dealer. We recommend that you keep the box and packing materials
for future use.
PLACEMENT
CAUTION: The 4319 weighs 35.9 lb (16.3kg). Before placing the
speaker on a shelf or platform, be sure that it is sturdy enough to
support the speaker’s weight.

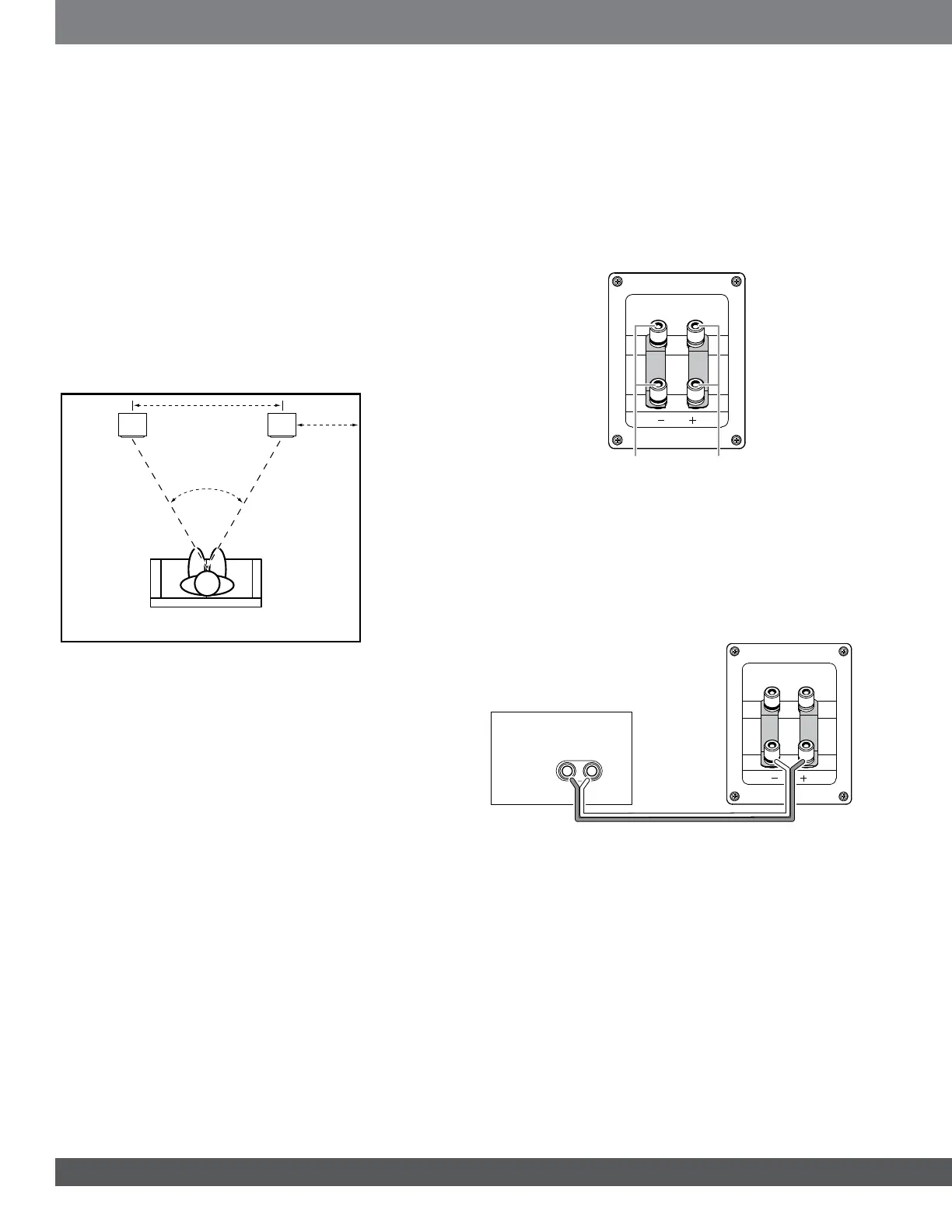

Before deciding where to place your speakers, survey your room and think
about placement, using the illustration below as a guide.
or other objects that generate large amounts of heat.
or distortion if placed close to some types of TVs. If this occurs, move
the speakers away from the TV until the discolouration or distortion
disappears.
If you place the speakers farther apart than this, angle them toward the
listening position.
the angle between the listener and the speakers is between 40 and 60
degrees.
wall or corner. For best performance, we recommend that you place the
CONNECTIONS
CAUTION: Make sure that all of the system’s electrical components
are turned OFF (and preferably unplugged from their AC outlets)
before making any connections.
illustration on the right.
cause the speaker drivers to move outward (toward the room).
We recommend using a high-quality speaker wire with polarity coding. The
side of the wire with a ridge or other coding is usually considered positive
BASIC SINGLE-WIRE CONNECTION
right. You can use either set of terminals on the speaker. NOTE: Do not
remove the metal jumpers from between the two sets of terminals when
connecting the speaker wires.
when making connections. Doing so will cause poor stereo imaging and
diminished bass performance.
connector types: bare wire, spade connectors, pin connectors
and banana connectors.
Listening Position
40° – 60°
20"
(50cm)
5' – 8'
(1.5m – 2.5m)
Positive (+)
Negative (–)
+ –
Speaker
Connector Panel
Receiver or Amplifier
(one channel shown)
