JBL AC195/-WH

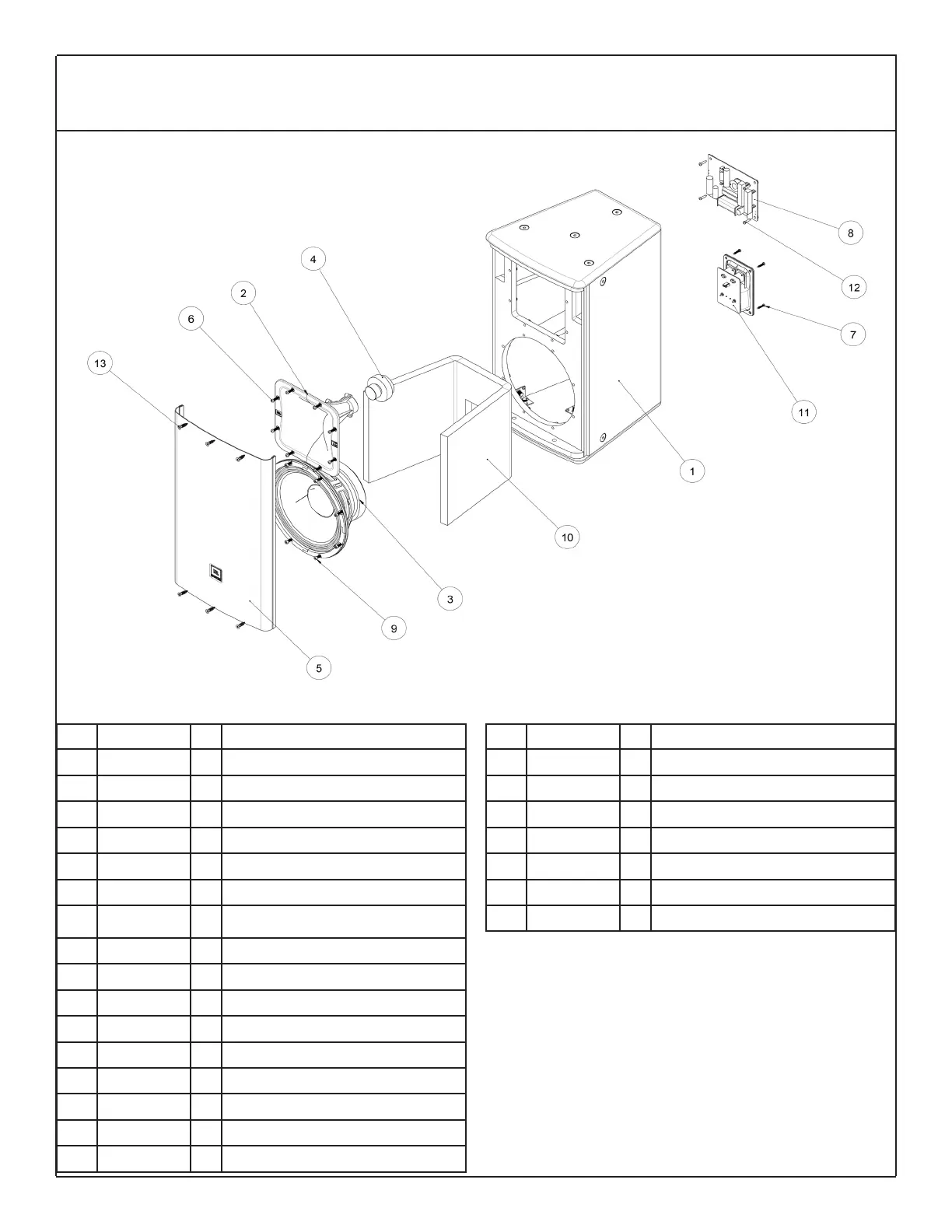

COMPONENT EXPLODED VIEW
COMPONENT PARTS LIST:
JBL AC195/-WH
Item Part No. Qty Description
1 1 ENCLOSURE NOT FOR SALE
2 364700-001 1 WAVEGUIDE, PTD95HF-1
3 5050692 1 AUD,LS,ASY,KP2010 WOOFER
4 5020337X 1 2408H-2
5 5055256 1 SPKSYS,GRILLE ASY,AC195
5 5056604 1 SPKSYS,GRILLE ASY,AC195-WHITE
6 815-41410-25 8 HDWR,FSTNR,SCR,M5 x 25 PH PAN BLK
ZINC
7 882-41410-21 4 HDWR,FSTNR,SCR,ST4 x 20 PH PAN EDB
8 5055230 1 NETWORK,ASY,AC195
9 815-03410-25 8 HDWR,SCR,M5 x 25, HEX, FILL, EDB
10 5055259 1 SPKSYS,WADDING,AC195
11 5055258 1 SPKSYS,TERMINAL CUP,ASY,AC195
12 883-41110-12 4 SCR,8 X 3/4,PAN,PH,PB,BLK ZINC,LCS
13 882-51110-12 6 SCR, 6X3/4,0V,PH,PTCL,BLK ZC,LCS
N/A 445228-001 2 100MM Bracket
N/A 445955-001 6 HDWR,BRKT,90DEGREE ASY,KP600
Item Part No. Qty Description
N/A 445956-001 2 HDWR,BRKT,SINGLE POINT ASY,KP600
N/A 818-13710-30 14 SCR,M10 x 30 HEX,FLAT, EDB
N/A 882-41410-15 34 SCR,ST4 x 15 PH,PAN, BLK ZINC
N/A 5061435 4 SCR,M10 x 30,TRUSS,HEX, EDB
N/A 5041457 16 FSTNR,NUT,T-NUT,M5,HOOK PRONG
N/A 5056790 14 SCR,M10 x 30 HEX,FLAT,WHITE
N/A 5061436 4 SCR,M1Ox 30,TRUSS,HEX,WHITE
