JBL BASSPRO User Manual

APPLICATIONS
BassPro is equipped with two line-level
(RCA) inputs and two high-level inputs.
To help you plan the installation of
BassPro, we have included two
system application diagrams in
Figures 8 and 9. For more installation
suggestions, contact your local
authorized JBL car audio dealer.

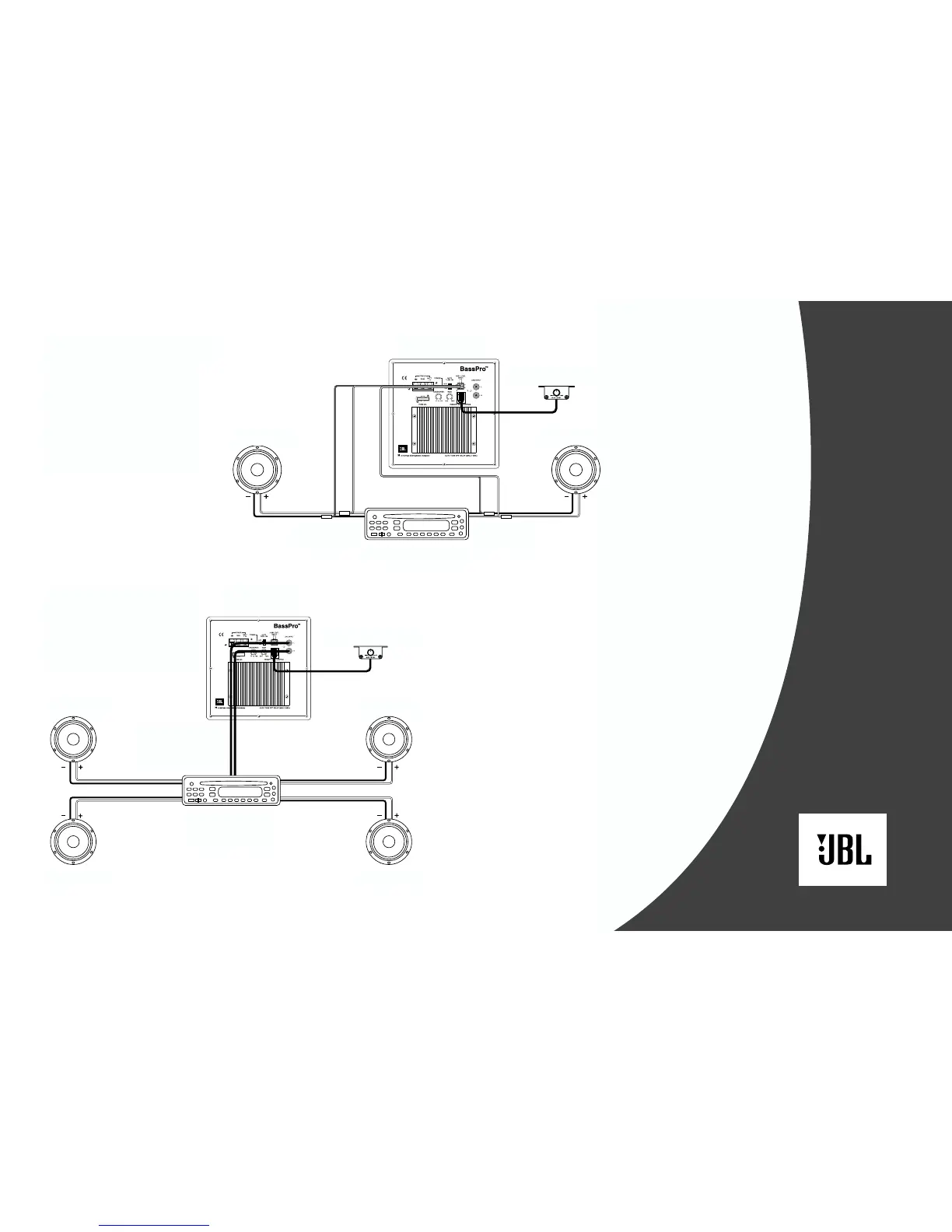

Figure 9. Line-level connections with
two outputs (single full range or
subwoofer).
Figure 8. High-level connections.
Connect BassPro’s high-level
inputs to either the front or rear
speaker outputs of your head unit
(splice crimps not included).
BassPro
Connection Panel
Subwoofer Level Control
BassPro
Connection Panel
Subwoofer Level Control
Left Speaker Right Speaker
Source Unit
Source Unit
LF Speaker
RF Speaker
LR Speaker RR Speaker
RCA Stereo Cables
(not supplied)
Splices
(not supplied)
Splices
(not supplied)
5

JBL BASSPRO Specifications

Amplification and Frequency

amplification	100 Watts
frequency response	20Hz – 120Hz
crossover frequency	70Hz – 120Hz
filter attenuation slope	12dB

Power

fuse	20A
maximum inrush current	12A
idle current	<800mA

Input Sensitivity

input sensitivity line level	50mV to 4V
input sensitivity universal interface	1V to 16V

Weight and Dimensions

dimensions with mounting brackets	410mm x 242mm x 312mm
