Die-Cast Alum.
Control
®
1X/1Xtreme/One
Technical Manual
Control
®
1X/1Xtreme/One

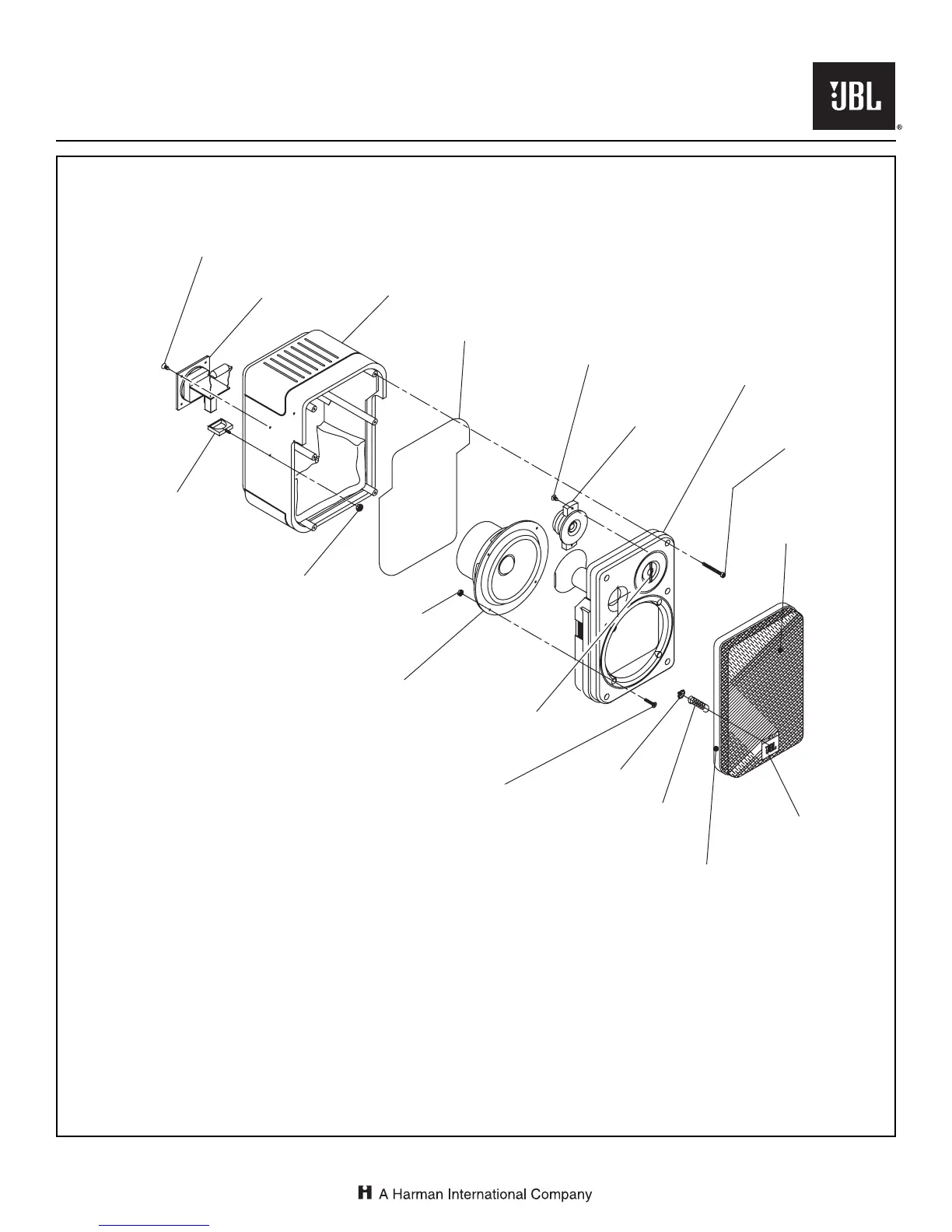

EXPLODED VIEW
Harman Consumer Group, Inc., 250 Crossways Park Drive, Woodbury, New York 11797
5/08
TO SERVICE THE CONTROL 1X/1XTREME/ONE
1. Remove the grille.
2. Remove all (6) 1-3/8" Allen-head screws holding the front baffle to the enclosure.
3. Separate the front baffle w/drivers from the enclosure.
DRIVER REMOVAL – Both woofer and tweeter are bonded to the front baffle with adhesive.
Unclip FASTON connectors from both woofer and tweeter.
a) Woofer removal:
Remove all (4) machine screws; rear nut can be held by long-nosed pliers while screws are turned.
Apply heat gun (750°) to area around woofer basket until adhesive softens enough to extract the woofer.
b) Tweeter removal:
Remove both (2) Phillips screws.
Apply heat gun (750°) to area around inside of cavity until adhesive softens enough to extract the tweeter.
After removal, take care not to lose or misplace the small clear plastic diffuser should it become dislodged.
CAUTION: Too much heat applied in one area too long could warp the front baffle.
DRIVER REPLACEMENT
Both woofer and tweeter must have a bead of adhesive applied to the outer rim only upon reassembly.
Silicone sealer or rubber-to-metal cement is recommended.
