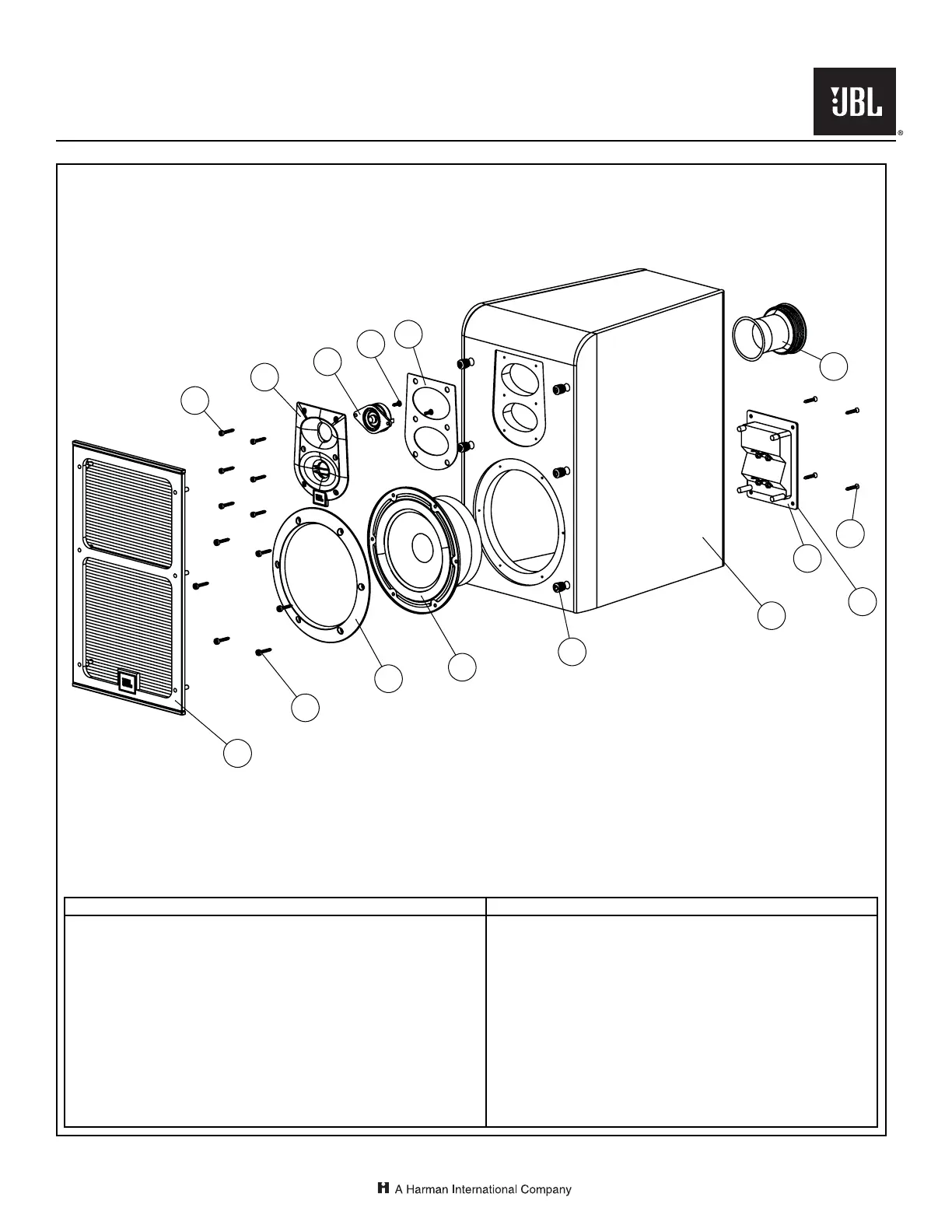

EXPLODED VIEW

Technical Manual

ES30

4/08

Harman Consumer Group, Inc., 250 Crossways Park Drive, Woodbury, New York 11797

ITEM PART NO. DESCRIPTION QTY.

11 352-KM04020D1149-E Screw, Trim Ring/Woofer 6

12 213-060-05152-0AAE Trim Ring, 6" 1

13 352-EM03520D853-E Screw, Terminal Cup 4

14 244-060-05242-0BAE Front Grille w/Logo 1

15 CS06-6 Shorting Straps, Pair 1

16 400-000-07560-E Carton for ES30BK 1

400-000-07556-E Carton for ES30BE 1

400-000-07538-E Carton for ES30CH 1

17 405-000-05122-E Warranty Card 1

18 Visit www.jbl.com ES Series Owner’s Manual 1

19 320-RUB-00504-E Feet Pads, 4pcs/Bag, Black 2

ITEM PART NO. DESCRIPTION QTY.

1 Not for Sale ES30 Cabinet 1

2 327-010-00621-E Grille Cup (Black Model) 6

327-010-00622-E Grille Cup (BE, CH Models) 6

3 249-HIPS-01002-E Port Tube 1

4 79DM19AX-DT01-E Faceplate w/Tweeter 1

5 16PR90BZM-FW01-E 6.5" Woofer 1

6 013-7600-05300-E Crossover Network w/Terminal Cup 1

7 353107-001-E UHF Tweeter 1

8 351-HC13832A880-E Screw, Blk, UHF Tweeter 2

9 333-EVA-05430-0BAE Gasket, Faceplate 1

10 352-KM03520D1148-E Screw, Faceplate 6
