16
10
1
12
10
2 11
3
9
8
22
5
14
15
6
4
7
14
13
L830 Cabinet – Not for Sale
Item Part No. Description Qty.
1 353237-001 HF TWEETER, ASSY, W/FACEPLATE 1
2 353133-001 HORN, UHF – STUDIO SERIES 1
3 353107-001 ASSY, TWEETER, UHF – STUDIO SERIES 1
4 335148-002 ASSY, WFR, 6-1/2" – STUDIO L SERIES 1
5 352504-001 ASSY, PTB – STUDIO L830 1
6 333249-001 GRILLE CUP, BLACK 4
333249-003 GRILLE CUP, BE & CH 4
7 353440-001 CROSSOVER NETWORK L830 1
8 351317-001 TERMINAL CUP, BI-WIRE, PLSTC-NE 1
9 900301-008 SCREW (UHF TWT) MS, PPH, 6-32X.5, BLK 2
10 908302-012 SCREW (HF TWT, UHF HORN) 8
PB, HXS, #6X.75, ZINC
11 353327-001 GSKT, TWEETER, UHF 1
12 353331-001 GSKT, TWEETER, HF 1
Item Part No. Description Qty.
13 903802-012 SCREW (WOOFER) PB, HXS, #8X.75, ZINC 6
14 903401-012 SCREW (NETWORK, TERM CUP) 8
PB, PPH, #6X.75, BLK
15 353284-001 ASSY, LOGO – STUDIO L SERIES 1
16 353229-001 ASSY, GRILLE – STUDIO L830 1
17 353436-001 OUTER CARTON, STUDIO L830, BLK 1
353436-002 OUTER CARTON, STUDIO L830, BE 1
353436-003 OUTER CARTON, STUDIO L830, CH 1
18 353334-001 L830 OWNER’S MANUAL 1
19 353439-001 PAD, END, TOP & BTM L830 2
20 338322-001 WARRANTY CARD, JBL PASSIVE 1
21 330104-001 FOOT, BUMP-ON, 3M, SJ5744 8
22 CS06-6 NETWORK SHORTING STRAPS (SET) 1
L830 Studio L Series
Technical Manual
L830 Studio L Series

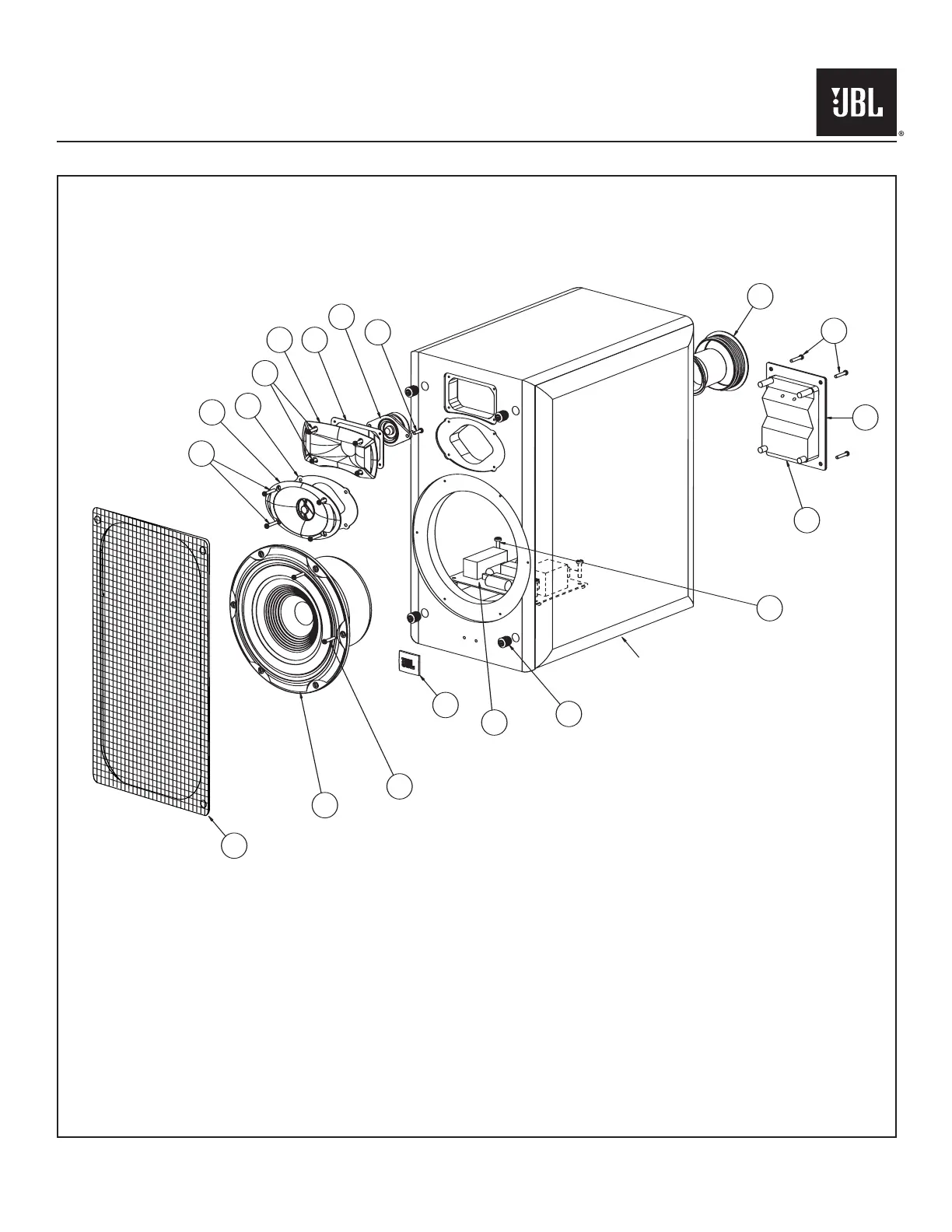

EXPLODED VIEW
JBL Consumer Products, 250 Crossways Park Drive, Woodbury, New York 11797
9/05
