JBL NORTHRIDGE E80 User Manual

Harman International SNC - Harman Consumer International 2, route de Tours 72500 Château du Loir 2
Technical Manual
JBL NORTHRIDGE E80

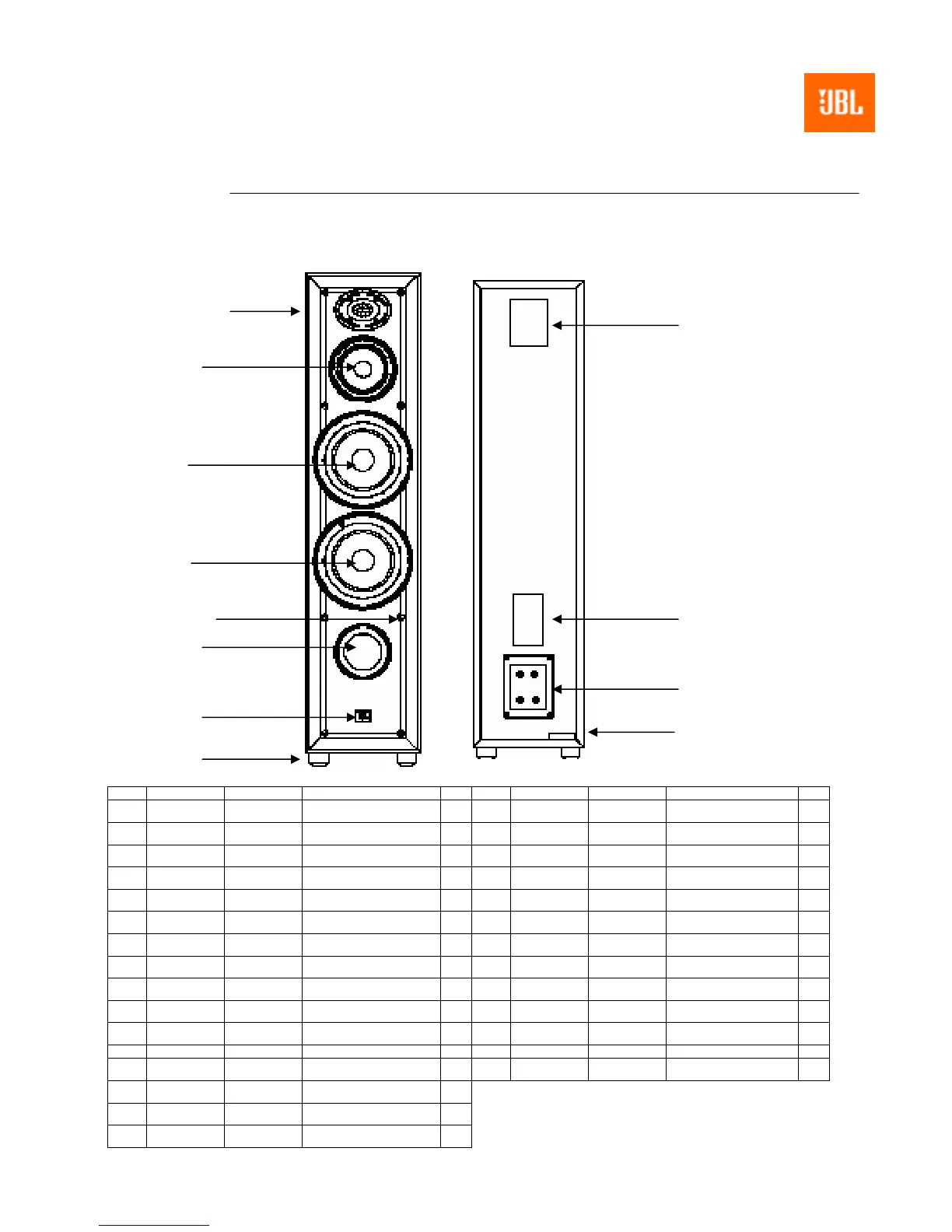

Part list
ITEM Model/color Part number Description qty ITEM Model/color Part number Description qty
1
E80
BK/BE/CH 338035-001 ASY,TWTR,3/4 1 10
E80
BK/BE/CH 338037-001 FT,RUBBER-ASSY/THD IN 4
2
E80
BK/BE/CH 350354-001 GSKT,TWTR PL-NE SER 1 11
E80
BK/BE/CH 350542-001 ASY.LOGO-NE-SER 1
3
E80
BK/BE/CH 338059-001
BAR,HOLD DOWN-
NRTHDGE 1 12 E80 BK 333249-001 CUP,GRL-HLS retainer 8
4
E80
BK/BE/CH 350130-001 PL,FACE,TWTR-NE SER 1 13 E80 BE/CH 333249-003
CUP,GRL-INTRMZO
retainer 8
E80
BK/BE/CH 350124-001 ASY,GRL,FRNT,E80 SERI 1
5
E80
BK/BE/CH 335588-002 ASY,MIDRNG-N38II/ND31 1 15
E80
BK/BE/CH 350066-001 ASY,PTB-E80 Port tupe 1
6
E80
BK/BE/CH 350144-001 RING,TRIM,4",MDRNG,E 1
17
E80
BK/BE/CH 339097-001 CAUTION STICKER 1
7
E80
BK/BE/CH 350540-001 ASY,WFR,6"-NS-W6SH 2 18
E80
BK/BE/CH 350125-001 FOILCAL,E80 SERIES 1
E80
BK/BE/CH 350123-001 ASY,XOVER-E80 SERIES 1 19
E80
BK/BE/CH 350161-001 LBL,JBL"Assem. in Mex 1
9
E80
BK/BE/CH 351317-001 T-CUP,BI-WIRE,PLSTC-N 1
E80
BK/BE/CH 39106S NAIL,FNSHG,1" 4
E80
BK/BE/CH 903401-012 SCR,PB,PPH,#6x.75,BLK 8
E80
BK/BE/CH 903802-012 SCR,PB,HXS,#8x.75,ZIN 12
E80
BK/BE/CH 905402-010 SCR,MS,PPH,H/L,6-19X5 2
E80
BK/BE/CH 908302-012 SCR,PB,HXS,#6x.75,ZIN 8
1
,
2
,
3
,
4
5
,
6
7
7
12/13
15
11
10
9
19
18
17

JBL NORTHRIDGE E80 Specifications

General

Woofer	No
Tweeter	Yes
Driver diameter	170 mm
Tweeter diameter	19 mm
Number of drivers	4
Speaker enclosure	Reflex
Speaker placement	Floor
Audio output channels	2.0 channels
Mid-range driver diameter	100 mm
Tweeter diameter (imperial)	0.75 \
Mid-range driver diameter (imperial)	4 \
Subwoofer driver diameter (imperial)	6 \
Product color	Black
Housing material	-
Recommended usage	Speaker set unit
Amplifier output power	200 W
Impedance	8 Ω
Sensitivity	91 dB
Frequency range	38 - 20000 Hz
Crossover frequency	4000 Hz
Connectivity technology	Wired
Power source type	AC

Weight and Dimensions

Depth	349 mm
Width	213 mm
Height	927 mm
Weight	19100 g
