JBL PRX718XLF/230

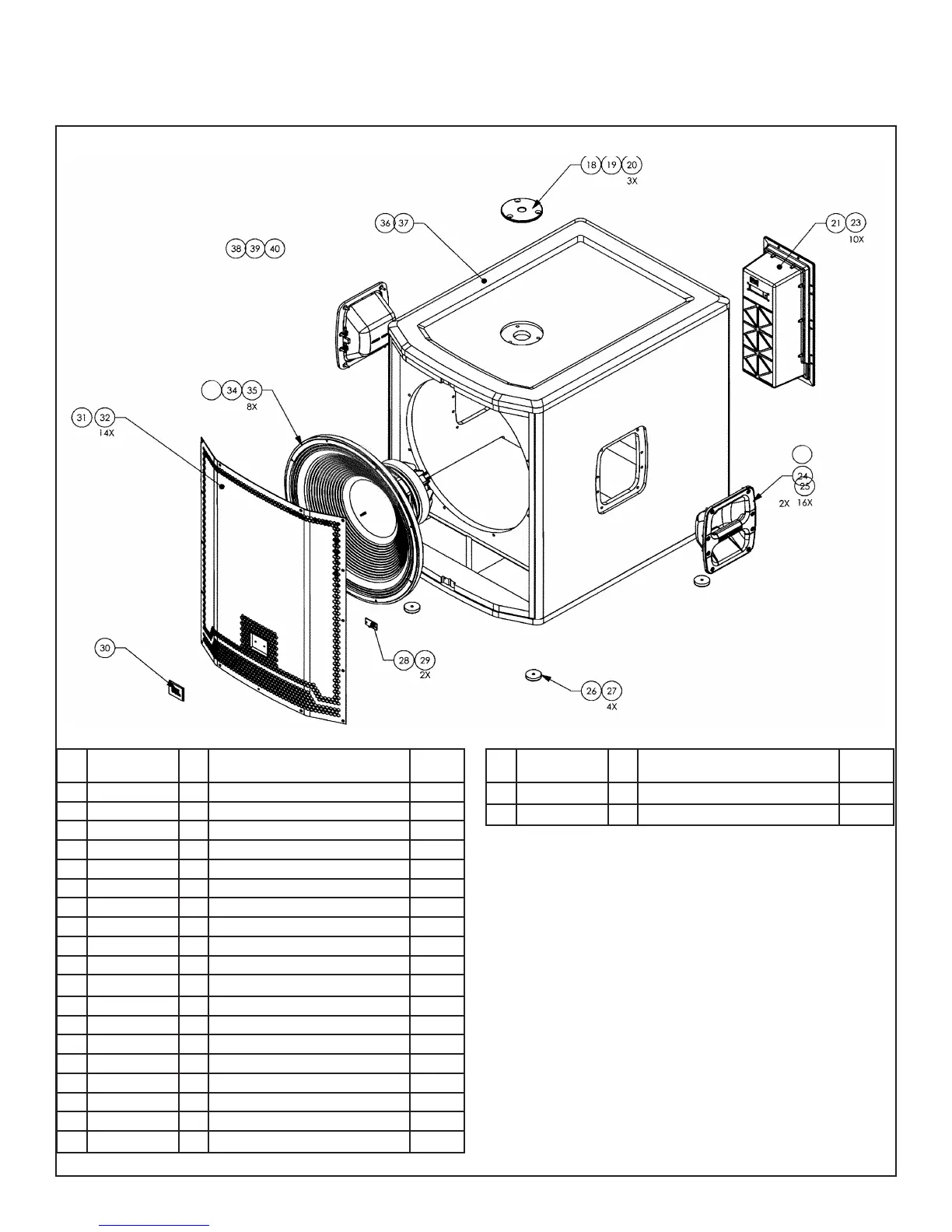

COMPONENT EXPLODED VIEW

COMPONENT PARTS LIST:

JBL PRX718XLF/230

Part No. Qty Description Ref.Des.

18 5003856 1 Pole mount, M20 3 hole pattern n/a

19 364808-001 1 Gasket, pole cup n/a

20 806-11010-20 3 SCR,1/4-20 X 1 1/4,FLT,PH,UNC,BLK ZNC,L n/a

21 5058668 1 AMP ASSY, PRX718XLF n/a

23 804-11110-12 10 SCR, 10-32 X 3/4",FLT,PH,BLK ZINC,LCS n/a

24 5032124 2 HANDLE ASSY n/a

25 446376-001 16 SCREW, #8-32, HANDLE n/a

26 353445-001 4 FOOT n/a

27 884-41110-12 4 SCR,10 X 3/4,PAN,PH,PB,BLK ZINC,LCS n/a

28 5030688 1 LED PCB, PRX700 n/a

29 882-41110-12 2 SCR,6X3/4",PAN,PH,PB,BLK n/a

30 5018271 1 Large Plastic Logo n/a

31 5032365 1 GRILLE ASSY, PRX718XLF n/a

32 882-51110-12 14 SCR, 6 X 3/4,OV,PH,PTCL,BLK ZC,LCS n/a

34 5031789X 1 M/I 2278H n/a

35 804-01110-16 8 SCR,10-32 X 1,FIL,PH,BLK n/a

39 445327-001 2 GASKET, HANDLE n/a

44 5033762 1 HARNESS ASSY, PRX718XLF n/a

Part No. Qty Description Ref.Des.

Questions and Answers:

Need help?

Do you have a question about the JBL PRX718XLF/230 and is the answer not in the manual?

JBL PRX718XLF/230 Specifications

General

Subwoofer type	Active subwoofer
Number of subwoofers	1
Subwoofer driver diameter	460 mm
Subwoofer frequency range	30 - 103 Hz
Subwoofer crossover frequencies	100 - 120 Hz
Subwoofer driver diameter (imperial)	18 \
XLR in	Yes
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Product color	Black
Speaker enclosure	Closed
