JBL PRX718XLF/230

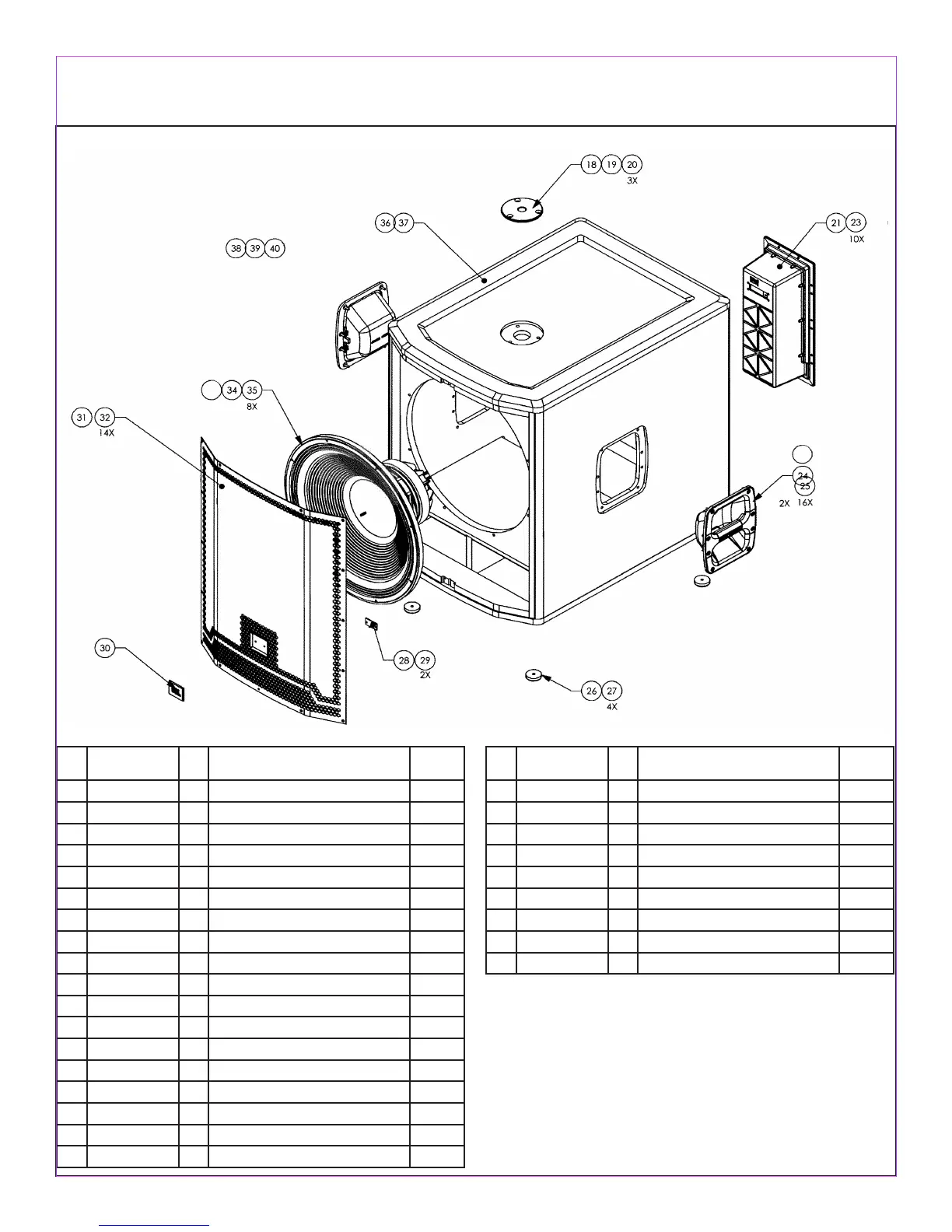

COMPONENT EXPLODED VIEW
COMPONENT PARTS LIST:
JBL PRX718XLF/230
Part No. Qty Description Ref.Des.
18 5003856 1
Pole mount, M20 3 hole pattern
n/a
19 364808-001 1
Gasket, pole cup
n/a
20 806-11010-20 3
SCR,1/4-20 X 1 1/4,FLT,PH,UNC,BLK ZNC,L
n/a
21 5032367 1
AMP ASSY, PRX718XLF
n/a
23 804-11110-12 10
SCR, 10-32 X 3/4",FLT,PH,BLK ZINC,LCS
n/a
24 5032124 2
HANDLE ASSY
n/a
25 446376-001 16
SCREW, #8-32, HANDLE
n/a
26 353445-001 4
FOOT
n/a
27 884-41110-12 4
SCR,10 X 3/4,PAN,PH,PB,BLK ZINC,LCS
n/a
28 5030688 1
LED PCB, PRX700
n/a
29 882-41110-12 2
SCR,6X3/4",PAN,PH,PB,BLK
n/a
30 5018271 1
Large Plastic Logo
n/a
31 5032365 1
GRILLE ASSY, PRX718XLF
n/a
32 882-51110-12 14
SCR, 6 X 3/4,OV,PH,PTCL,BLK ZC,LCS
n/a
34 5031789X 1
M/I 2278H
n/a
35 804-01110-16 8
SCR,10-32 X 1,FIL,PH,BLK
n/a
39 445327-001 2
GASKET, HANDLE
n/a
44 5033762 1
HARNESS ASSY, PRX718XLF
n/a
Part No. Qty Description Ref.Des.
50
39
