Technical Manual
STUDIO 580
STUDIO 580

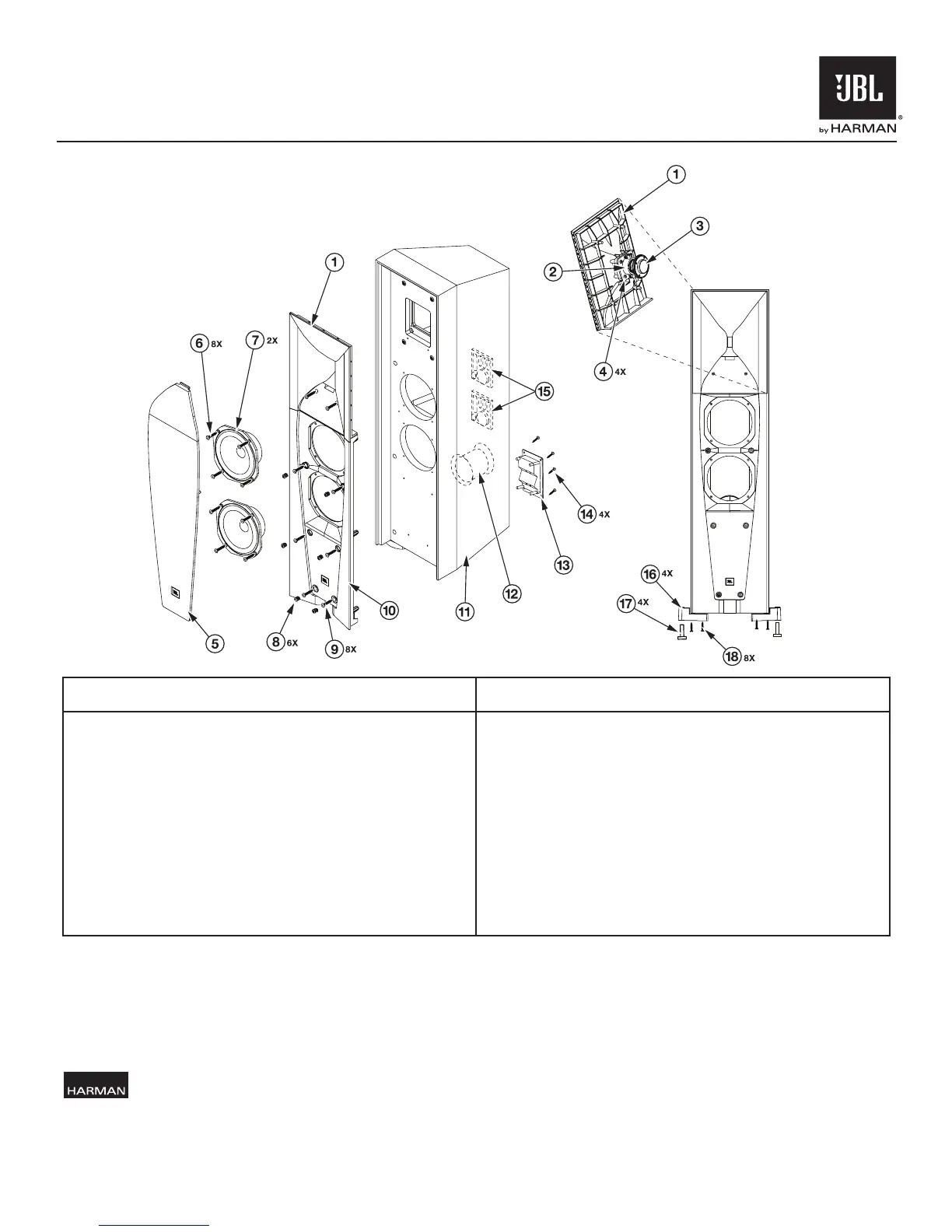

EXPLODED VIEW
HARMAN Consumer, Inc.
8500 Balboa Blvd., Northridge, CA 91329 USA
© 2012 HARMAN International Industries, Incorporated. All rights reserved. JBL and Bi-Radial are trademarks of HARMAN International Industries, Incorporated, registered in
the United States and/or other countries. PolyPlas and Symmetrical Field Geometry are trademarks of HARMAN International Industries, Incorporated. Teonex is a registered
trademark of DuPont Tenjin Films.
Features, specifications and appearances are subject to change without notice.
Part No. 950-XXXX-001 Rev. A
12/11
www.jbl.com
1 237-025-05121-0BAE Bi-Radial
®
horn, glass-filled ABS 1
2 237-025-05127-0BAE Horn rear, glass-filled ABS 1
3 0500166001Z 1" compression driver, neodymium magnet 1
4 350-AM05025D141-E Screw 4
5 244-060-05446-0BAE Studio 580 grille 1
6 350-HM04020D148-E Screw 8
7 565J 6-1/2" (165mm) Symmetrical Field
woofer, PolyPlas
™
cone 2
8 327-010-05055-0BAE Grille cup 6
9 350-AM04020D079-E Screw 8
10 301-ABS-05143-0BAE Bezel 1
11 Not for sale Studio 580 cabinet (black, cherry) 1
12 Not for sale Studio 580 port tube 1
13 317-ABS-05059-0BAE Terminal cup 1
14 350-EM03520D082-E Screw 4
15 013-7600-05937-E Network (LF board and HF board) 1
16 321-ABS-05150-0BAE ABS plastic foot 4
17 320-SR-05272-0BAE Rubber foot 4
18 350-AM04020D079-E Screw 8
19 431-000-07442-E Top packing 1
20 430-002-05486-E EPE bag 1
21 Not for sale Plastic bag for owner’s manual 1
22 376-000-01293-E Accessory bag 1
23 Visit www.jbl.com Owner’s manual 1
24 431-000-07457-E Middle packing 1
25 431-000-07443-E Bottom packing 1
26 Not for sale Desiccant pack 1
27 400-000-10276-E Studio 580 carton (black) 1
400-000-10362-E Studio 580 carton (cherry) 1
ITEM
NO. PART NO. DESCRIPTION QTY.
ITEM
NO. PART NO. DESCRIPTION QTY.
