JBL VT4886 User Manual

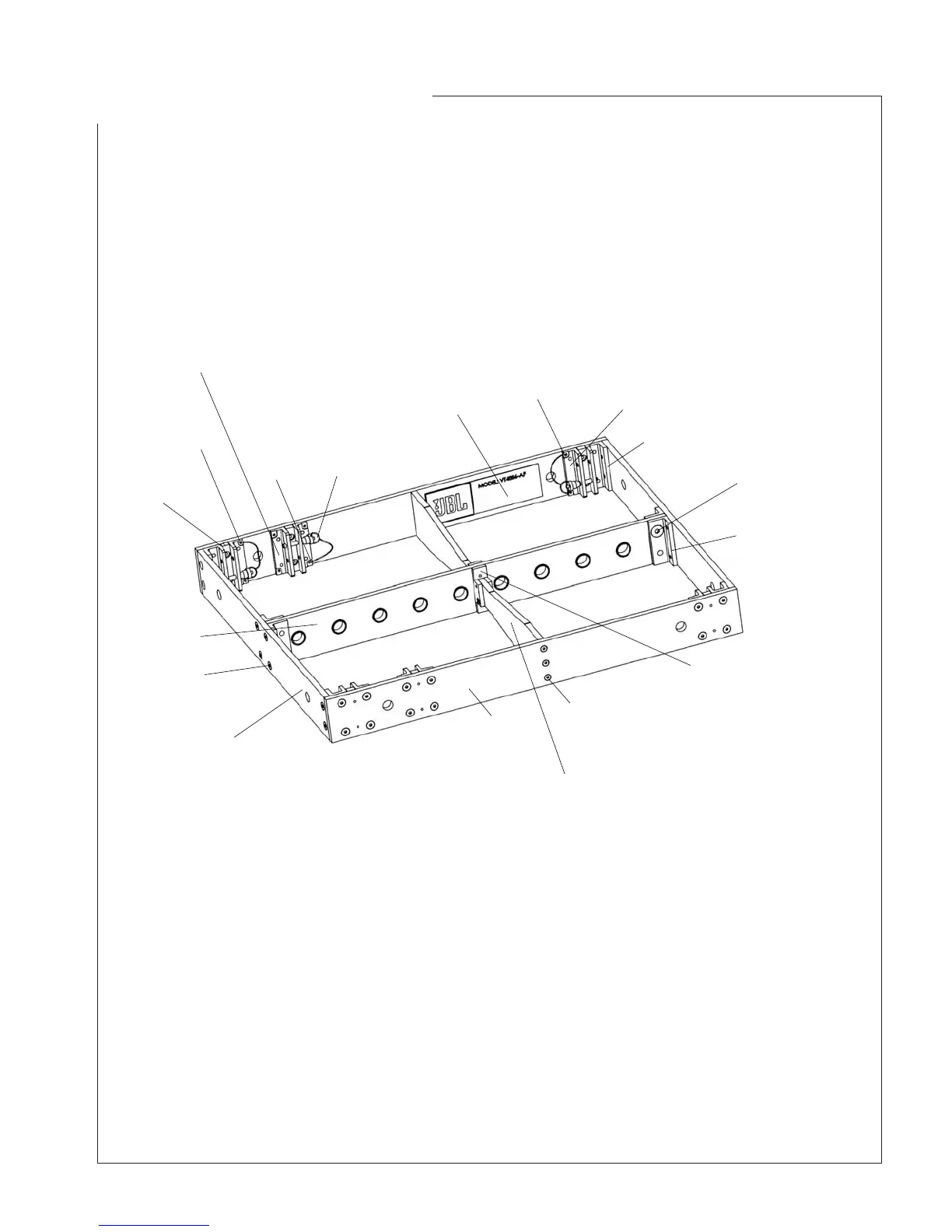

ARRAY FRAME ASSEMBLY
JBL VT4886-AF
Lifting Bar
442299-001
Screw (40)
444723-002
1/4-28 x 5/8
SOC,FLT
ALLOY,BLK
Screw (6)
444723-001
10-32 x 7/8
SOC,FLT,
ALLOY,BLK
JBL VT4886-AF
Front/Back Bar (2)
442300-001
Side Bar (2)
442300-001
Twist Support Bar (2)
444720-001
Bracket, U, Twist
Support Bar (2)
444719-001
Screw (6)
444723-001
10-32 x 7/8
SOC,FLT,
ALLOY,BLK
Bracket Lifting Bar (4)
444511-001
Screw (4)
444723-003
3/8-24 x 7/8
SOC,FLT,CAPBK
Bracket, Corner (4)
444553-001
Bracket, Short Hinge (4)
444540-001
Screw (2)
803-41040-05
8-32 x 5/16
PAN,PH,BLK
OXCIDE, LCS
Label
444721-002
Screw (2)
803-41040-05
8-32 x 5/16
PAN,PH,BLK
OXCIDE, LCS
Ball Lock Pin (6)
444618-001
Bracket, Long Hinge (4)
444510-001
Screw (2)
803-41040-05
8-32 x 5/16
PAN,PH,BLK
OXCIDE, LCS
Spacer
Block (6)
444764-001
Screw (12)
803-41010-08
PAN,PH,BLK
ZINC,LCS
