jcb 215 Service Manual

4 - 5
Section 1 General Information
9803/3280
Section 1
4 - 5
Issue 1

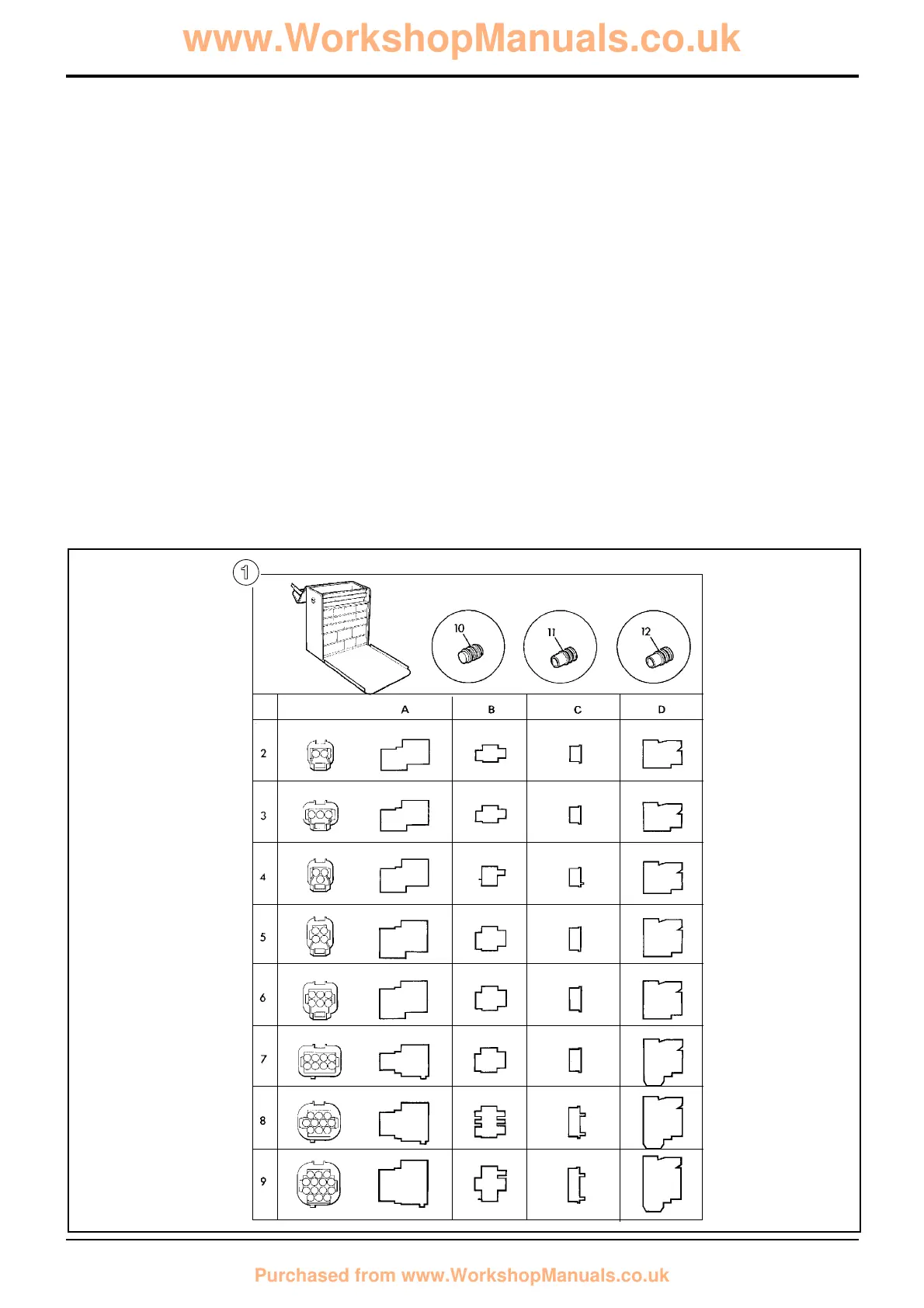

Service Tools (cont'd)
Section C - Electrics
1 Electrical Repair Kit
2A :7212/0002 2 Way Pin Housing
2B :7212/0004 2 Way Pin Retainer
2C :7212/0003 2 Way Socket Retainer
2D :7212/0001 2 Way Socket Connector
3A :7213/0002 3 Way Pin Housing
3B :7213/0004 3 Way Pin Retainer
3C :7213/0003 3 Way Socket Retainer
3D :7213/0001 3 Way Socket Connector
4A :7213/0006 3 Way Pin Housing (DT)
4B :7213/0008 3 Way Pin Retainer (DT)
4C :7213/0007 3 Way Socket Retainer (DT)
4D :7213/0005 3 Way Socket Connector (DT)
5A :7214/0002 4 Way Pin Housing
5B :7214/0004 4 Way Pin Retainer
5C :7214/0003 4 Way Socket Retainer
5D :7214/0001 4 Way Socket Connector
6A :7216/0002 6 Way Pin Housing
6B :7216/0004 6 Way Pin Retainer
6C :7216/0003 6 Way Socket Retainer
6D :7216/0001 6 Way Socket Connector
7A :7218/0002 8 Way Pin Housing
7B :7218/0004 8 Way Pin Retainer
7C :7218/0003 8 Way Socket Retainer
7D :7218/0001 8 Way Socket Connector
8A :7219/0002 10 Way Pin Housing
8B :7219/0004 10 Way Pin Retainer
8C :7219/0003 10 Way Socket Retainer
8D :7219/0001 10 Way Socket Connector
9A :7219/0006 14 Way Pin Housing
9B :7219/0008 14 Way Pin Retainer
9C :7219/0007 14 Way Socket Retainer
9D :7219/0005 14 Way Socket Connector
10 :7210/0001 Dummy Plug
11 :7210/0002 Wire Seal (1.4 - 2.2 mm dia.)
12 :7210/0003 Wire Seal (2.2 - 2.9 mm dia.)
S188380
1
www.WorkshopManuals.co.uk
Purchased from www.WorkshopManuals.co.uk

jcb 215 Specifications

General

Engine Power	74 hp
Rated Operating Capacity	2, 100 lbs
Lift Path	Vertical
Tipping Load	4, 200 lbs
Net Engine Power	74 hp
Width over Tires	1, 800 mm
Height to Top of Cab	2, 300 mm
Hinge Pin Height	2, 800 mm
Travel Speed	11 km/h
Travel Speed (High)	11 km/h
