jcb 215 Service Manual

18 - 5
Section F Transmission
9803/3280
Section F
18 - 5
Issue 1
Basic Operation
Powershift Gearbox
Drivepaths - 6 Speed
1F
1st GEAR FORWARD (4 wheel drive)
Clutches Engaged Solenoids Energised
X ‘6 Speed’ Xs
Z Layshaft Zs
S 2/4 Wheel Drive Ss
2F
2nd GEAR FORWARD (4 wheel drive)
Clutches Engaged Solenoids Energised
T Forward Low Ts
Z Layshaft Zs
S 2/4 Wheel Drive Ss
3F
3rd GEAR FORWARD (4 wheel drive)
Clutches Engaged Solenoids Energised
U Forward High Us
Z Layshaft Zs
S 2/4 Wheel Drive Ss
4F
4th GEAR FORWARD (4 wheel drive)
Clutches Engaged Solenoids Energised
X ‘6 Speed’ Xs
Y Mainshaft Ys
S 2/4 Wheel Drive Ss
5F
5th GEAR FORWARD (4 wheel drive)
Clutches Engaged Solenoids Energised
T Forward Low Ts
Y Mainshaft Ys
S 2/4 Wheel Drive Ss
6F
6th GEAR FORWARD (4 wheel drive)
Clutches Engaged Solenoids Energised
U Forward High Us
Y Mainshaft Ys
S 2/4 Wheel Drive Ss

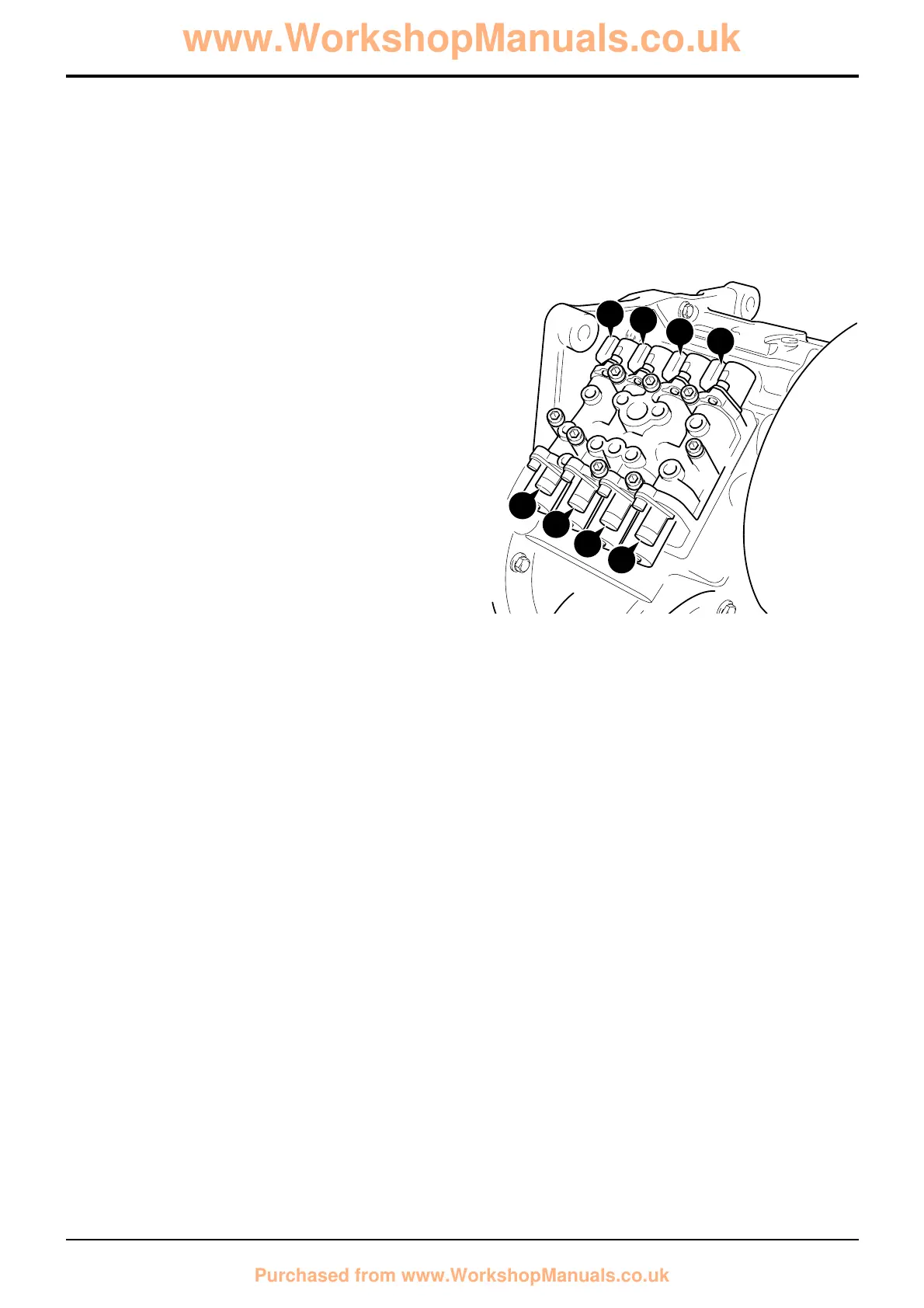

Ss
Zs
Xs
Ys
Ts
Ws
Vs
Us
www.WorkshopManuals.co.uk
Purchased from www.WorkshopManuals.co.uk

jcb 215 Specifications

General

Engine Power	74 hp
Rated Operating Capacity	2, 100 lbs
Lift Path	Vertical
Tipping Load	4, 200 lbs
Net Engine Power	74 hp
Width over Tires	1, 800 mm
Height to Top of Cab	2, 300 mm
Hinge Pin Height	2, 800 mm
Travel Speed	11 km/h
Travel Speed (High)	11 km/h
