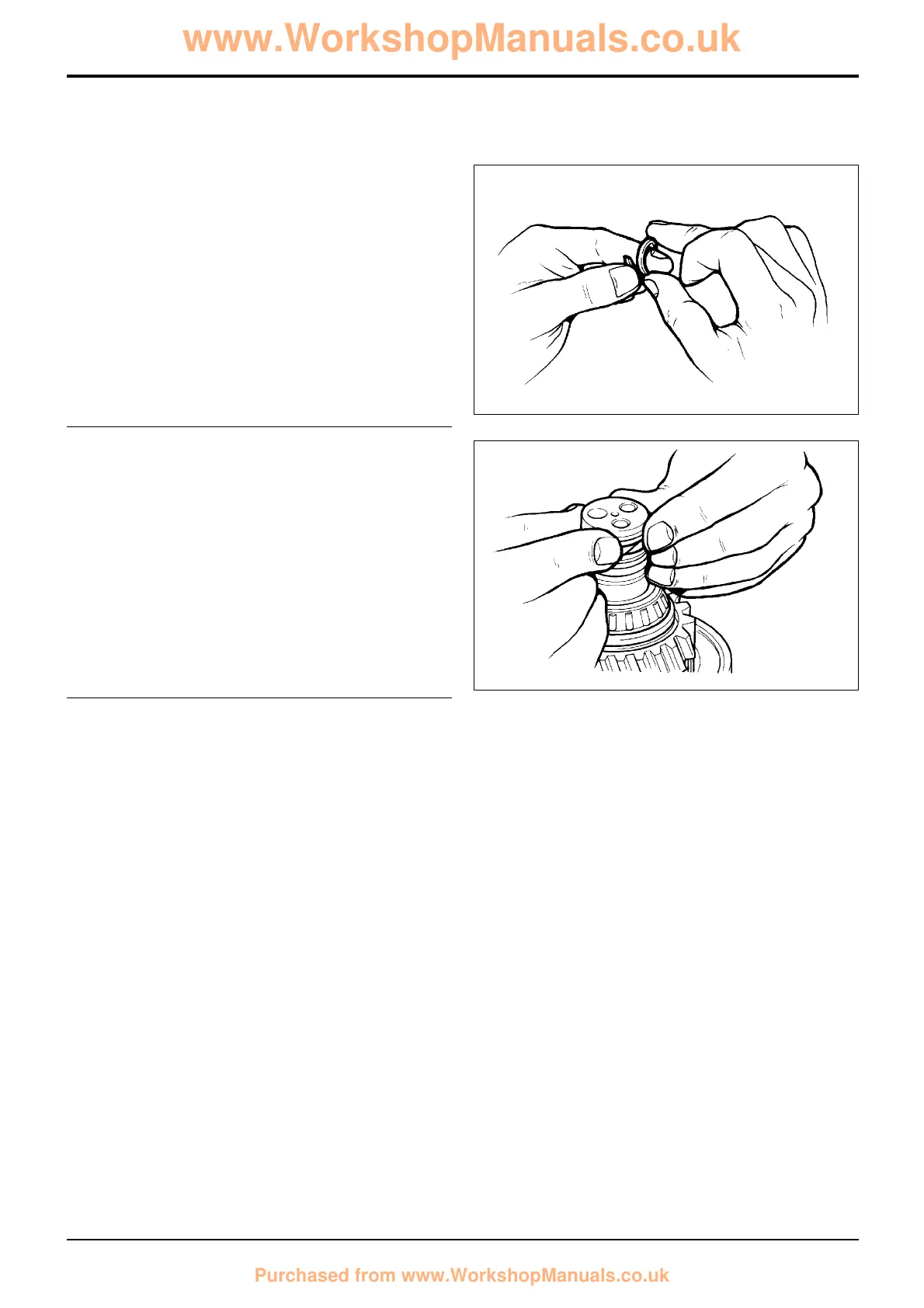

1 Wind the PTFE piston ring seal around your finger as

shown, so that the seal forms a 'coil'.

2 Smear the seal with grease and then fit the seal to the

shaft.

Make sure that the seal sits below or flush with the

outer diameter of the shaft. If necessary, use finger

pressure as shown to make the seal flush with the shaft.

CAUTION: If the seal is not set below or flush with the outer

diameter of the shaft, then the seal will 'cut' when the shaft is

fitted to its mating component.

117 - 1

Section F Transmission

9803/3280

Section F

117 - 1

Issue 1

Synchro Shuttle Transmission

Polytetrafluoroethylene (PTFE) Piston Ring Seals - Fitting Procedure
