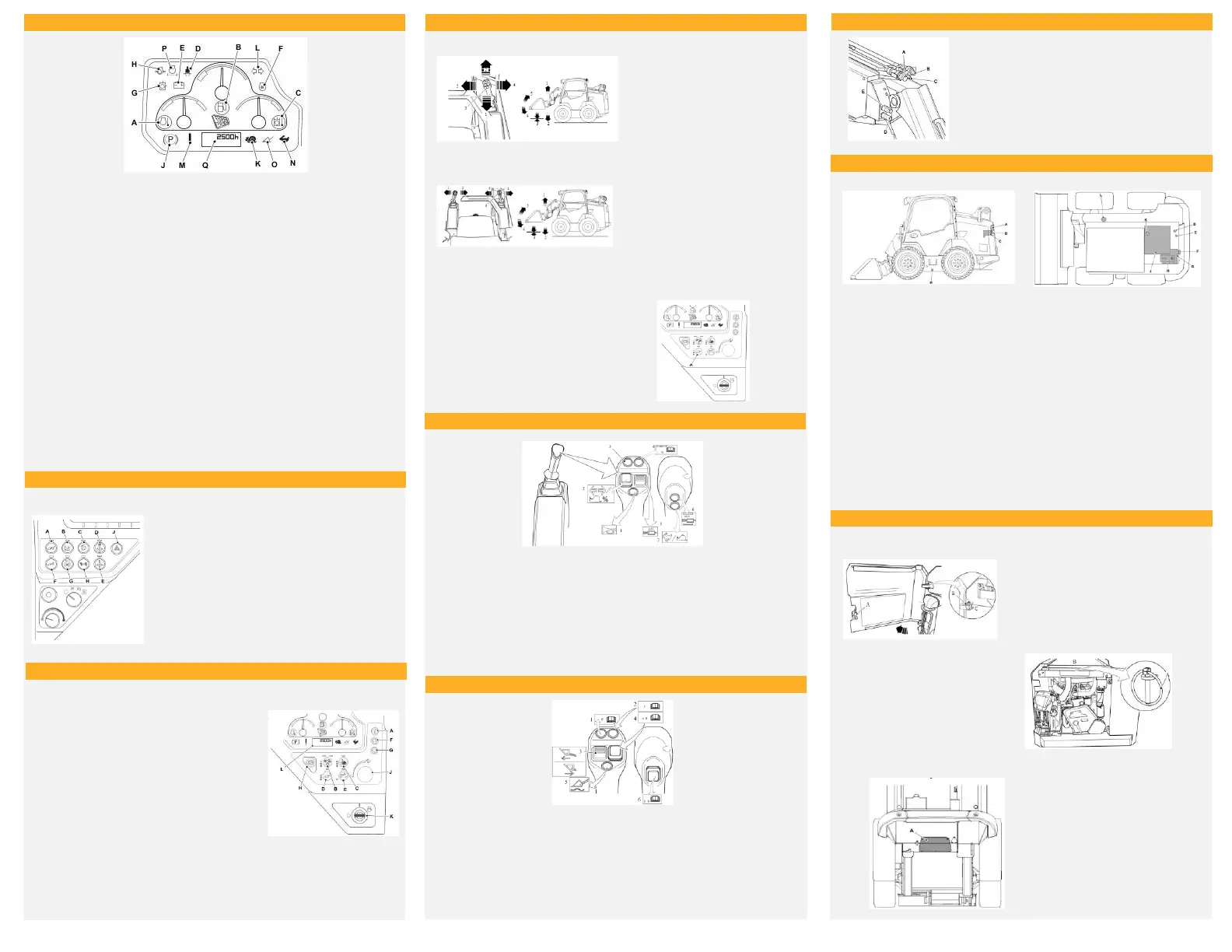

A. Engine coolant temperature high
B. Fuel level
C. Hydraulic oil temperature
D. Seat belt/restraint/pod warning
E. Alternator not charging
F. Cold start active
G. Hydraulic oil pressure
H. Engine oil pressure
J. Park brake on
K. Creep
L. Direction Indicators
M. Malfunction
N. High speed
O. Shovel float
P. Air filter blocked
Q. Info and hour meter display
Instrument Panel
Left Hand Switch Panel
A. Powered Quickhitch unlock (option)
B. SRS
C. High flow auxiliary (option)
D. ISO control pattern
E. H control pattern (option)
F. Powered Quickhitch lock (option)
G. Reversing fan (option)
H. Sidelights (option)
J. Hazard warning lights (option)
Left Hand Switch Panel
A. Info button
B. Front/rear work/road lights
(option)
C. Lift arm isolate
D. Electro-hydraulic attachment
positioning system (option)
E. Auxiliary hydraulics isolate switch
F. Up
G. Down
H. Park brake/drive and lift
arm/auxiliary hydraulics isolate
J. Hand throttle control knob
K. Ignition switch
L. LCD screen
ISO Pattern
1. Lift arm raise
2. Lift arm lower
3. Float
4. Shovel dump
5. Shovel crowd
Lift Arm Controls
1. Lift arm raise
2. Lift arm lower
3. Float
4. Shovel dump
5. Shovel crowd
H-Pattern (option)
Electro-Hydraulic Attachment Positioning System (option)
A. Electro-hydraulic
attachment positioning
system switch
Auxiliary Circuit Controls
A. Top auxiliary coupler
B. Top auxiliary coupler
C. Top auxiliary drain coupler
D. Side auxiliary coupler
E. Side auxiliary coupler
Service Points
1. Horn
2. Turn signal (option)/Creep setting (option)
3. Not used
4. Not used/ Attachment 4
th
function latching relay switch
5. Auxiliary proportional control switch
6. Auxiliary proportional control hold switch
7. Two speed (option/creep speed drive control (option)
Controls – Left Joystick
Controls – Right Joystick
1. Attachment 3
rd
function switch relay E
2. Attachment 3
rd
function switch relay F
3. Extend/Retract switch
4. Attachment primary functions switch relays A,B
5. Float switch (option)
6. Attachment secondary functions switch relays C,D
A. Coolant expansion bottle
B. Fuel sedimenter
C. Air intake
D. Engine oil filler cap
E. Engine oil dipstick
F. Hydraulic oil level indicator, Hydraulic oil filler cap
G. Battery isolator
H. Battery
J. Radiator
K. Radiator cap
L. Window washer fluid bottle
M. Chain case oil port
Access Covers
Engine Compartment Cover
A. Handle
B. Locking pin
C. Locking position
A. Locking pin
B. Stowage position
Rear Cover
A. Rear Cover
