15 - Engine
42 - Rocker and Fittings
00 - General
15 - 160 9823/0000-1 15 - 160
Remove and Install
(For: JCB Tier 2/3 Mech Engine 4 Cyl)
Before Removal
1. Make sure that the engine is safe to work on. If
the engine has been running, let it cool before
you start the service work.
2. Get access to the engine.
3. Disconnect and remove the fuel pipes from the
fuel injectors, refer to Fuel pipes (PIL 18-96).
4. Remove the rocker cover, refer to (PIL 15-42).

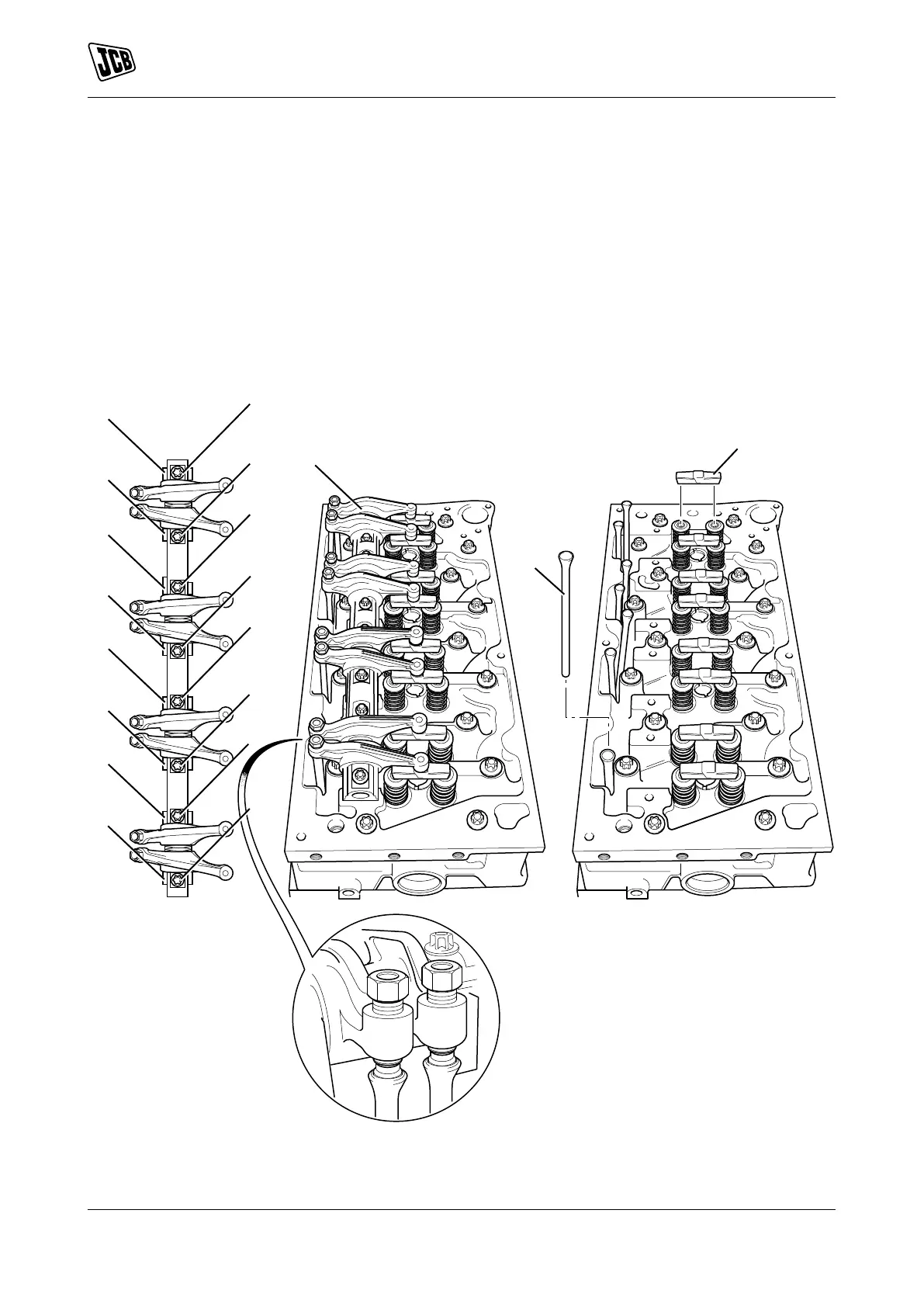

Figure 202.
1 Rocker shaft assembly 2 Rocker shaft fixing bolts (x7)
3 Rocker shaft - oil feed pedestal fixing bolt (x1) 4 Pedestals (x7)
