Disconnecting Attachments
B
B
C
A
B
B
C
A
1 3
64
7
2
5

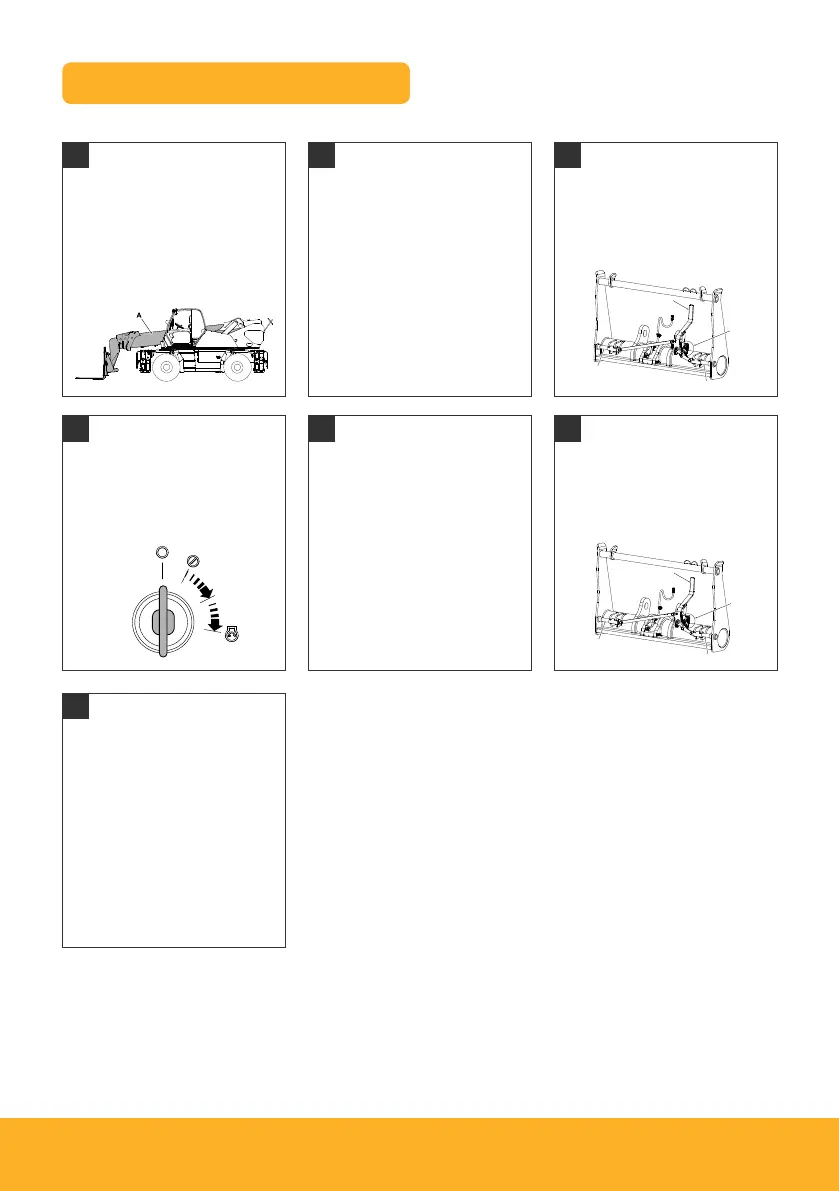

Stop the Machine
Operate Lock Lever (C)
Withdraw CarriageStart Engine
Reverse Away
Remove Locking Pin
Tilt Forward
Park on dry level ground.
Lower Attachment to the
ground.
Unlock the locking pins (A) or
operate the auxiliary control
(Hydraulic Pin locking).
Lower boom slowly to
withdraw carriage from
attachment hook plates (B).
Tilt carriage forward to
withdraw lower end of the
carriage from the attachment.
Remove locking pins to release
attachment hydraulic hoses
from the carriage.
Lift and tilt the carriage back, to
align the locking holes. Lower
the Attachment to the ground.
Reverse the machine away
from the attachment.
26 Please see operator manual for full details.
