01 - Machine
09 - Description
15 - Service Point Locations
01 - 23
9813/8300-1
01 - 23

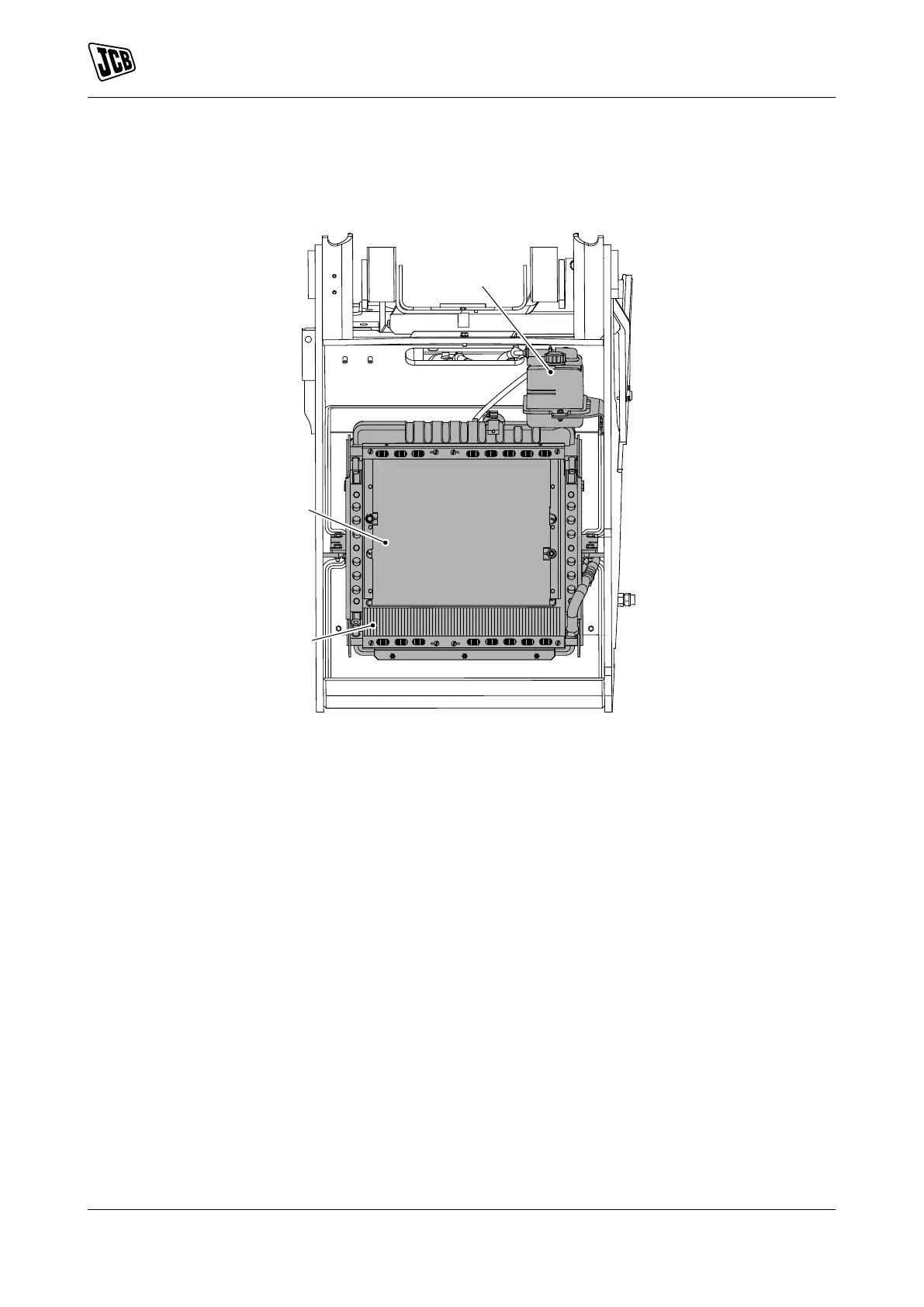

Cooling System
Figure 5.
B
C
A
A
Condenser
B
Coolant expansion tank
C
Oil cooler
28
30
Table of Contents
Table of Contents
5
Acronyms Glossary
6
Safety
9
Safety - Yours and Others
9
Safety Warnings
10
General Safety
11
Maintenance Safety
12
Operating Safety
14
Worksite Safety
16
Risk Assessment
17
Maintenance Positions
18
About this Manual
20
Using the Manual
21
Description
22
General
23
Log Moving/Object Handling
25
Optional Equipment and Attachments
26
Main Component Locations
27
Service Point Locations
28
