About the Product
Operator Station
25 9831/0100-6 25

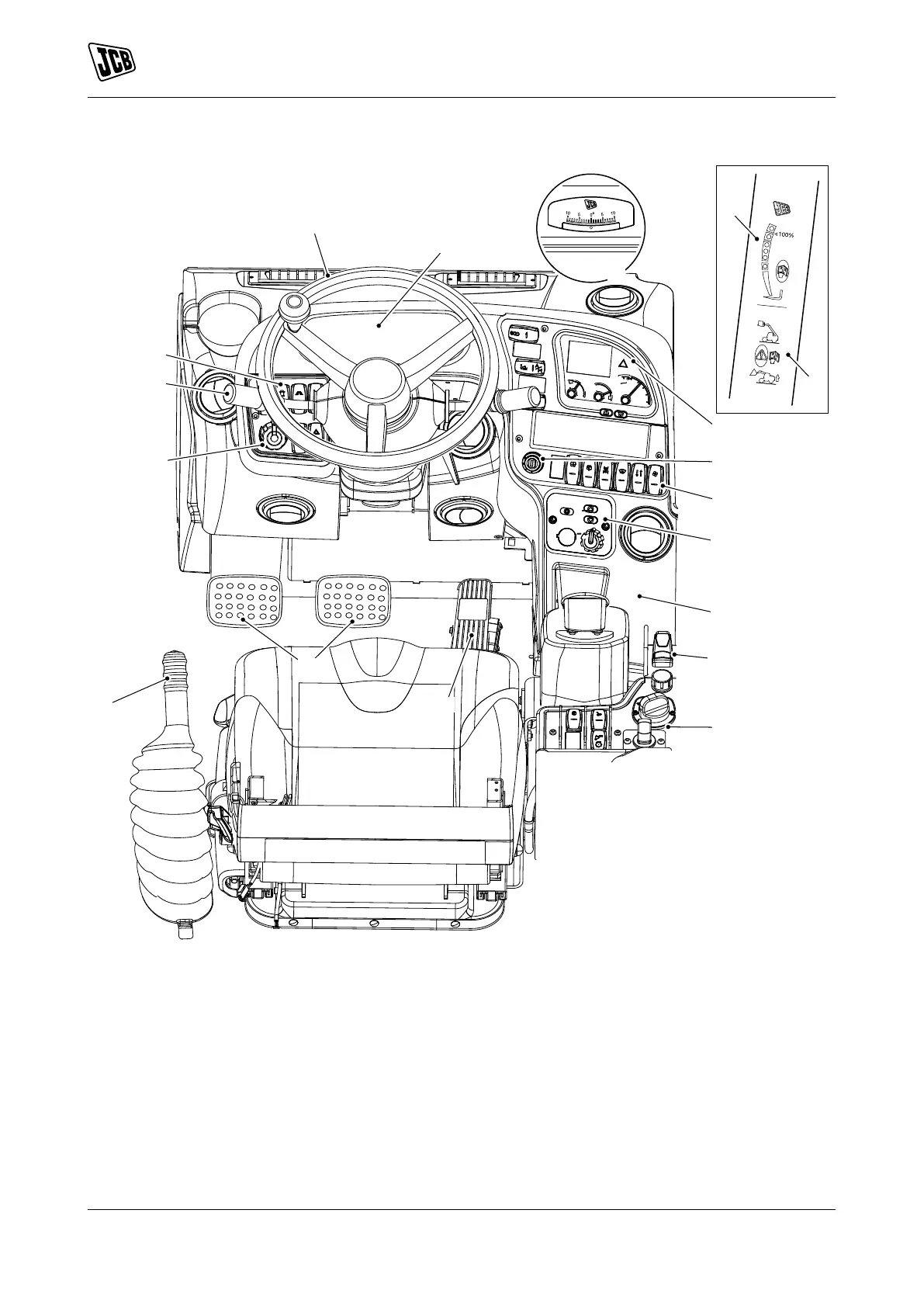

Figure 20.
P
P
N
L
K
U
F
C
B
E
M
A
W
V
D
T
S
R
A Steering wheelRefer to: Steering Wheel
(Page 85).
B Transmission Lever and Gear SelectionRefer to:
Steering Wheel (Page 85).
C Console switchesRefer to: Introduction
(Page 1).
D Steer mode selectorRefer to: Steer Mode
Control (Page 97).
E Service brake/inching pedalRefer to: Service
Brake Pedal (Page 85).
F Park brake leverRefer to: Park Brake
(Page 86).
L HVAC Refer to: Heating, Ventilating and Air-
Conditioning (HVAC) (Page 190).
M Console switchesRefer to: Console Switches
(Page 29).
N Ignition switchRefer to: Ignition Switch
(Page 26).
P Instrument panelRefer to: Instrument Panel
(Page 98).
R Inclinometer S LLMI
T Load control system U Drive pedal
V Hand throttle W Vari-speed controller
