jcb Fastrac 3170 User Manual

Location: Front Lower Crossmember
Nm: 115 kgf m: 12 lbf ft: 85
A401990
2 - 4
Section 1 General Information
9803/8030
Section 1
2 - 4
Issue 2*
Torque Settings

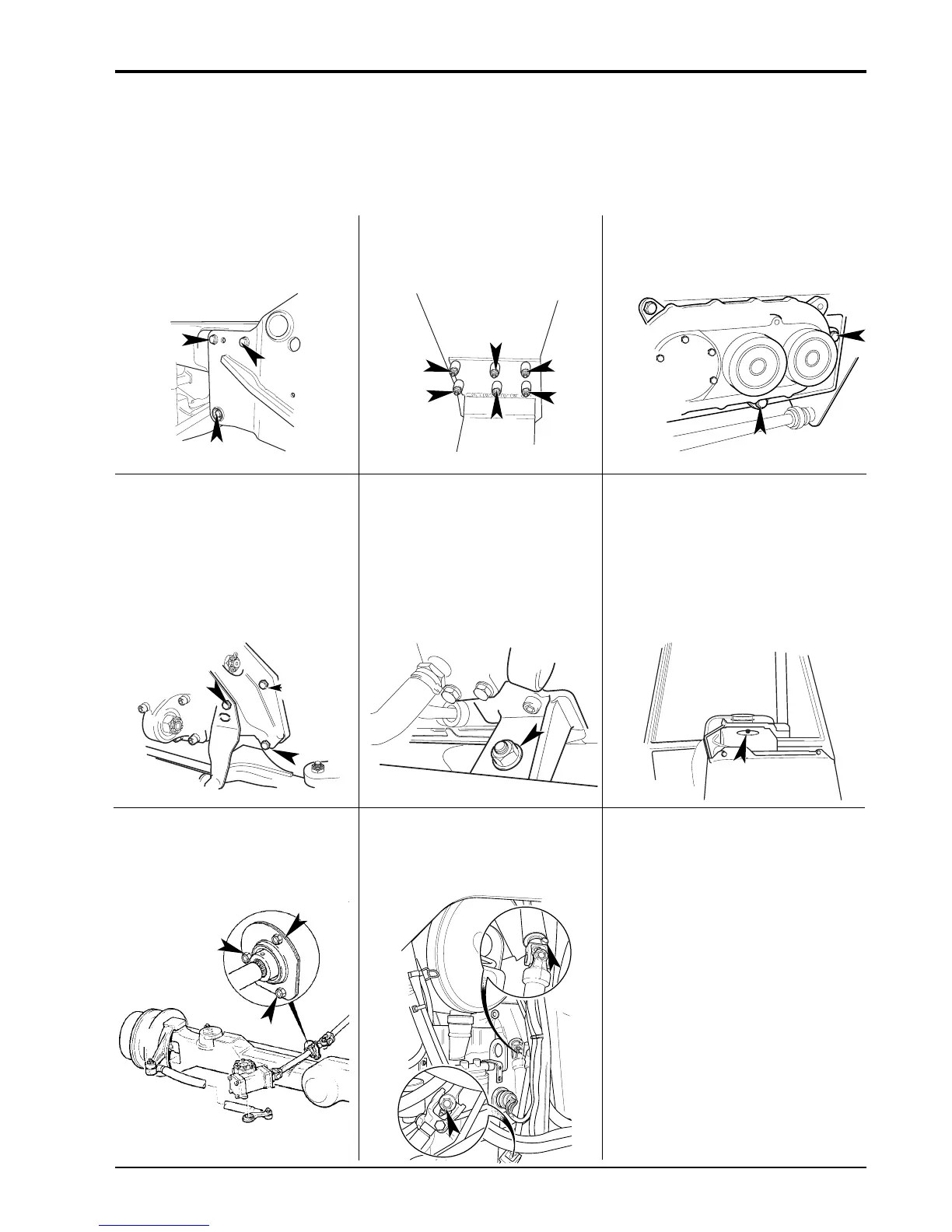

Dacromet Fasteners (mottled silver finish) - List of Torque Settings
This list shows Dacromet fasteners that may not be shown in the other sections of the service manual.
Location: Front Wrapper
(top/bottom)
Nm: 392 kgf m: 40 lbf ft: 289
A402060
Location: Front P.T.O. Box
Nm: 200 kgf m: 20 lbf ft: 148
A402230
Location: Front Axle Upper Arm
Mounting Bracket
8.8 grade bolts:
Nm: 200 kgf m: 20 lbf ft: 148
10.9 grade bolts (all bolts with JCB
Threadlocker and Sealer and with
spacer fitted at bolt B):
Nm: 300 kgf m: 30 lbf ft: 220
Location: Steershaft Bearing
Nm: 28 kgf m: 2.9 lbf ft: 21
Location: Steershaft upper UJ
Nm: 38 kgf m: 3.9 lbf ft: 28
Location: Front Engine Mounting
Nm: 200 kgf m: 20 lbf ft: 148
A402150
Location: Header Tank Clamp Plate
Nm: 30 kgf m: 3 lbf ft: 22
A402290
A402270
B
*
