jcb Fastrac 3190 User Manual

Location: Left Hand Pannier Step
Nm: 47.5 kgf m: 4.8 lbf ft: 35
A402200
2 - 5
Section 1 General Information
9803/8030
Section 1
2 - 5
Issue 1

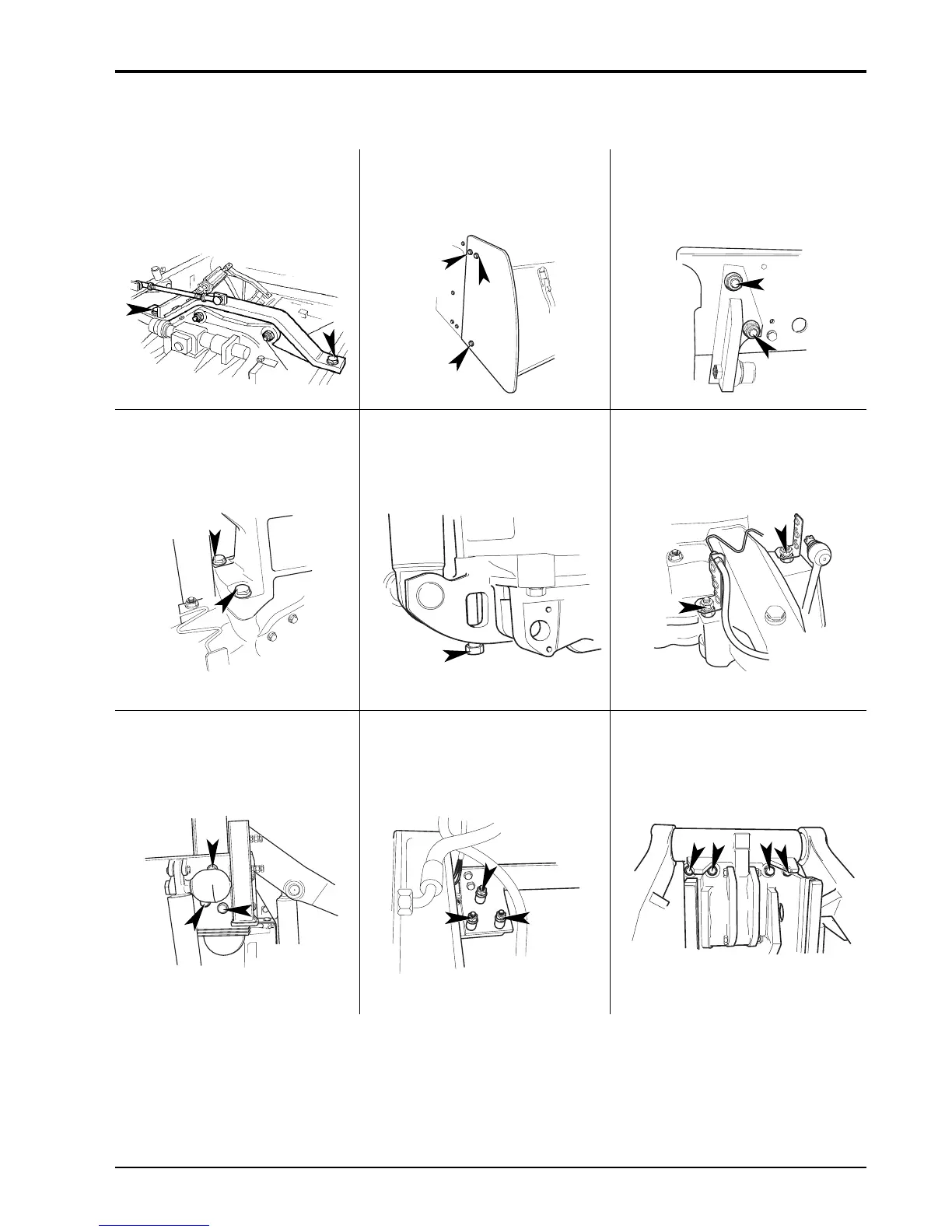

Torque Settings
Dacromet Fasteners (mottled silver finish) - List of Torque Settings (continued)
Location: Lower Link Capscrew
Nm: 654 kgf m: 67 lbf ft: 482
A402140
Location: Tower Casting to Axle
Nm: 392 kgf m: 40 lbf ft: 289
A402010
Location: Rear Lower Crossmember
Nm: 200 kgf m: 20 lbf ft: 148
A402260
Location: Gearbox Crossmember
Nm: 200 kgfm: 20 lbf ft: 148
Location: Rear Anti-Roll bar mounting
bracket
Nm: 392 kgf m: 40 lbf ft: 289
A402120
Location: Rockinger Hitch Bolt
Nm: 392 kgfm: 40 lbf ft: 289
A402030
Location: Rear Crossmember
Nm: 392 kgf m: 40 lbf ft: 289
A402280
Location: Lower Link Bolt (Hex Head)
Nm: 392 kgf m: 40 lbf ft: 289
A402040
