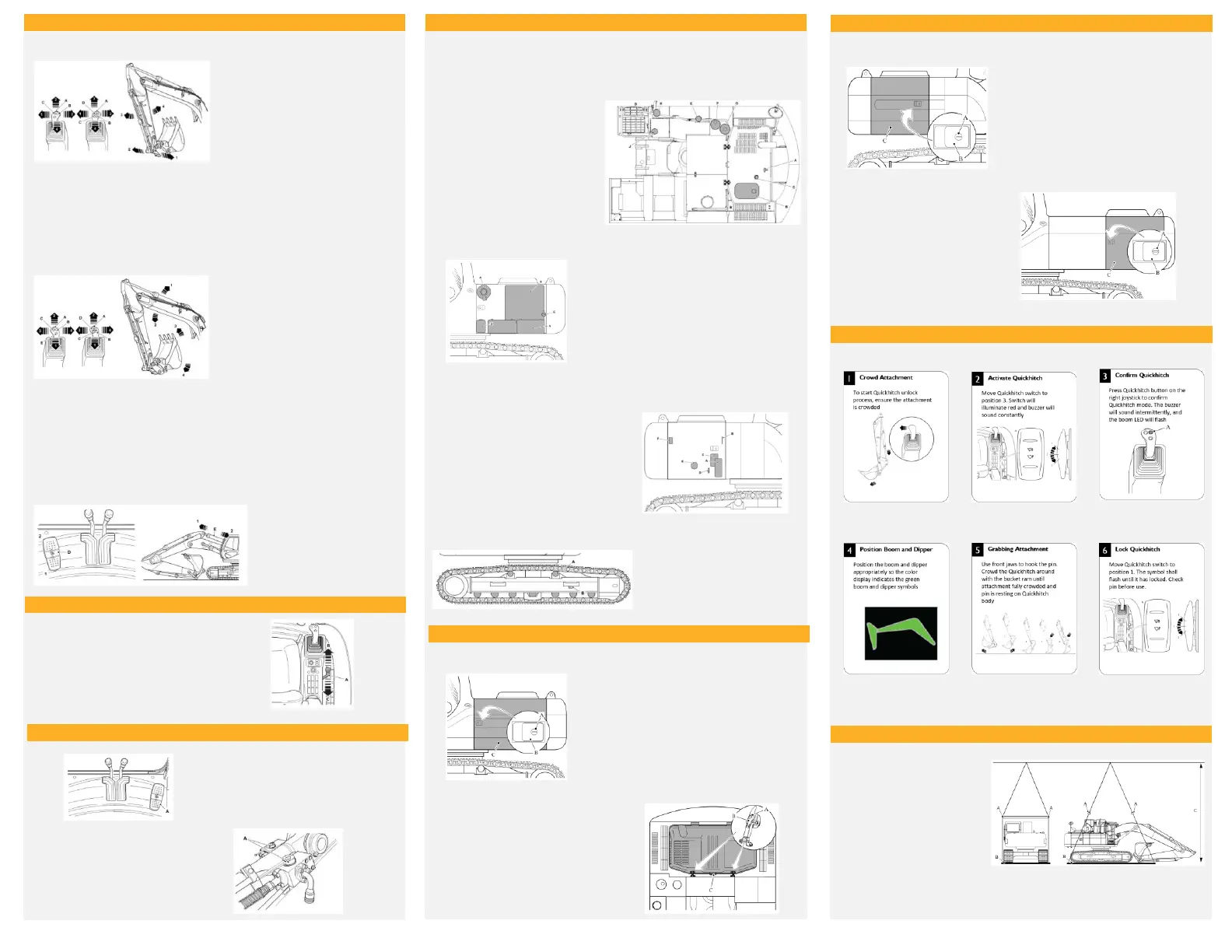

Service Points
Access Covers
Excavator End Controls
Left Joystick (ISO)
1. Slew to the left
2. Slew to the right
3. Move dipper outwards
4. Move dipper inwards
A. Auxiliary hold (proportional control only)
B. Boom/slew priority (if fitted)
C. Horn
D. Proportional auxiliary control high flow (option)
Right Joystick (ISO)
1. Raise the boom
2. Lower the boom
3. Fill the bucket
4. Empty the bucket
A. Power boost
B. Quickhitch
C. One touch idle
D. Proportional auxiliary control low flow (option)
E. Travel speed selector (if fitted)
TAB (option)
A. Pedal
B. Ram
1. Extend the ram
2. Retract the ram
Dozer Blade Controls
A. Control lever
B. Lower the dozer blade
C. Lift the dozer blade
Auxiliary Circuit Controls
A. Auxiliary control pedal
A. Change-over valve
(Bucket to grab option)
Upper Structure
A. Engine oil dipstick
B. Radiator cap & expansion bottle
C. Engine oil filler cap
D. Diesel level indicator
E. Diesel fuel filler cap
F. Hydraulic tank breather
G. Hydraulic oil filler cap
H. DEF filler cap
J. DEF breather filter
Battery Compartment
A. Air intake
B. Radiator(s)
C. Batteries
D. Window washer fluid bottle
E. Battery isolator
A. Main fuel filter
B. Hydraulic oil level indicator
C. Engine fuel filter
D. Fuel tap
E. Engine oil filter
F. Hydraulic oil pilot filter
Hydraulic Compartment
Undercarriage
A. Track rollers
B. Track tensioner
Access Covers
Battery Cover
A. Lock
B. Handle
C. Cover
Engine Compartment Cover
A. Lock
B. Handle
C. Cover
Hydraulic Compartment Cover
A. Lock
B. Handle
C. Cover
Radiator Cover
A. Lock
B. Handle
C. Cover
D. Cap Cover
A. Spacer bars
B. Lifting platform
C. Lifting-hook height
D. Angle = 75°
Lifting the Machine
Hydraulic Hitch Unlock Sequence
