06 - Body and Framework
49 - Step
00 - General
06 - 21 9813/3300-1 06 - 21
00 - General
Remove and Install
CAUTION This component is heavy. It must only
be removed or handled using a suitable lifting
method and device.
Removal
1. Make the machine safe. Refer to PIL (01-03).
2. Remove the screws and washers.
3. Remove the step from the machine body. Two
persons are required to lift the step assembly.

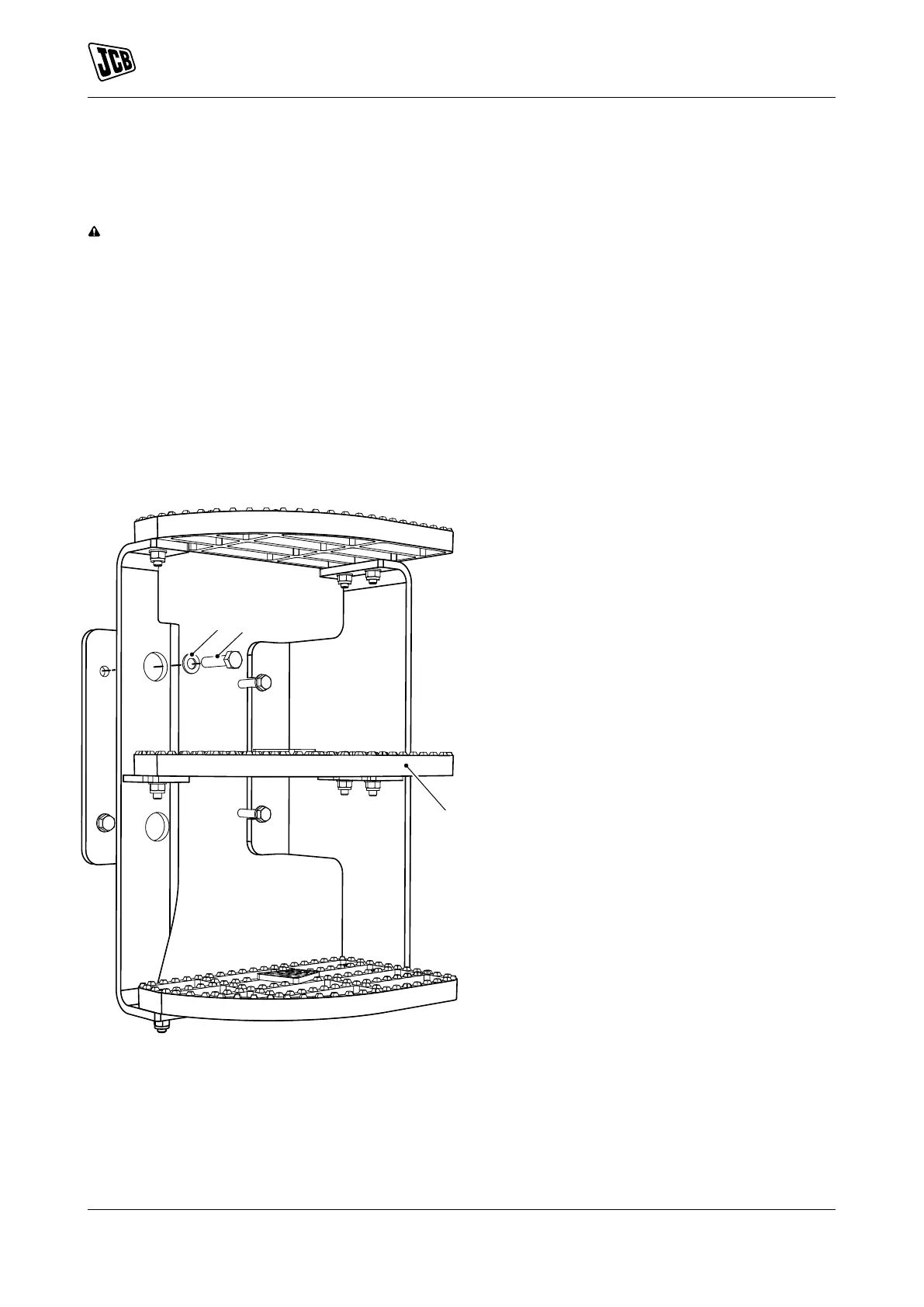

Figure 9.
A Step
B Screw (x4)
C Washer (x4)
Install
1. Support the step assembly and put it in position
against the machine body.
2. Secure the step to the body with screws and
washers.
3. Make sure the step assembly is secure.
