Johnson Controls T701DFN-1 User Manual

70
68
HEAT
70
76
COOL
70
76
68
COOL
HEAT
AUTO
70
OFF
Press
MODE
Press
Press
MODE
MODE
Page 5
The HEAT setting indicates
the temperature that the room
has to fall to before the
heating source will turn
on to heat the room.
Heating Only
The COOL setting indicates
the temperature that the room
has to rise to before the
cooling source will turn
on to cool the room.
Cooling Only
OFF indicates both heating
and cooling are turned off.
Off
AUTO will automatically
select heat or cool based
on room temperature
demand.
Heating or Cooling

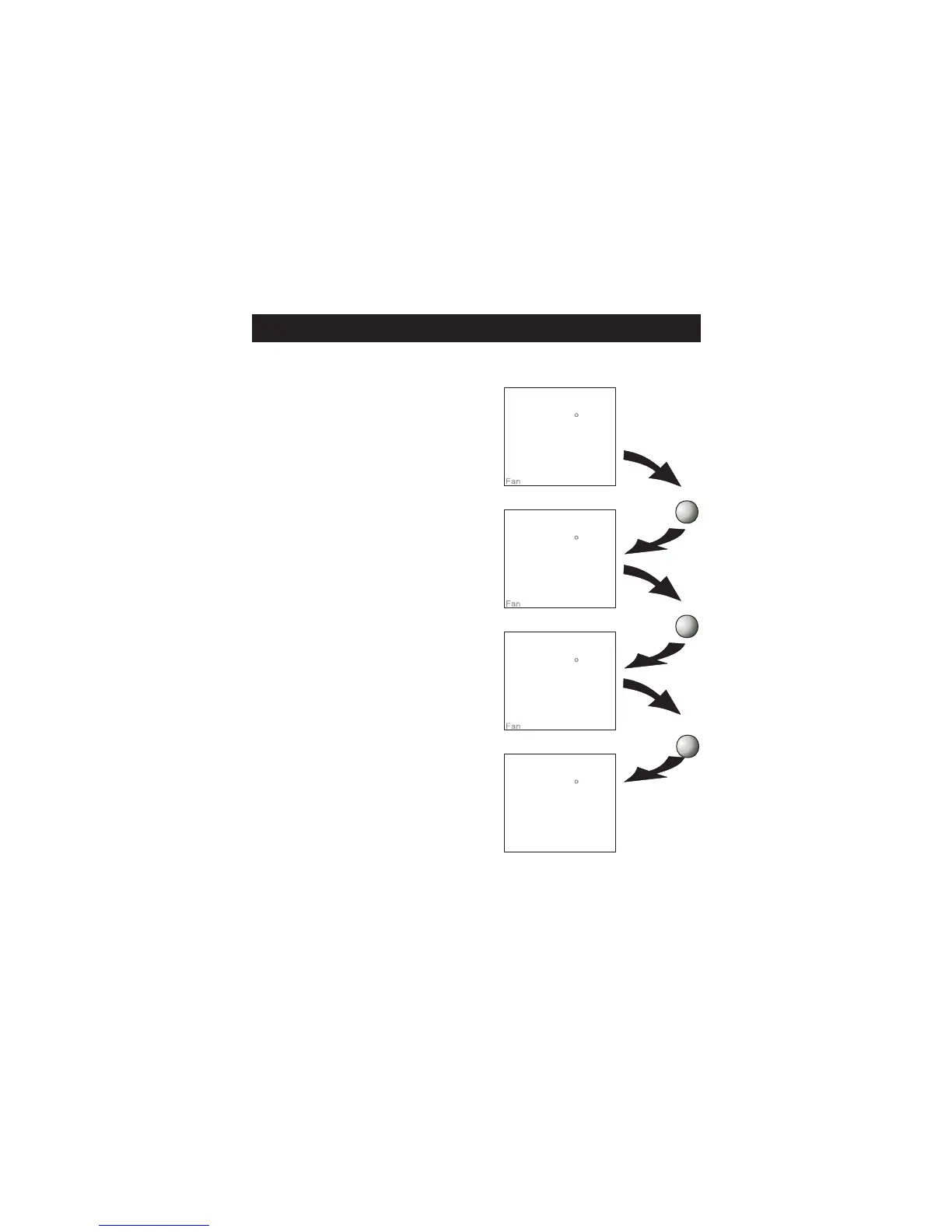

Select Mode by Pressing the MODE Button
Selecting the Heat or Cool Mode 4-Pipe Operation

Johnson Controls T701DFN-1 Specifications

General

Thermostat Type	Digital
Voltage	24 VAC
Programmability	Non-programmable
Stages	1 Heat / 1 Cool
Display	LCD
Mounting	Wall
Fan Control	Auto / On
Backlight	Yes
Communication	Wired
Temperature Range	40°F to 90°F
