– 42 –
(10)

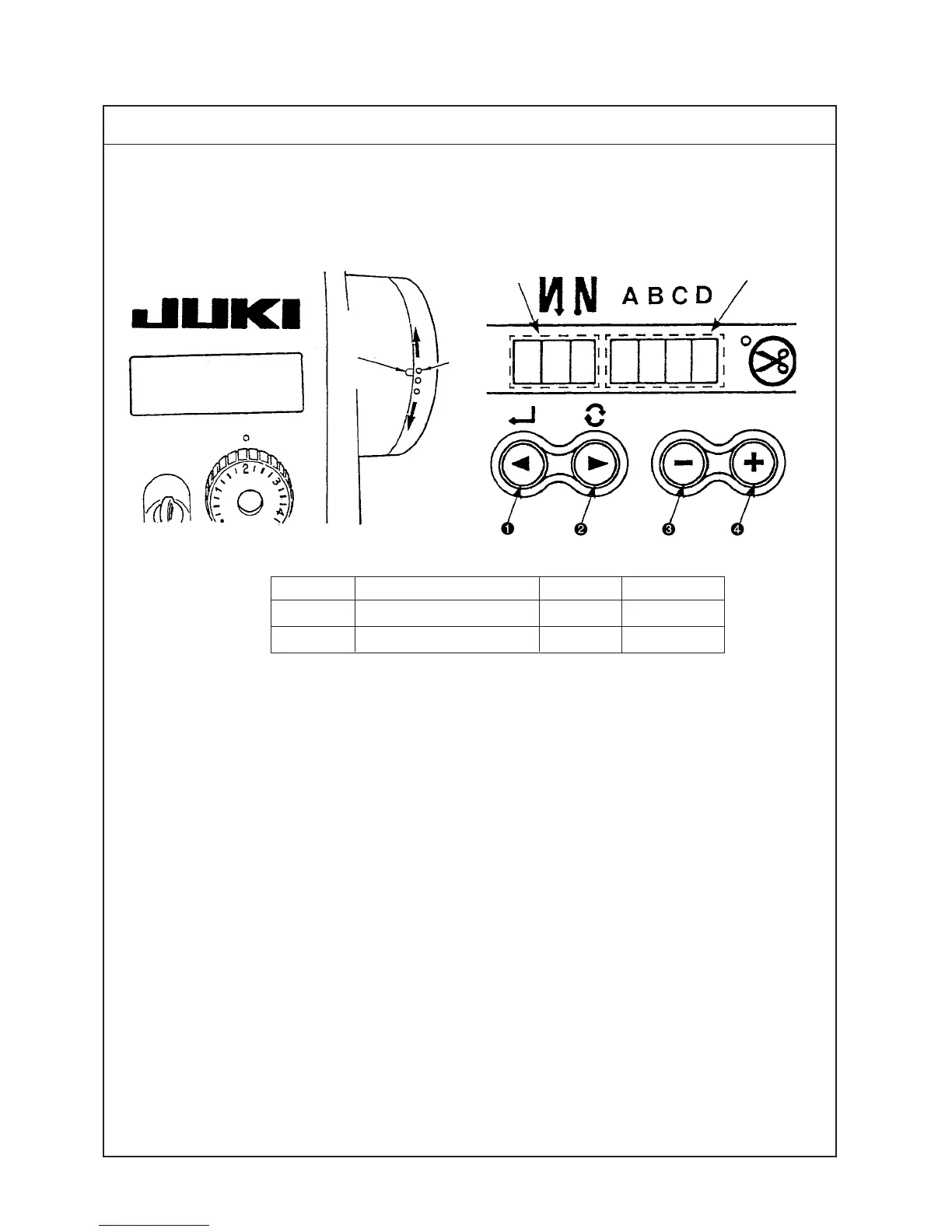

Adjustment of needle stop position
1)
Adjustment of upper stop position (Stop position after thread trimming)
2)
Adjustment of lower stop position
B
A
C
D
E
F
Standard Adjustment
Setup No.
Functions
Standard
Setting range
121
Upper needle stop position
0
–15 to 15
122
Lower needle stop position
0
–15 to 15
45
