– 6 –

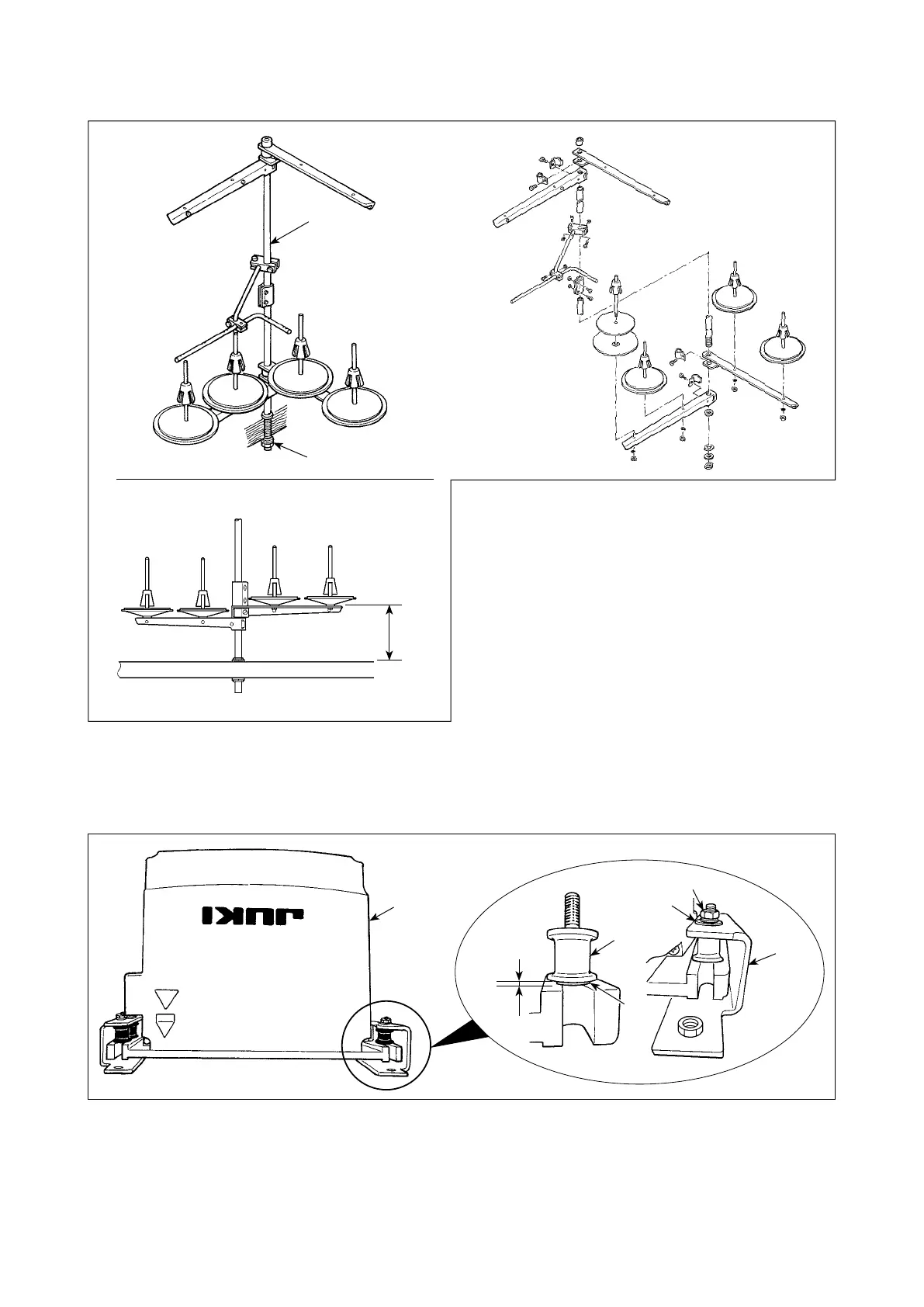

2-4. Installing the thread stand
Assemble the thread stand, set it up on the ma-
chine table using the installation hole in the table
and tighten nut
❶
gently.
When you use power supplied by the overhead
power line, pass the power supply cord through
hollow spool rest rod
❷
.
❷
❶
300 mm from the top
surface of table
2-5. Installing the control box
0.8 mm
❷
❸
❹
❺
❻
❶
1) Secure toothed washer
❷
and vibration-proof rubber
❸
to control box
❶
. (At four locations)
* Tighten the toothed washer until it protrudes the control box surface by 0.8 mm.
2) Secure control box mounting plate
❹
to the control box with plain washers
❺
and nuts
❻
. (At
four locations)
2-5-1. Preparing for installation of the control box
