●With the IP-100D, program stitching and cycle sewing can be set. By using this function, it is
possible to sew labels with constant-dimension sewing or to topstitch welt pockets while
automatically changing over the stitching type from straight stitching to zigzag stitching
according to the number of stitches desired. This contributes to improved working efficiency. In addition, multi-layer sewing, continuous
sewing, one-shot sewing and the beginning point of a scallop pattern can be programmed easily through the operation panel.
●A liquid crystal display has been adopted for the display unit. It displays settings for the stitch
shape, zigzag width and stitch base line position together on one screen with pictographs,
facilitating operation. At the time of creating/modifying a custom pattern, data can be entered
with the shape of the pattern visible on the display, leading to increased efficiency.
●Custom pattern data can be stored using the same SmartMedia that is widely used for
digital cameras.
●Stitch pitch in the normal (to +5) and reverse (to -5) directions
can be set on the panel.
●Display style of the custom pattern can be changed over
between the entire pattern display and partial pattern display.
●Normal/reverse feed amounts are established on the panel. This enables the machine to perform sewing with consistency, preventing
unevenness in the feed amount. Since the sewing conditions are established on the panel, they can be easily restored to a previous setting.
●Reverse feed stitch length can be increased and decreased directly on Reverse Feed Stitching Setting Screen of the peration panel, when the
reverse feed lever is press down. At the corners of labels, the stitch number per inch can be adjusted to sew the corners with consistency.
●For men's garments, the machine is used in processes such as topstitching for welt pockets,
sewing collar cloths and sewing labels. For ladies' garments, it can perform pattern stitching for
the collars and front bodies of jackets and blouses. In addition, original patterns can be created
using the custom pattern feature, enabling the machine to be utilized for a broader range of uses.
●In addition to the conventional eight types and 14 patterns of zigzag stitching, the machine is
able to perform T-shape stitching and covering stitching. As a result, the machine is equipped as
standard with a 14-type and 20-pattern sewing capability. Furthermore, the machine is able to
perform condensation stitching (for reverse feed stitching) at a high speed during sewing to
dramatically increase the operating rate of the facility.
Name of
pattern
Stitch pattern
Straight
stitch
Standard
zigzag
2-step
zigzag
Blind stitch
(left)
Blind stitch
(right)
Custom
pattern
3-step
zigzag
Scallop (left)
Standard Crescent Equal-width Standard Crescent Equal-widthEqual-width
Scallop (right)
Equal-width
Number of
stitches
1 2 4 6
666633
12 2424 12
Max.500
T-shape
stitching (left)
T-shape
stitching (right)
Pattern
stitching 1
Pattern
stitching 2
(fagoting)
Pattern
stitching 3
Pattern
stitching 4
2+a
Topstitching for welt pockets Sewing collar cloths Sewing labels

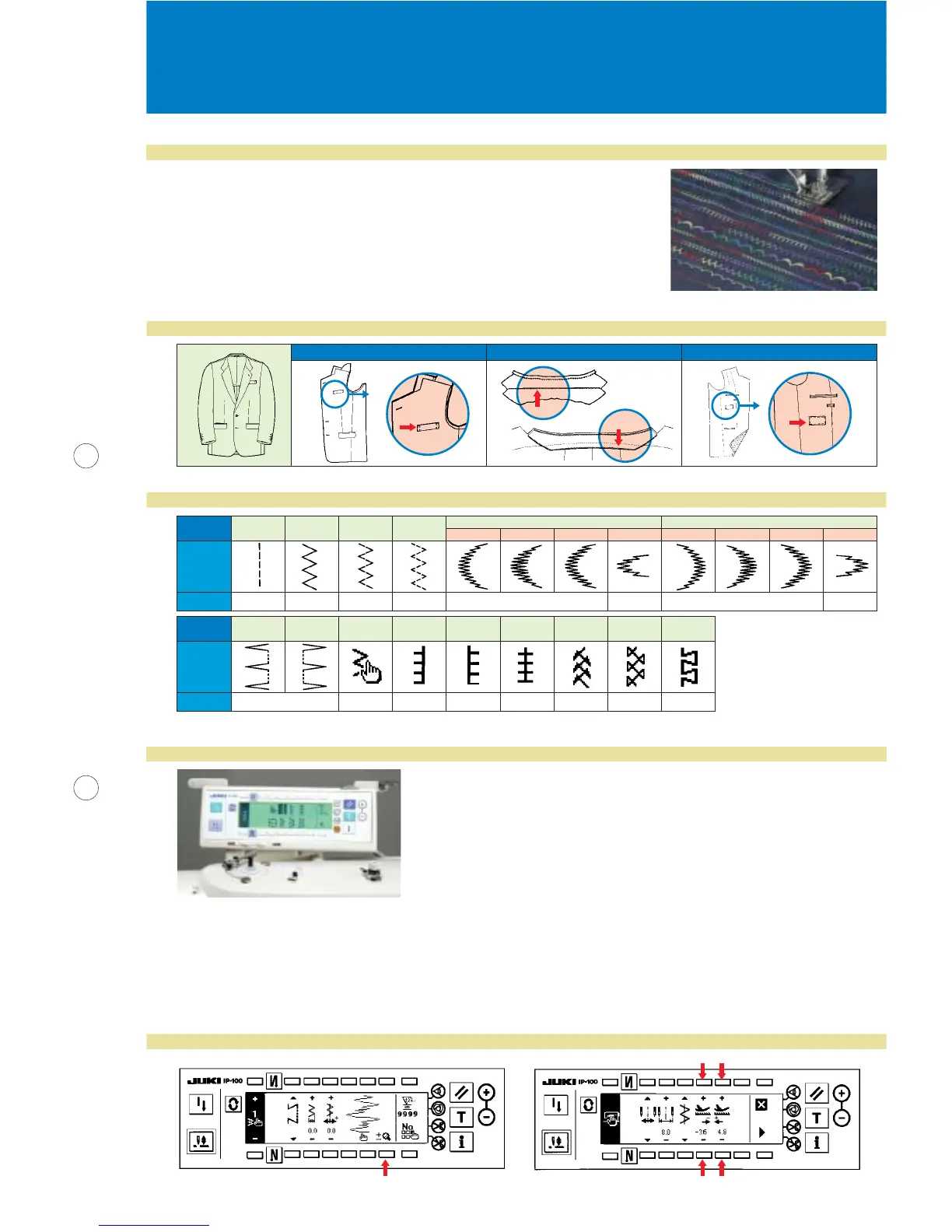

■Exampleofthepatterndisplay

Stitch shape setting screen Setting of the feed amount
■ Themachineisabletoperformavarietyofpatternstitchingtypes.

■Exampleofuse
■Sewingpattern
■
SewingpatternscanbeprogrammedwitheasewiththeIP-100Doperationpanel.

The machine is built around the newly developed LZ-2290A-7 machine head.
In addition to the conventional types of stitching, the machine is able to perform
T-shape stitching and zigzag pattern stitching to broaden its range of applications.
Name of
pattern
Stitch pattern
Number of
stitches
