MP-200N (September, 2003) 1/2
qTopstitching
wBlind edge stitch at
the far side of the
front facing
wBlind edge stitch on
the front body
qTopstitching on the
front pocket mouths
q
w
e
qTopstitching on the
left top-center plait
wSide topstitching
● In addition to balloon-stitching (to produce seams with a hand-stitched touch),
smooth sewing of chain-off stitches, and having other outstanding seam
quality features of the highly regarded Columbia 100, the MP-200N achieves
more improved sewing capabilities and a wider adjustment range.
● The machine comes with a box type feed that permits a split adjustment in
both horizontal and vertical directions, thereby responding to the sewing of
various types of materials. Additionally, the inclination of the feed dog is also
adjustable in accordance to the material.
● Needle gauges support, using replacement parts, stitch widths from as narrow
as 1.2mm to as wide as 5.0mm.
● The applicable range of yarn counts has been widened from #60 to #8 (B33,
Nm = 120/3) for both Tetron and spun thread. This allows the machine to be
used for topstitching a wider range of items.

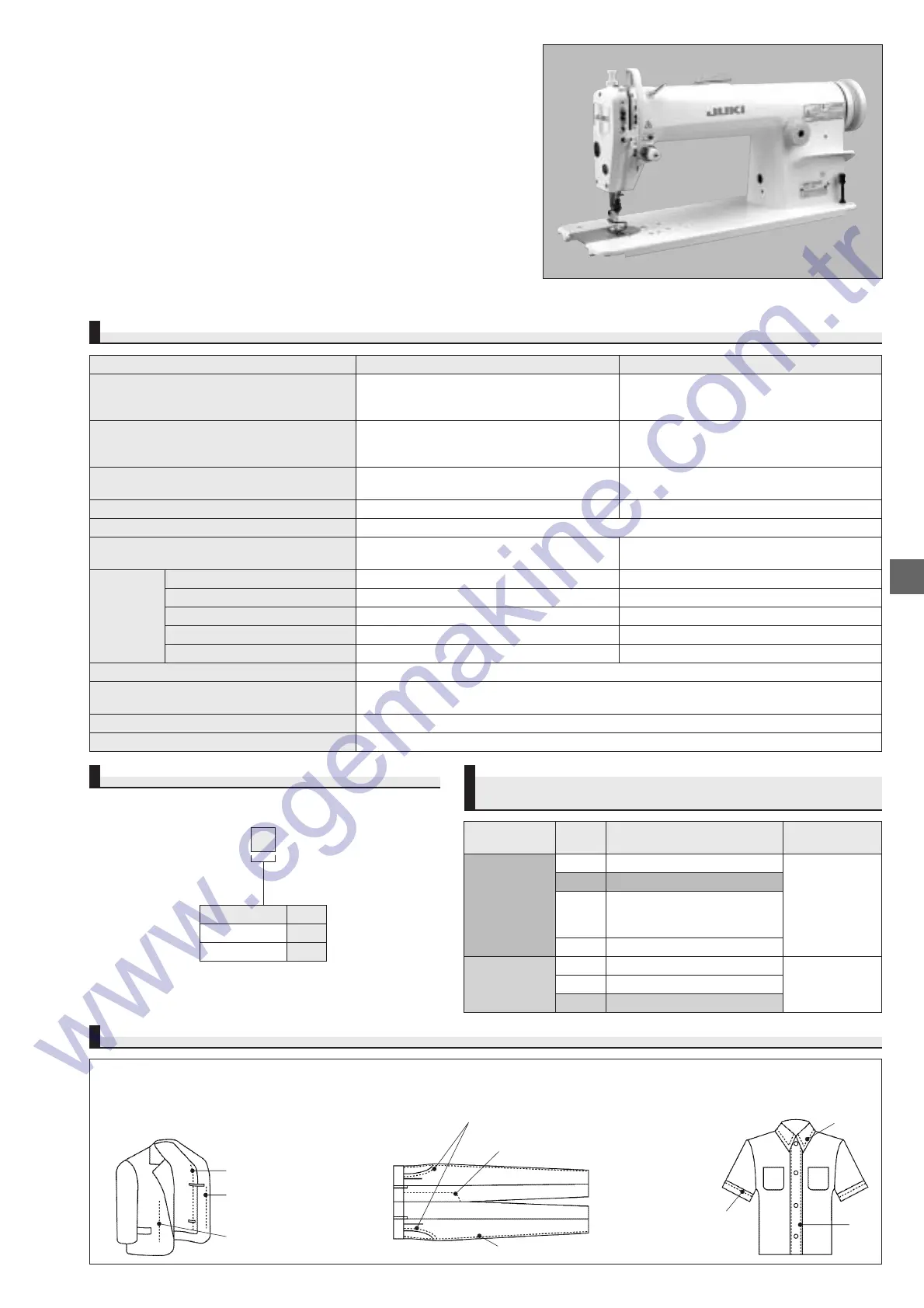

SPECIFICATIONS
Pinpoint Saddle Stitching Machine
MP-200N
WHEN YOU PLACE ORDERS
MP200N
Needle gauge Code
1.6mm S
5.0mm L
MP-200NL
Model name MP-200NS MP-200NL
Max. sewing speed
2,000rpm (feed pitch 6mm or less)
1,500rpm (feed pitch 6〜8mm)
1,500rpm (feed pitch 6〜8mm)
1,200rpm (feed pitch 8〜10mm)
1,200rpm (feed pitch 8〜10mm)
Pinpoint stitch width (needle gauge)
1.6mm
5.0mm(2.0mm: Spacer is required to be changed
with the one supplied with the machine)
Length of thread that appears on the
right side of sewing product (reference)
1.1mm 4.5mm
Feed pitch 3.5〜10mm 10mm (For the needle gauge of 5mm)
Recommended feed pitch 3.5〜10mm (feed pitch that is larger than double of needle gauge is recommended)
Applicable range of gauges
1.2〜2.5mm 3.0〜5.0mm
(for 1.2 and 2.5mm, optional parts are required) (for 3 and 4mm, optional parts are required)
Needle SCHMETZ 29C150 (Nm90) Nm80〜Nm140 ORGAN CP×1J (#22U) #18U〜#22U
Hook-needle SCHMETZ 29C151 (Nm100) Nm80〜Nm140 ORGAN CP×12J (#23) #19〜#30
Recommended thread Tetron・Spun Tetron・Spun
Recommended yarn count #60〜#30, B33〜B46, Nm=120/3〜60/3 #30〜#8, B46〜B92, Nm=60/3〜30/3
Recommended material/process Wool, lining/ facing-topstitching process
Flannel/ topstitching peripheries of collars and pockets
Lift of the presser foot By hand: 5.5mm/By knee: 10.5mm
Split adjustment of feed
(vertical/horizontal direction)
Possible
Lubrication By an oiler
Lubricating oil JUKI New Defrix Oil No.2 (equivalent to ISO VG32)
Needle
(at the time
of delivery)
USES OF PINPOINT STITCHING
Model name
Needle
Gauge
＊
Applicable yarn
gauge count
1.2mm Option
MP-200NS
1.6mm Provided as standard
(Needle gauge
To be replaced with the needle
1.6mm)
2.0mm clamp spacer supplied
with the machine
2.5mm Option
MP-200NL
3.0mm Option
(Needle gauge 4.0mm Option
5.0mm)
5.0mm Provided as standard
＊
Refer to "Replaceable parts of gauges" for a correspondence between gauges and needle gauges.
Tetron, Spun
#60~#30,
B33~B46,
Nm=120/3~60/3
Tetron, Spun
#30~#8,
B46~B92,
Nm=60/3~30/3
WIDER RANGE OF APPLICABLE NEEDLE GAUGES
AND YARN COUNTS
●Men's coats and jackets
qTopstitching on the front facing
wBlind edge stitch at the far side of the front
facing, and blind edge stitch on the front body
(for preventing uneven material feed)
●Trousers
qTopstitching on the front pocket
mouths and left top-center plait
wSide topstitching
●Miscellaneous
qTopstitching on collars of coats,
ladies' cut and sewn garments, knit
shirts, etc.
wTopstitching on the top-
center plaits of coats,
ladies' wear, shirts,
etc.
eVarious kinds of
topstitching on
coats, ladies'
wear, shirts, etc.
