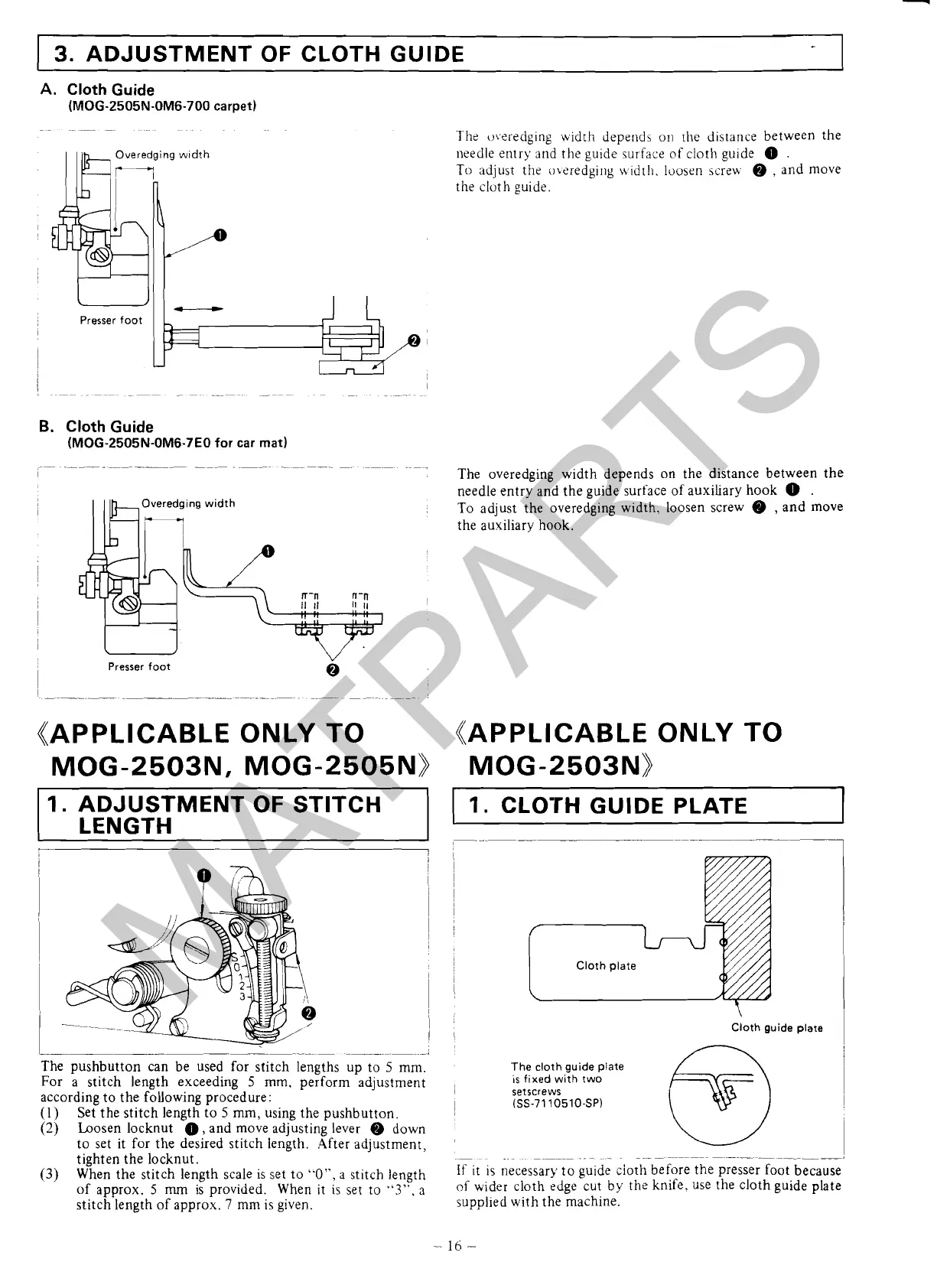

3.
ADJUSTMENT
OF
CLOTH GUIDE
A.
Cloth
Guide
(MOG-2505N-OM6-700
carpet)
Overedging width
The overedging width depends on the distance between the
needle entry and the guide sur-face of cloth guide
0
.
To
adjust the overedgil~g widtll, loosen screw
@
,
and move
the cloth guide.
Presser foot
I
I
B.
Cloth
Guide
(MOG-2505N-OM6-7E0
for car mat)
Overedging width
I
I
Ib,
Presser foot
v
I
0
((APPLICABLE ONLY
TO
MOG-2503N, MOG-2505Nj)
1.
ADJUSTMENT OF STITCH
LENGTH
The overedging width depends on the distance between the
needle entry and the guide surface of auxiliary hook
0
.
To adjust the overedging width. loosen screw
9
,
and move
the auxiliary hook.
((APPLICABLE ONLY TO
MOG-2503Nj)
1.
CLOTH GUIDE PLATE
I
The pushbutton can be used for stitch lengths up to
5
mm.
For a stitch length exceeding
5
mm, perform adjustment
according to the following procedure:
(1)
Set the stitch length to
5
mm, using the pushbutton.
(2)
bosen locknut
0,
and move adjusting lever
@
down
to set it for the desired stitch length. After adjustment,
tighten the locknut.
(3)
When the stitch length scale is set to
"0".
a
stitch length
of approx.
5
mrn
is provided. When it
is
set to
"3",
a
stitch length of approx.
7
mm is given.
Cloth guide
plate
!
The cloth guide
plate
is
fixed with two
setscrews
(SS-7110510-SP)
~
-
..
~
.
.
-
-
~
-
--
.-
->
If
it
is necessary to guide cioth before the presser foot because
of
wider cloth edge cut
by
the knife. use the cloth guide plate
supplied with the machine.
