5
Setting up your TV
Caution
• Turn off all the equipment including the TV before connecting anything.

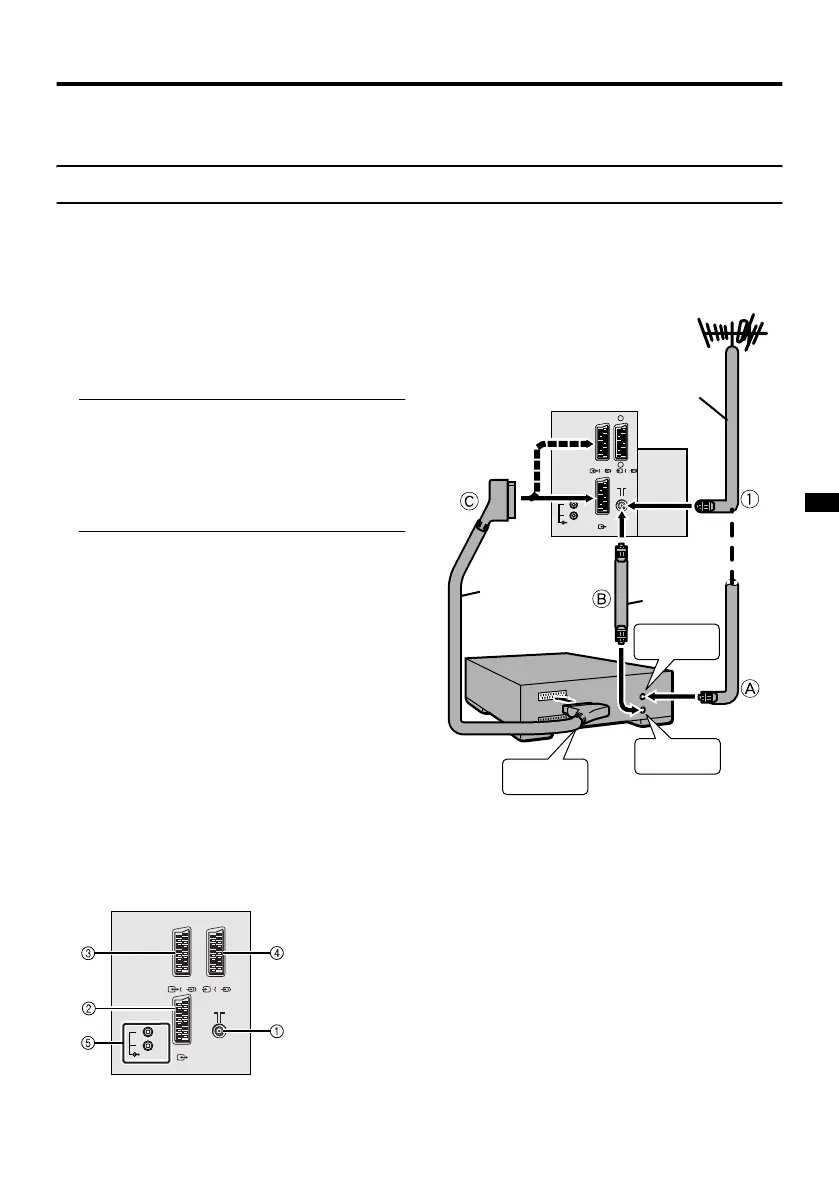

Connecting the aerial and video cassette recorder (VCR)
• The connecting cables are not provided.
• For further details, refer to the manuals provided with the devices to be connected.
If you are connecting a VCR,
follow A
AA
A →
→→
→ B
BB
B →
→→
→ C
CC
C →
→→
→ D
DD
D in the
diagram opposite.
If you are not connecting a VCR,
follow 1
11
1.
To use the T-V LINK functions, you must
have a T-V LINK compatible VCR
connected by a SCART cable C to the EXT-
2 terminal on the TV. For details about T-V
LINK functions, see “T-V LINK functions”
on page 8.
• You can watch a video using the VCR
without doing C. For details, see your
VCR instruction manual.
• To connect more equipment, please see
“Additional preparation” on page 34.
• To connect external speakers and an audio
system, please see “Connecting speakers/
amplifier” on page 35.
• If you connect a decoder to a T-V LINK
compatible VCR, set the DECODER
(EXT-2) function to ON. For details, see
“Using the DECODER (EXT-2)
function” on page 32.
Otherwise, you will not be able to watch
scrambled channels.
Rear Panel
1 Aerial socket (page 5)
2 EXT-1 terminal (pages 5, 22, 34)
3 EXT-2 terminal (pages 5, 8, 22, 34)
4 EXT-3 terminal (pages 22, 34)
5 AUDIO OUT terminal (page 35)
EXT-2
EXT-1
EXT-3
S S
VCR
R
AUDIO OUT
L
75-ohm
Coaxial
Cable
21-pin
SCART
Cable
Back of the TV
AV IN/OUT
Terminal
To Aerial
Output
To Aerial
Input
Aerial
75-ohm
Coaxial
Cable
EXT-1
EXT-2
S
EXT-3
S
R
AUDIO OUT
L
AV-32&28T67SKE.fm Page 5 Thursday, February 6, 2003 10:33 AM
To Next Page
