JVC DD-9 A User Manual

DD-9A/B/C/E/J/U

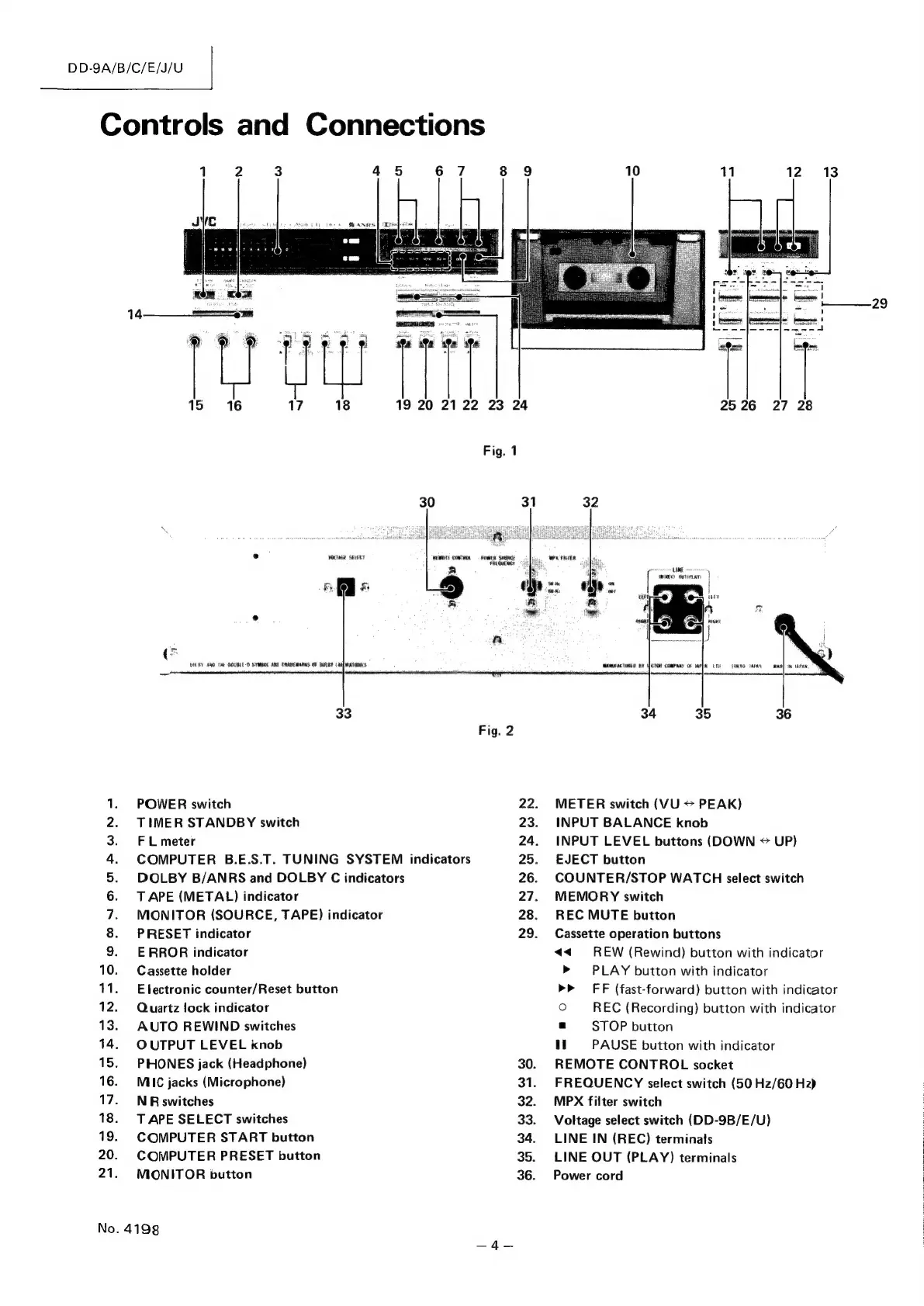

Controls and Connections
aa ie $e
Fig. 1
30
e VOLTAGE SELECT
nfs
REMOTE CONTROL — ROWER SOURCE
( m
UOLRY AND ONE DOUBLED SUMBOL ARI TRADEMARKS GF DALEY At RATORI'S
ca 2 Ainianantenintinmmanntr eT itferntmeenttnntin te
33
Fig. 2
1. POWER switch
2. TIMER STANDBY switch
3. FL meter
4. COMPUTER B.E.S.T. TUNING SYSTEM indicators
5. DOLBY B/ANRS and DOLBY C indicators
6. TAPE (METAL) indicator
7. MONITOR (SOURCE, TAPE) indicator
8. PRESET indicator
9. ERROR indicator
10. Cassette holder
11. Electronic counter/Reset button
12. Quartz lock indicator
13. AUTO REWIND switches
14. OUTPUT LEVEL knob
15. PHONES jack (Headphone)
16. MIC jacks (Microphone)
17. NRswitches
18. TAPE SELECT switches
19. COMPUTER START button
20. COMPUTER PRESET button
21. MONITOR button
No. 4198
19 20 21 22 23 24
31
ereouENEY ©) J 25
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
32.
33.
34.
35.
36.
25 26 27 28
WANUFACTURED 8Y 3) CTOR CoMPamy OF IAPLN LTH FORTO APRN AD] IN PAN,
en
METER switch (VU @ PEAK)
INPUT BALANCE knob
INPUT LEVEL buttons (DOWN « UP)
EJECT button
COUNTER/STOP WATCH select switch
MEMORY switch
REC MUTE button
Cassette operation buttons
<<) REW (Rewind) button with indicator
> PLAY button with indicator
>> FF (fast-forward) button with indicator
fe) REC (Recording) button with indicator
. STOP button
| PAUSE button with indicator
REMOTE CONTROL socket
FREQUENCY select switch (50 Hz/60 Hz)
MPX filter switch
Voltage select switch (DD-9B/E/U)
LINE IN (REC) terminals
LINE OUT (PLAY) terminals
Power cord
|
