JVC KD-2A User Manual

KD-2A/B/C/E/J/U
Features
Full auto stop.
Dual ball cassette holder
Automatic selector of stereo/mono for MIC record.
Built-in headphone volume.
Input select switch
* Compact and feather portable type.
* Power-saving design.
* Coreless motor.
* Built-in ANRS and Super ANRS.
* Sen-alloy head.
+ + + H

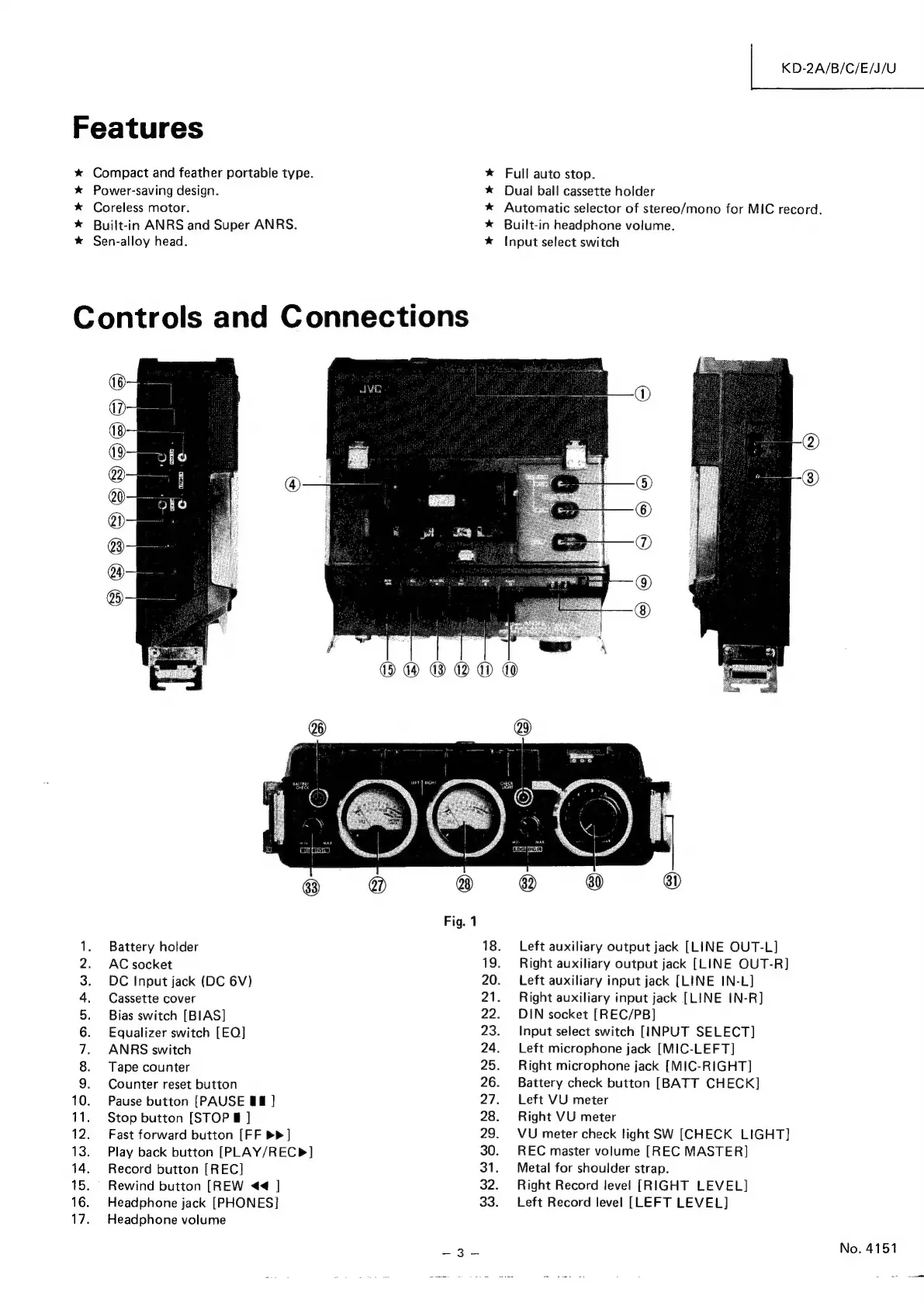

Controls and Connections
2 ®8888Oa0q8
1. Battery holder 18. Left auxiliary output jack [LINE OUT-L]
2. ACsocket 19. Right auxiliary output jack [LINE OUT-R]
3. DC Input jack (DC 6V) 20. Left auxiliary input jack [LINE IN-L]
4, Cassette cover 21. Right auxiliary input jack [LINE IN-R]
5. Bias switch [BIAS] 22. DIN socket [REC/PB]
6. Equalizer switch [EQ] 23. Input select switch [INPUT SELECT]
7. ANRS switch 24. Left microphone jack [MIC-LEFT]
8. Tape counter 25. Right microphone jack [MIC-RIGHT]
9. Counter reset button 26. Battery check button (BATT CH ECK]
10. Pause button [PAUSE @ff ] 27. Left VU meter
11. Stop button [STOP Bf J 28. Right VU meter
12. Fast forward button [FF »P ] 29. VU meter check light SW [CHECK LIGHT]
13. Play back button [PLAY/RECP] 30. REC master volume [REC MASTER]
14. Record button [REC] 31. Metal for shoulder strap.
15. Rewind button [REW << ] 32. Right Record level [RIGHT LEVEL]
16. Headphone jack [PHONES] 33. Left Record level [LEFT LEVEL]
17. Headphone volume
No. 4151
